Blower Motor: Service and Repair

Removal
1. Disconnect the battery ground cable.





2. Remove the cover.

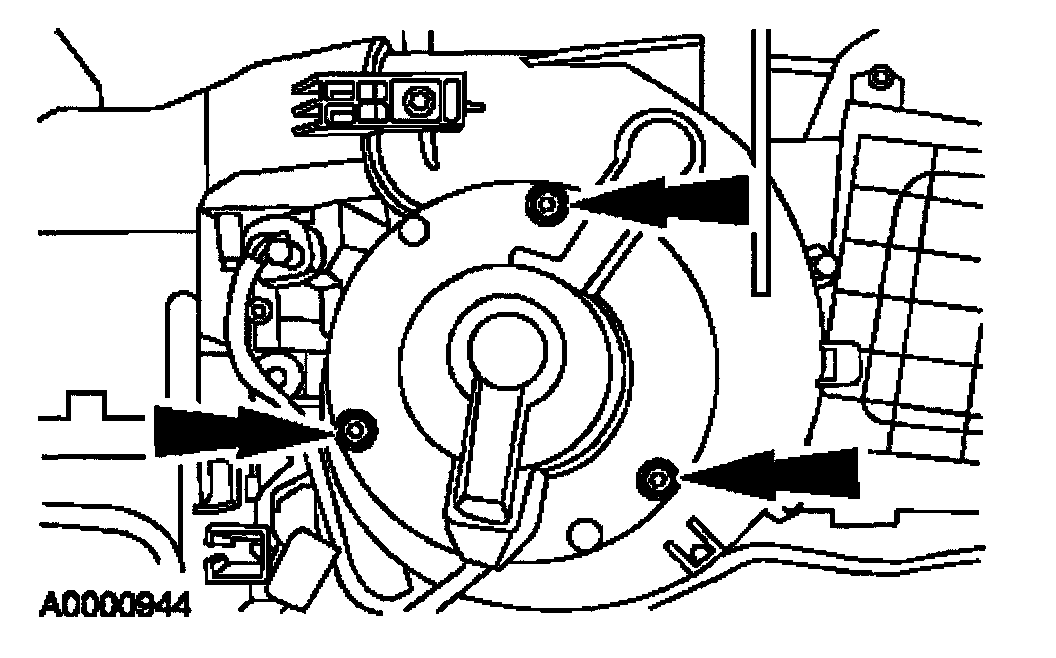

3. Remove the blower motor.

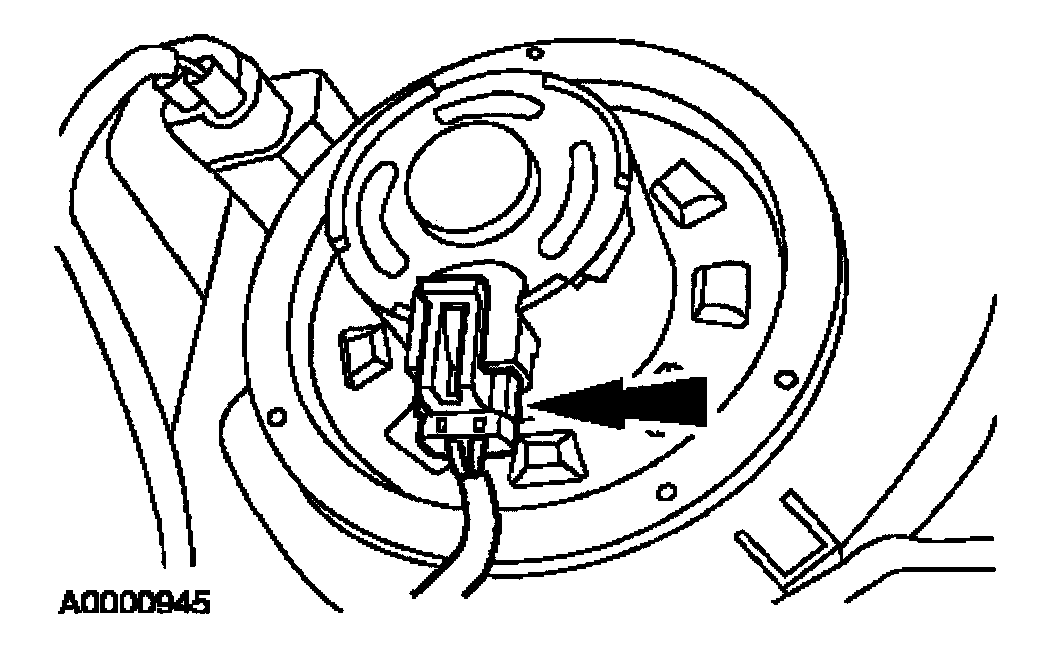

- Disconnect the electrical connector.





4. Remove the wheel from the blower motor.
1. Remove the push clip.
2. Remove the wheel from the blower motor.

CAUTION: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting diameter.

Installation
1. To install, reverse the removal procedure.
