Crash Sensor - Front 76.73.55

Removal
1. Disconnect the battery ground cable.







2. Remove the radiator upper support panel.

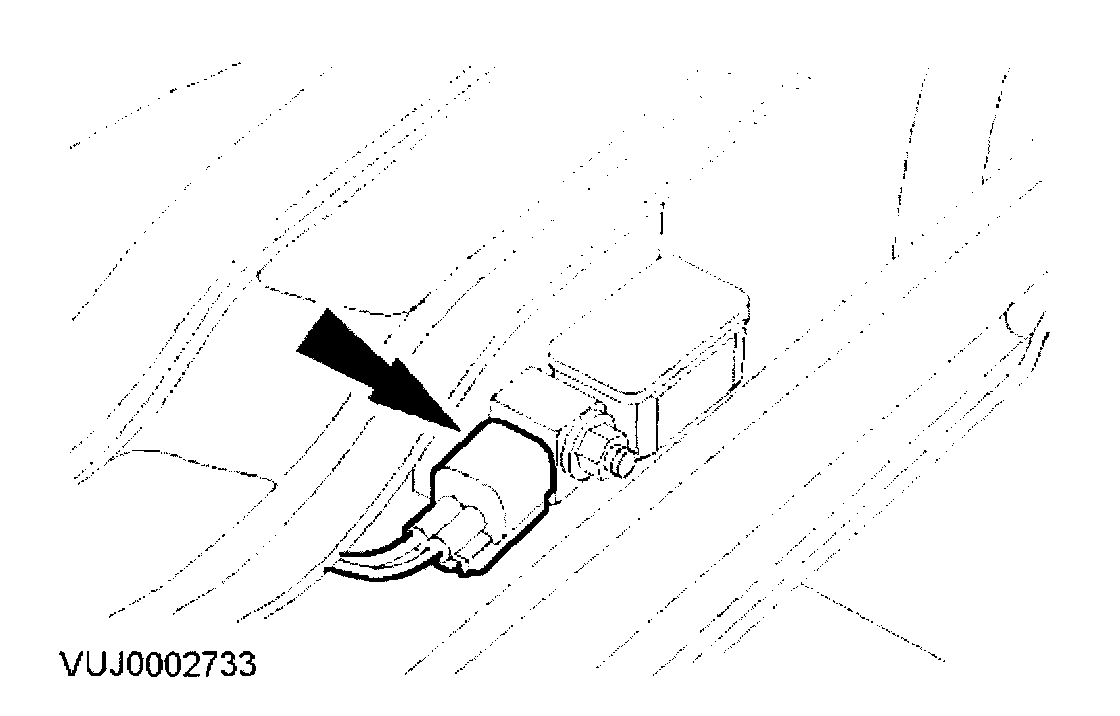

3. Disconnect the crash sensor electrical connector.







4. Remove the crash sensor.

Installation







1. To install, reverse the removal procedure.
- Tighten to 12 Nm.
2. Carry out the battery reconnection procedure.
