Ignition System

Powertrain Control Module Harness Connector:

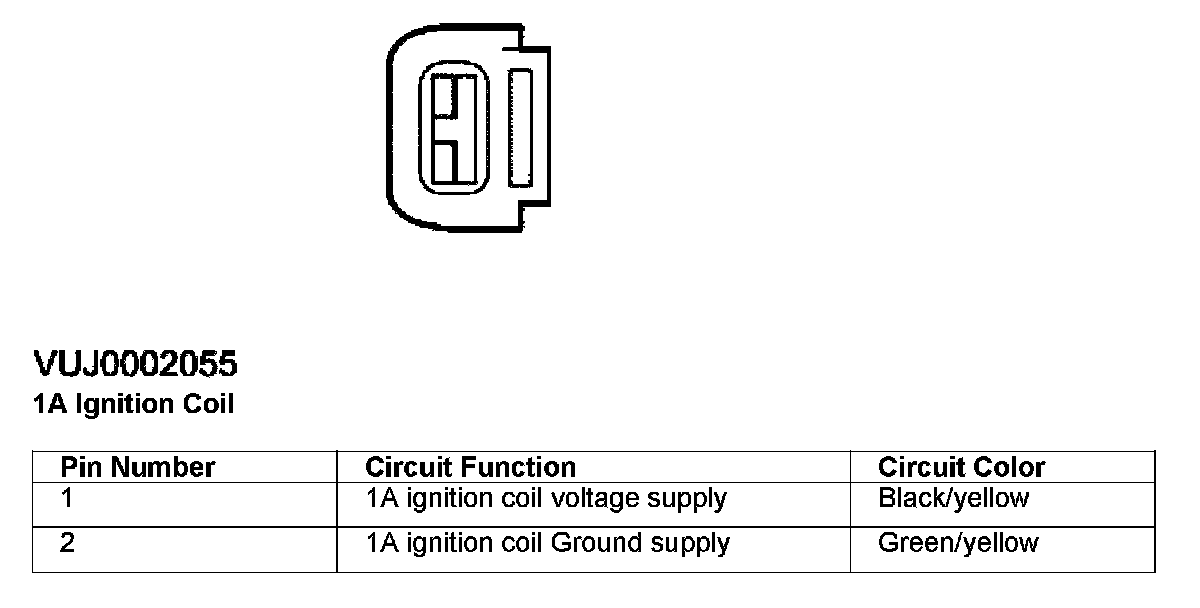

1A Ignition Coil:

2A Ignition Coil Harness Connector:

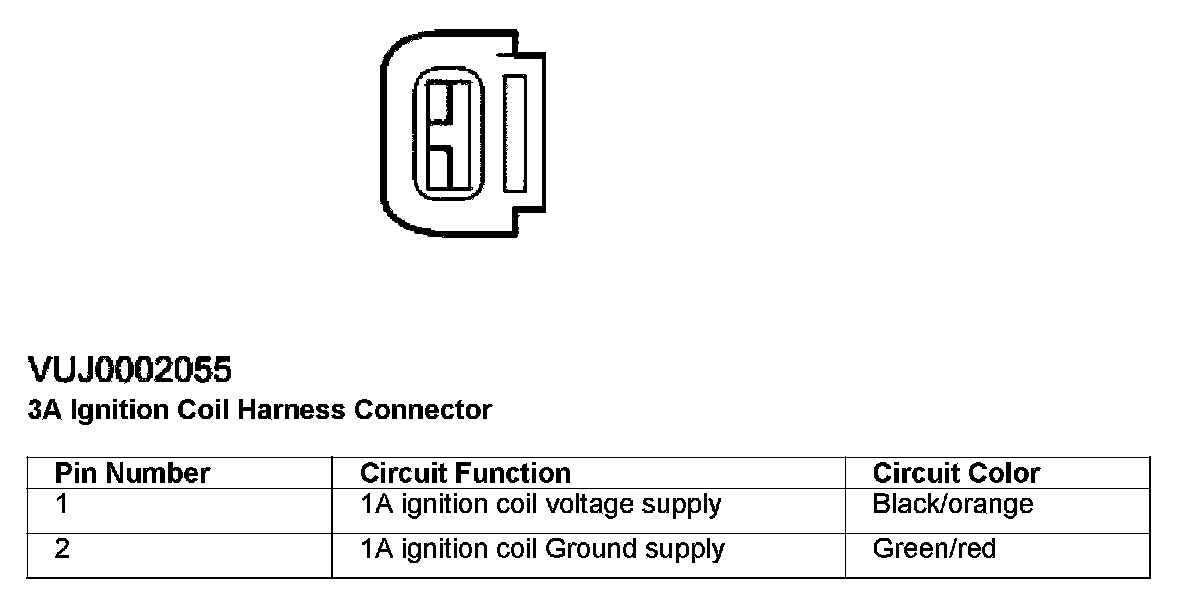

3A Ignition Coil Harness Connector:

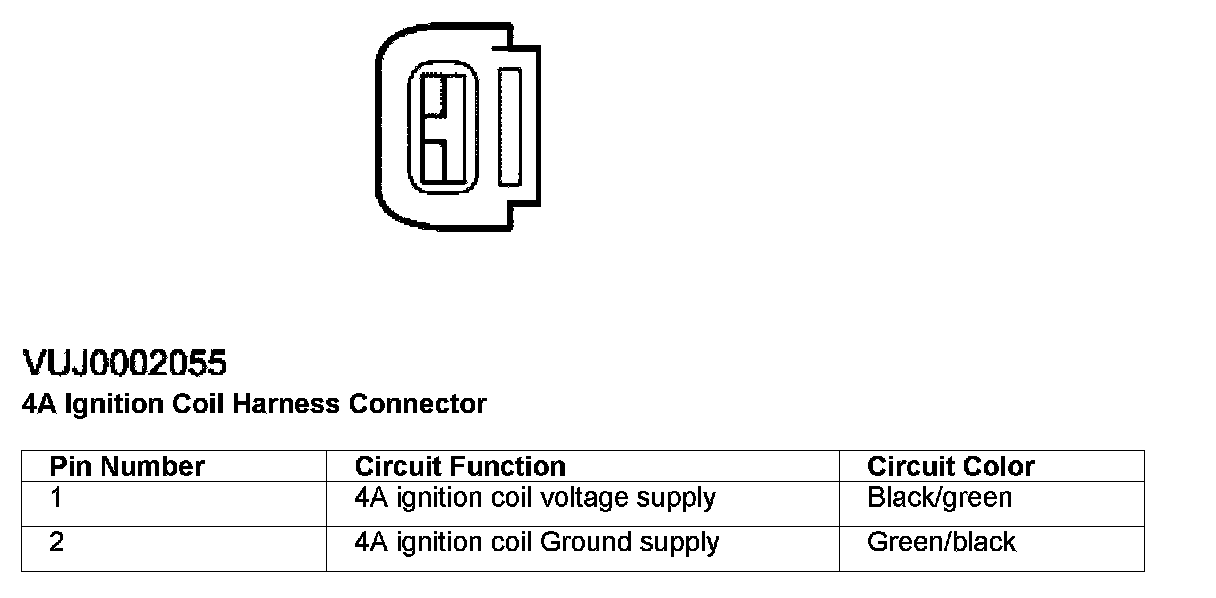

4A Ignition Coil Harness Connector:

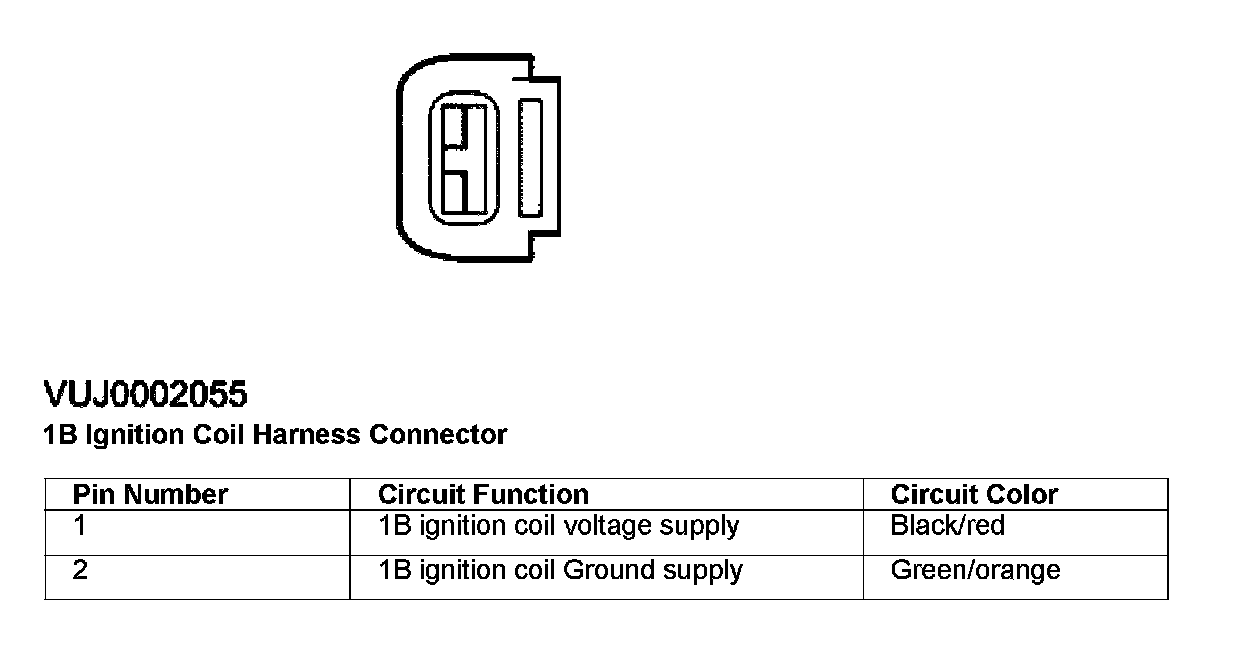

1B Ignition Coil Harness Connector:

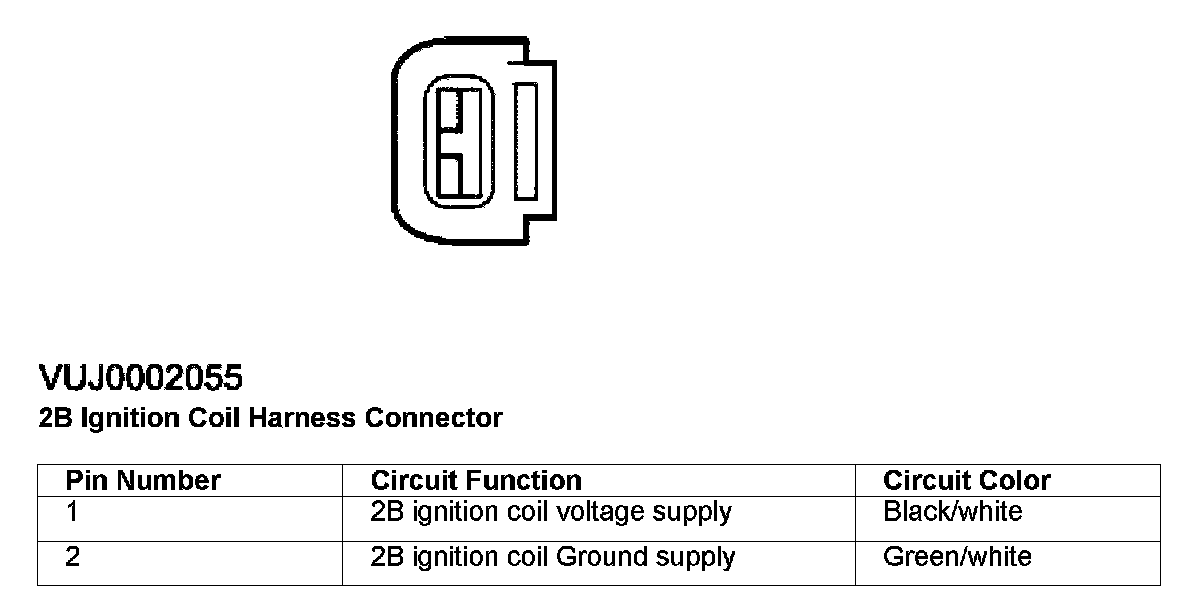

2B Ignition Coil Harness Connector:

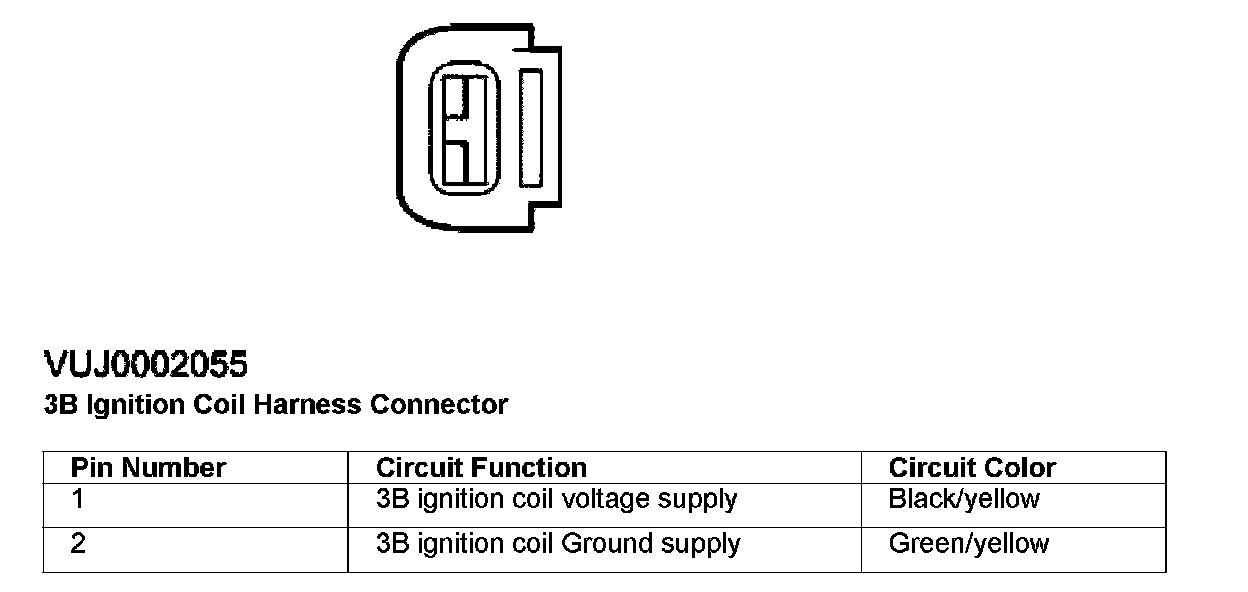

3B Ignition Coil Harness Connector:

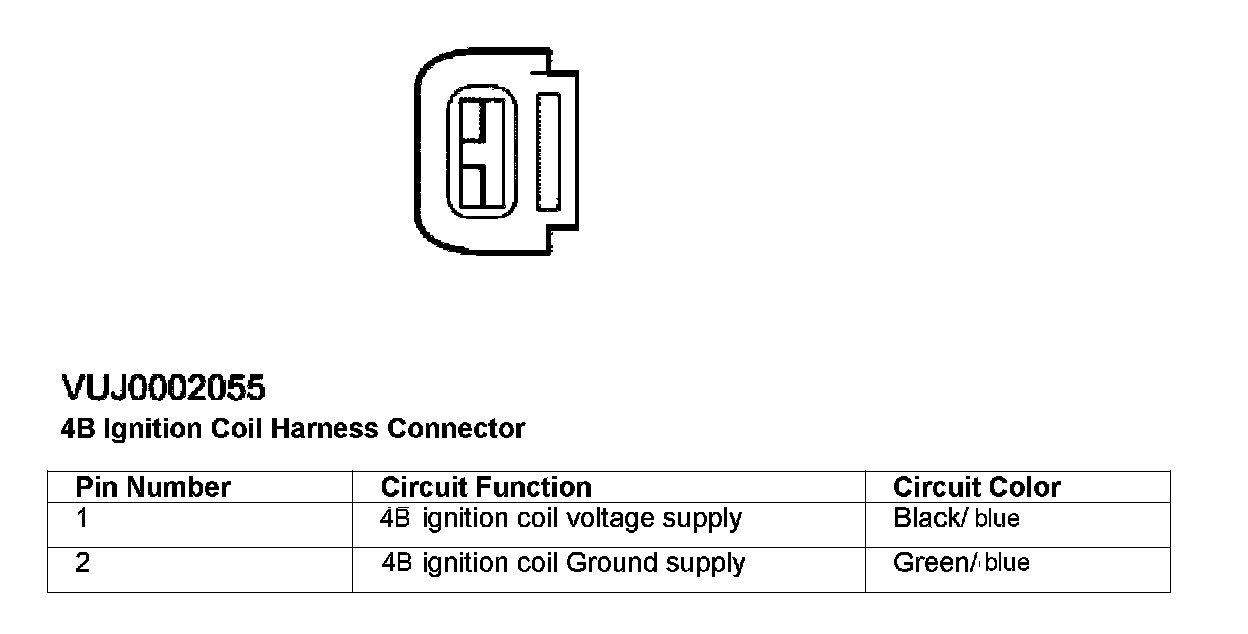

4B Ignition Coil Harness Connector:
