User Instructions

User Instructions

Figure and Data Layout

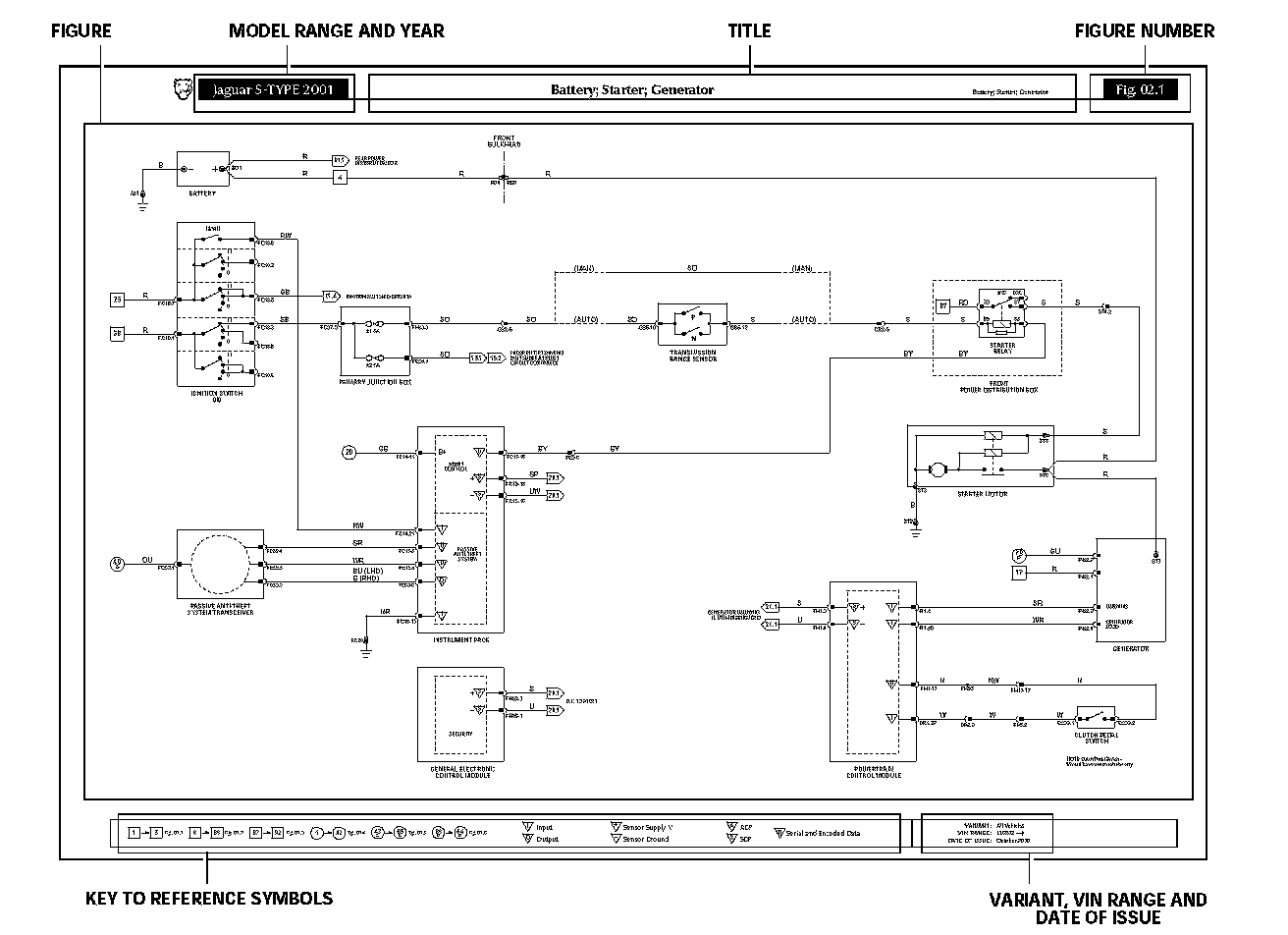

Figure







Each Figure represents a specific electrical system of the vehicle. The Figures are arranged numerically by system (01 - Power Distribution, 02 - Battery; Starter; Generator, etc.) with variations in the system identified by a numeral following a decimal point (01.1, 01.2, etc.). Refer to Diagrams/Electrical for a complete list of the Figures. Diagrams By Figure Number

The Figures 01 - Power Distribution detail the distribution of power to each of the systems. Numbered reference symbols refer the user to a specific Figure and from a specific Figure back to the Power Distribution Figures. This method eliminates the need to include detailed Power Distribution information on each of the Figures. The reference symbols are defined. Symbols and Codes

Control Module Pin-Out Information:

Components:

Harness In-line Connectors And Junction Connectors:

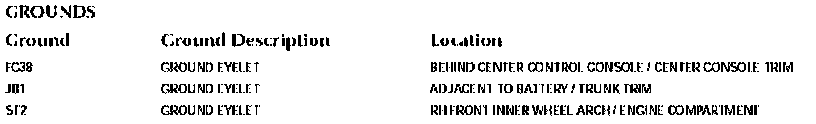

Grounds:

This information is included to assist the user in identifying and locating components, connectors and grounds.

When network data is required for the understanding of a particular circuit, the user is directed to the Abbreviations and Acronyms Abbreviations and Acronyms or SCP Messages. SCP Messages

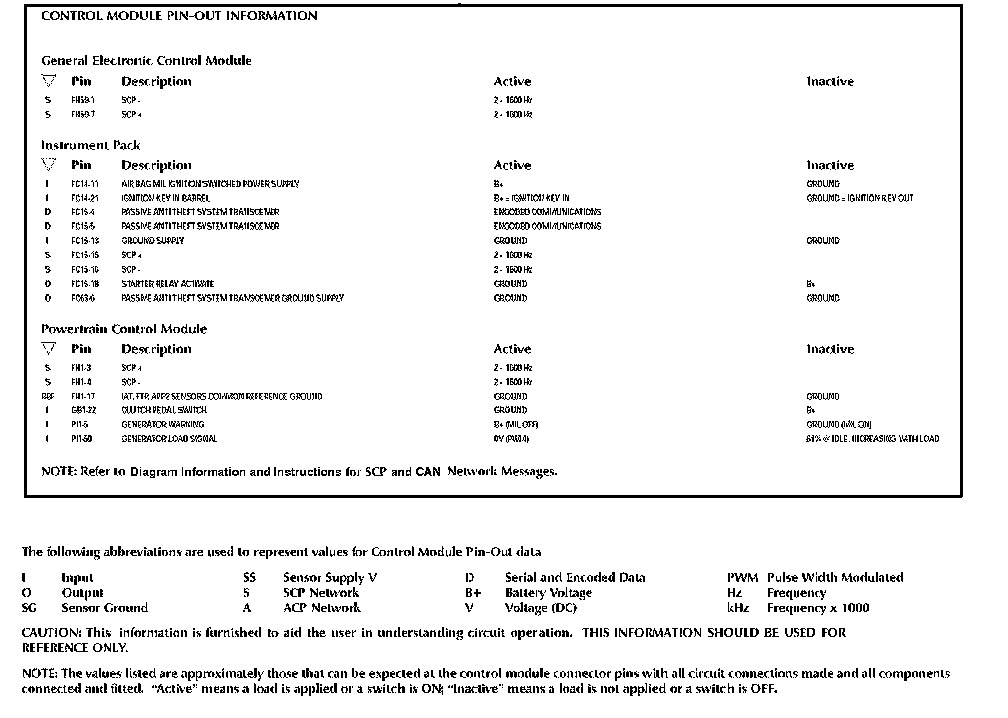

Where circuits include a Control Module, Pin Out information is provided with values for active and inactive states. The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components connected and fitted. Active means a load is applied or a switch is ON; inactive means a load is not applied or a switch is OFF. This information is provided to assist the user in understanding circuit operation and should be used FOR REFERENCE ONLY.
