Fig 01.5
Fig 01.5
Switched System Power Distribution

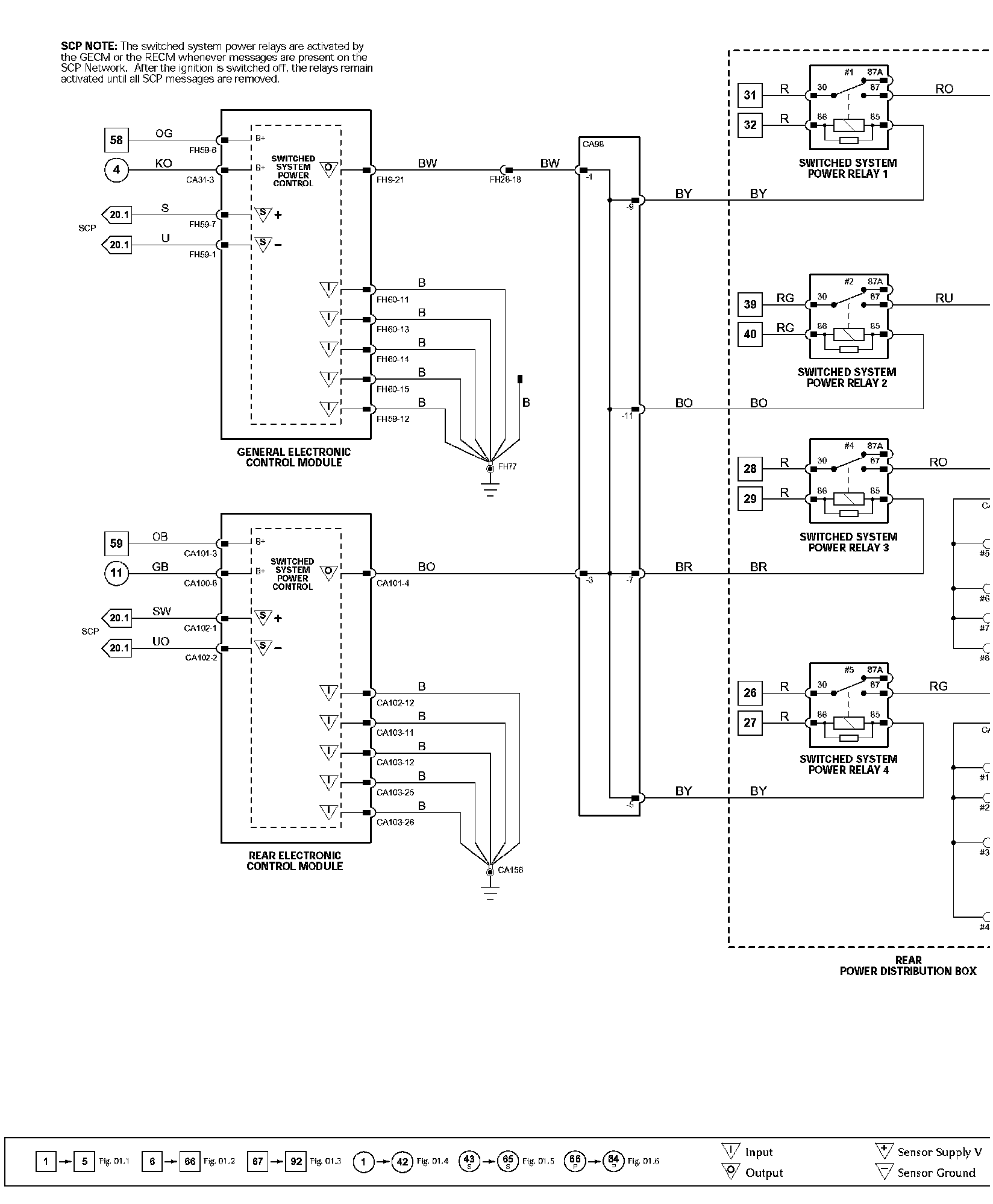

��Wiring Diagram:

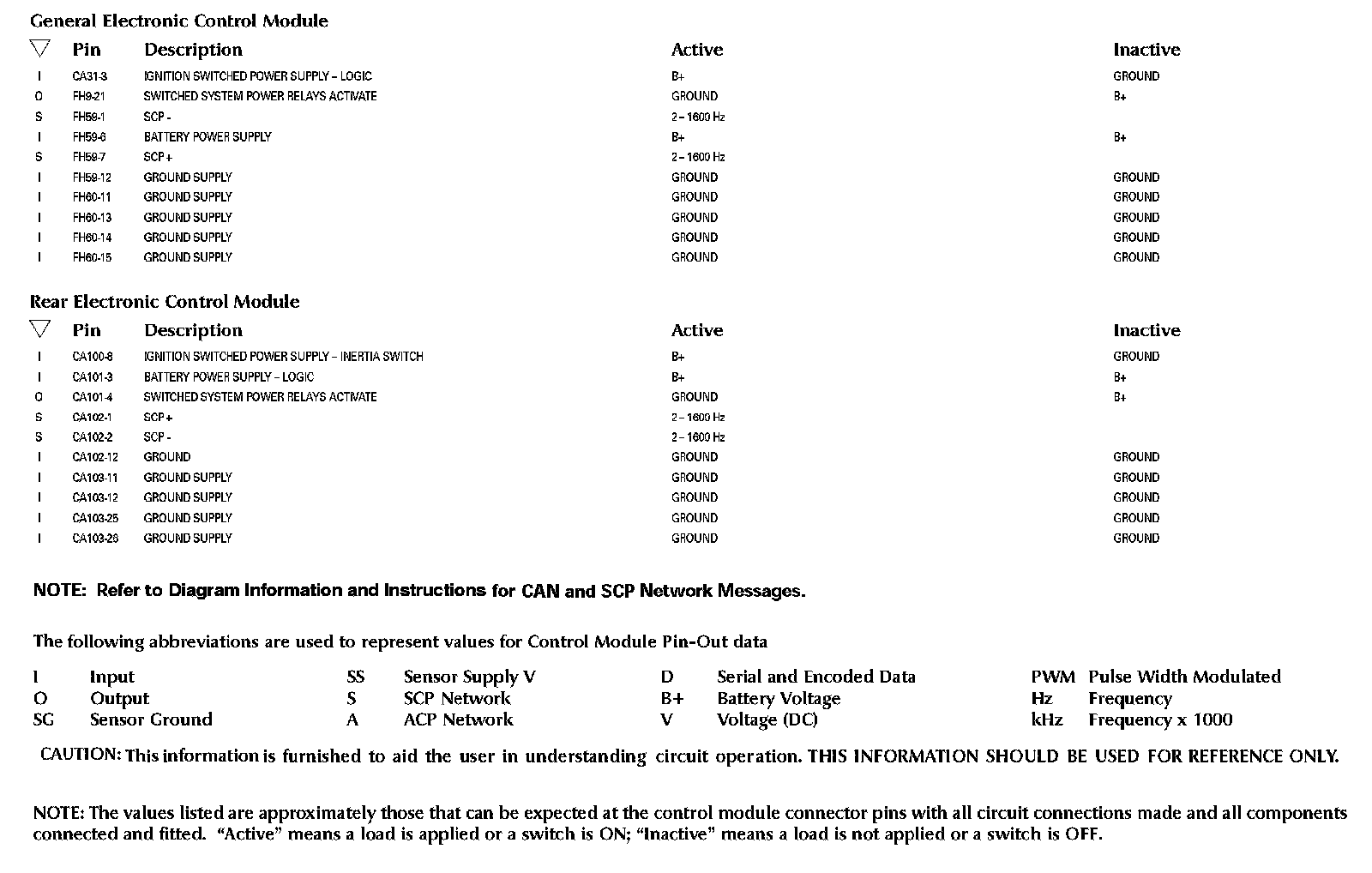

Control Module Pin-Out Information:
Components:
Harness In-line Connectors And Junction Connectors:
Grounds:
