Fig 05.1
Fig 05.1
Dynamic Stability Control
���Wiring Diagram:

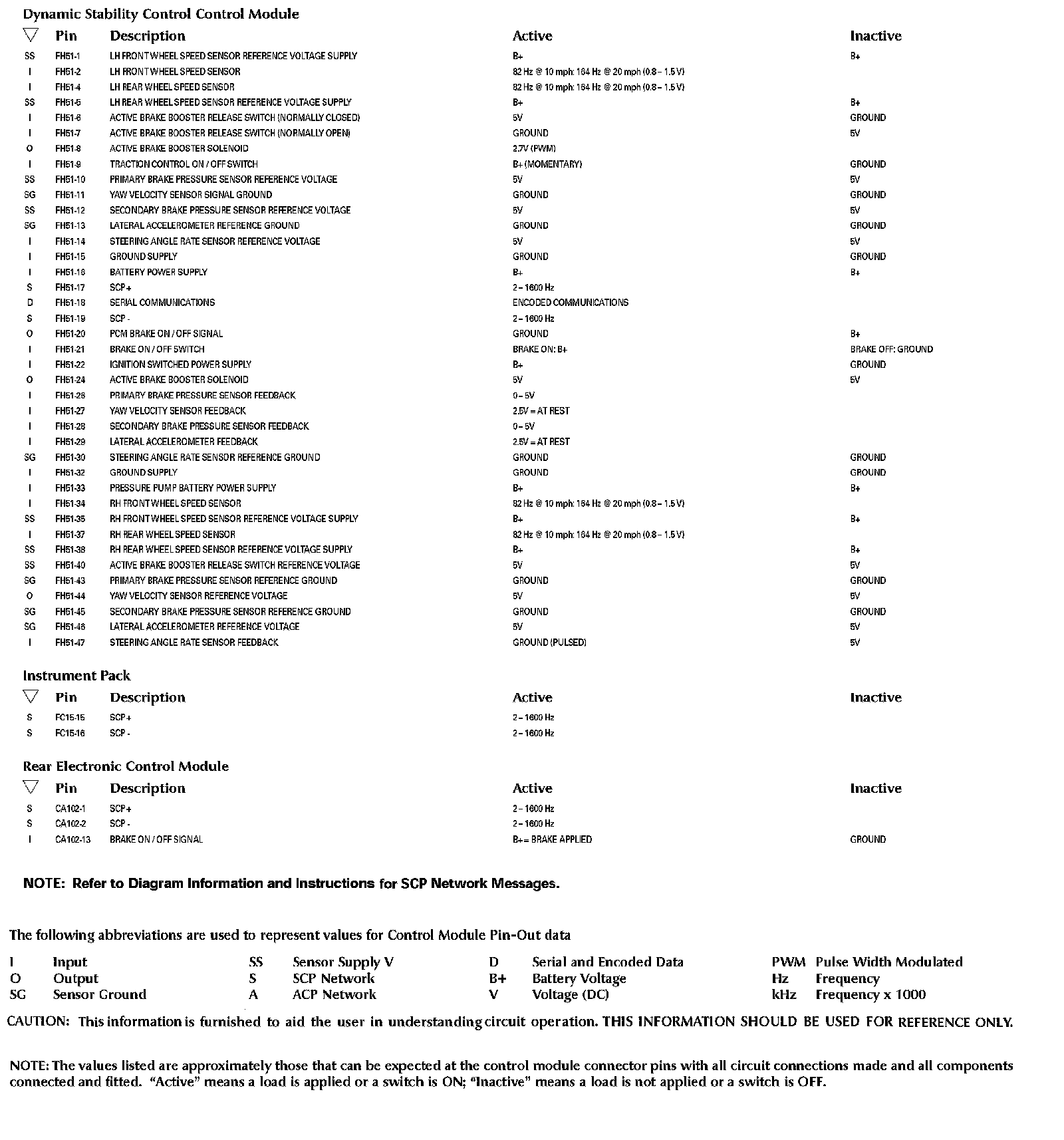

Control Module Pin-Out Information:

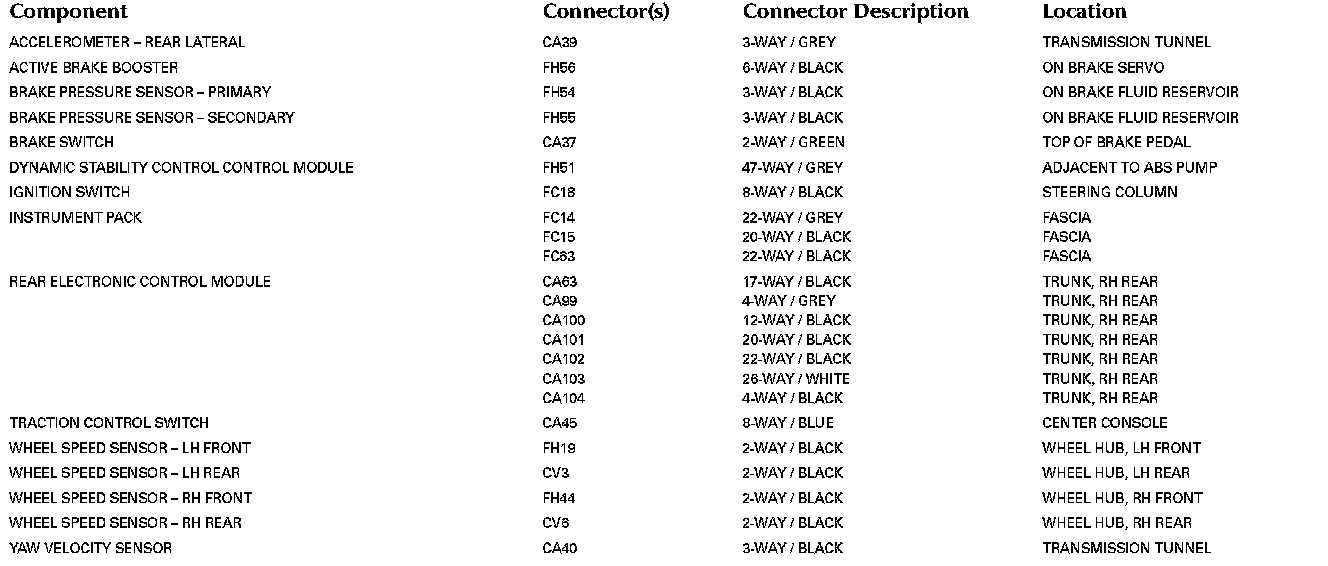

Components:

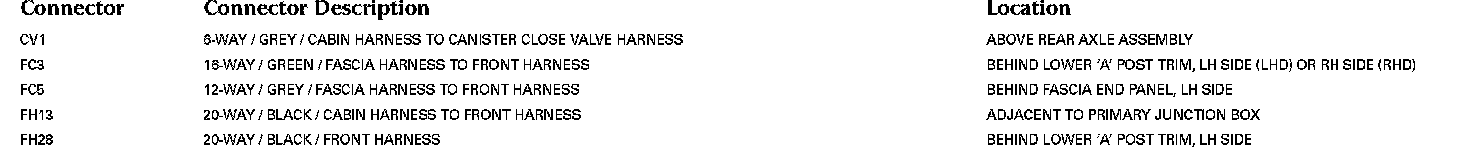

Harness In-line Connectors And Junction Connectors:
Grounds:
