Fig 05.2




Anti-Lock Braking; Traction Control

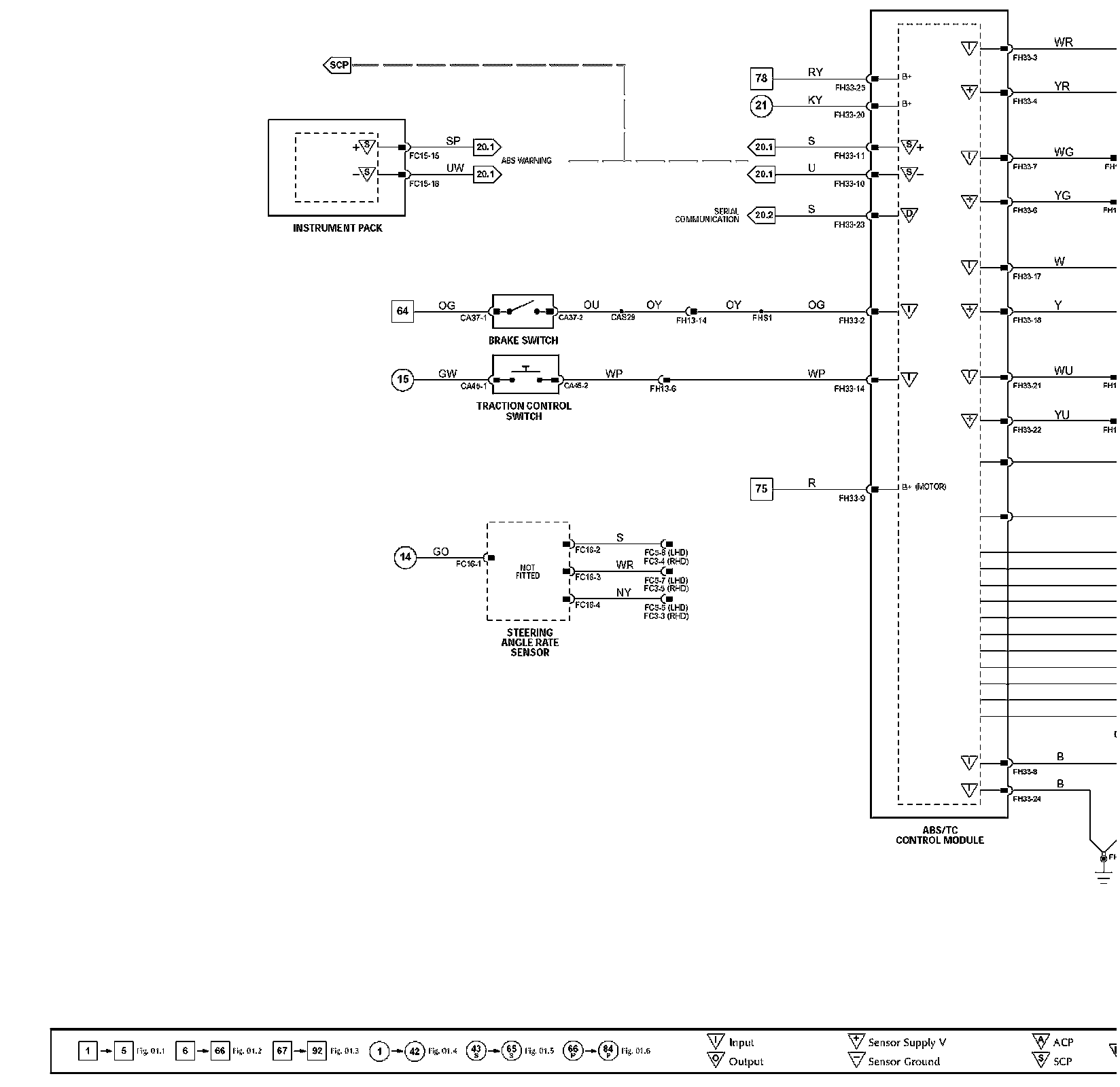

�]�Wiring Diagram:

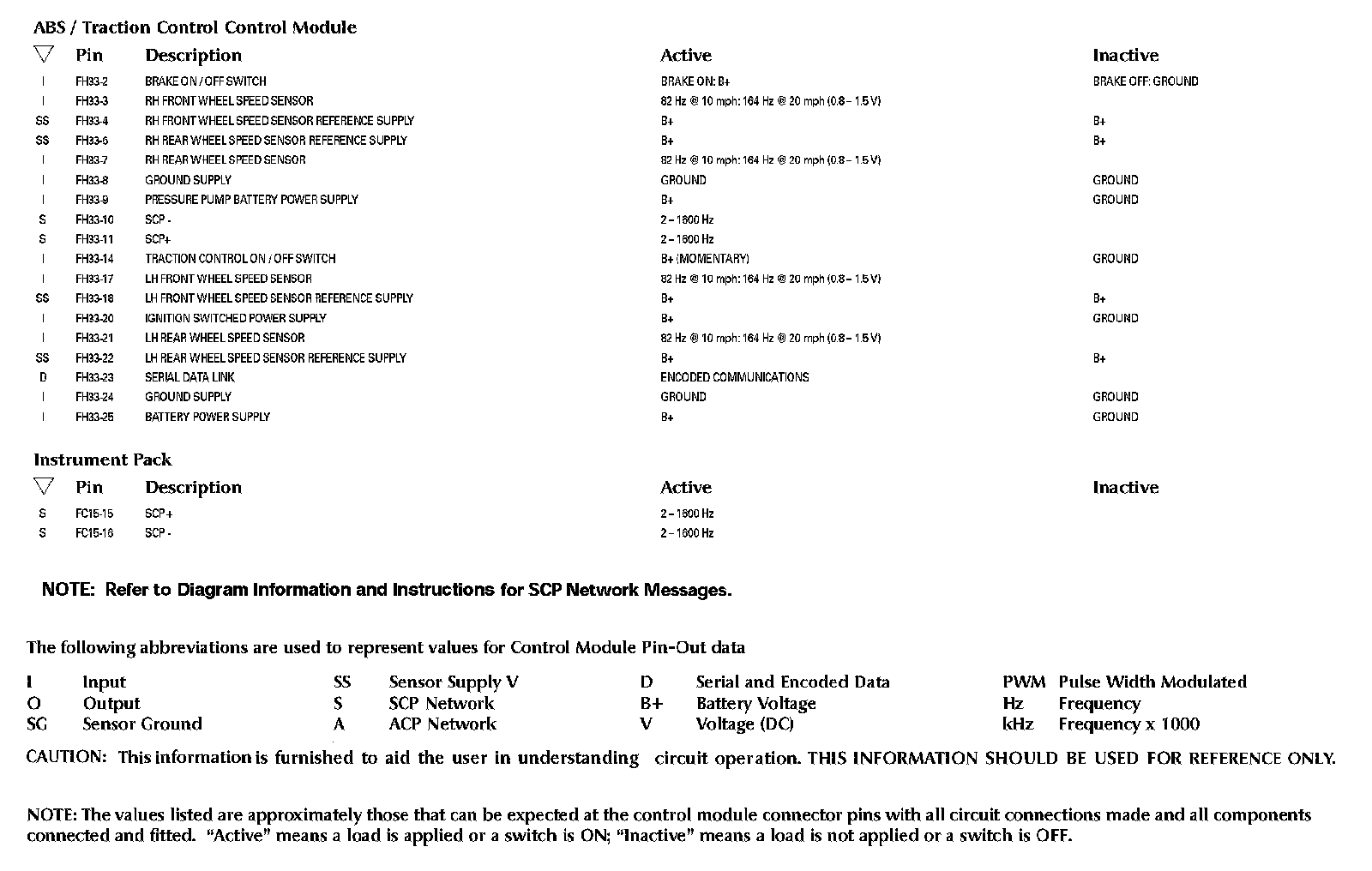

Control Module Pin-Out Information:






Components:

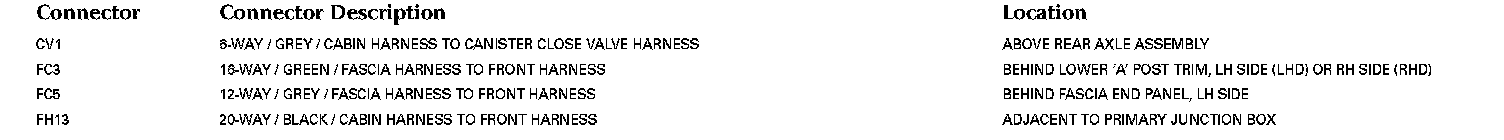

Harness In-line Connectors And Junction Connectors:






Grounds:
