Fig 08.1




Exterior Lighting: Front

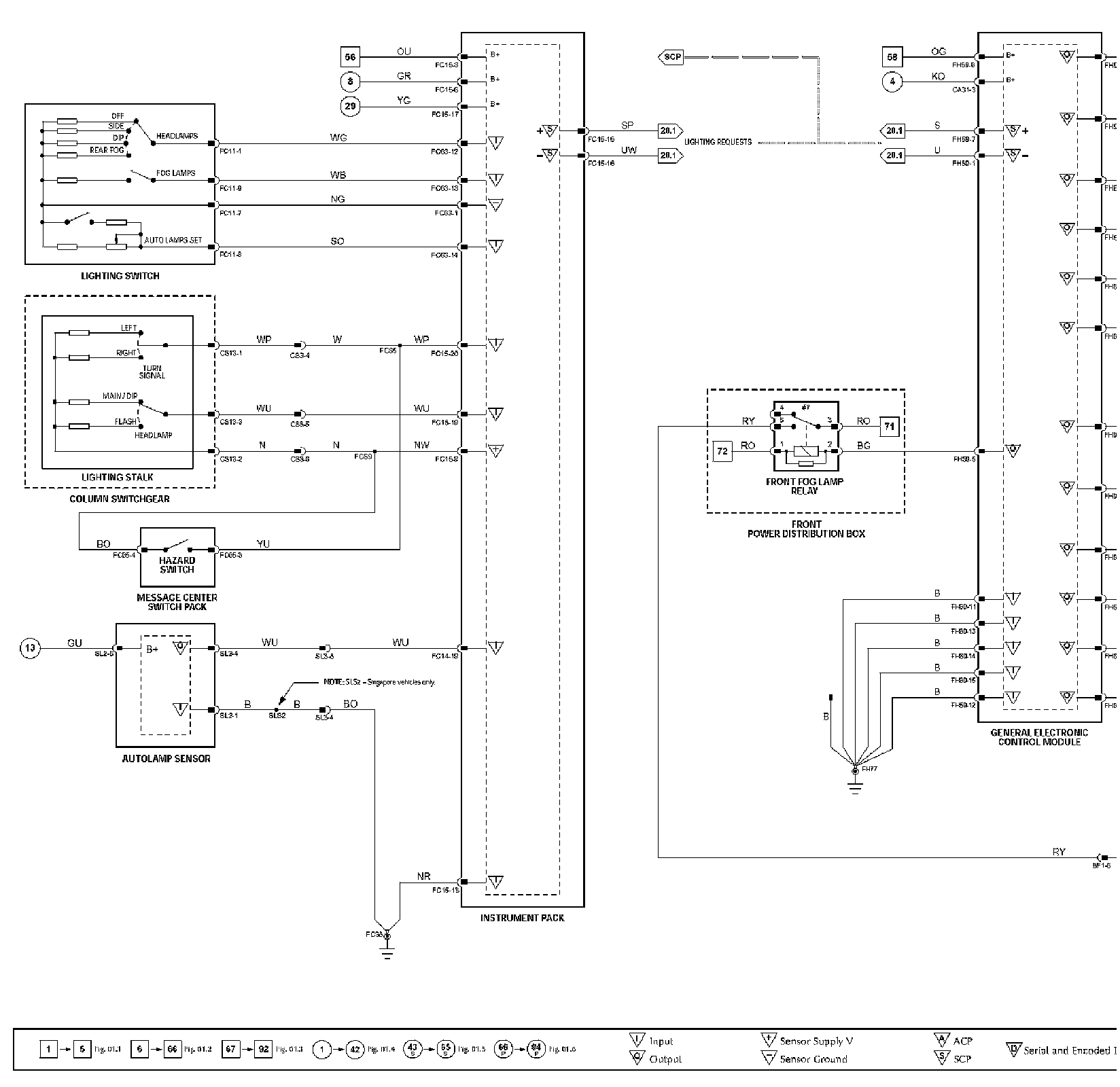

N�i%Wiring Diagram:

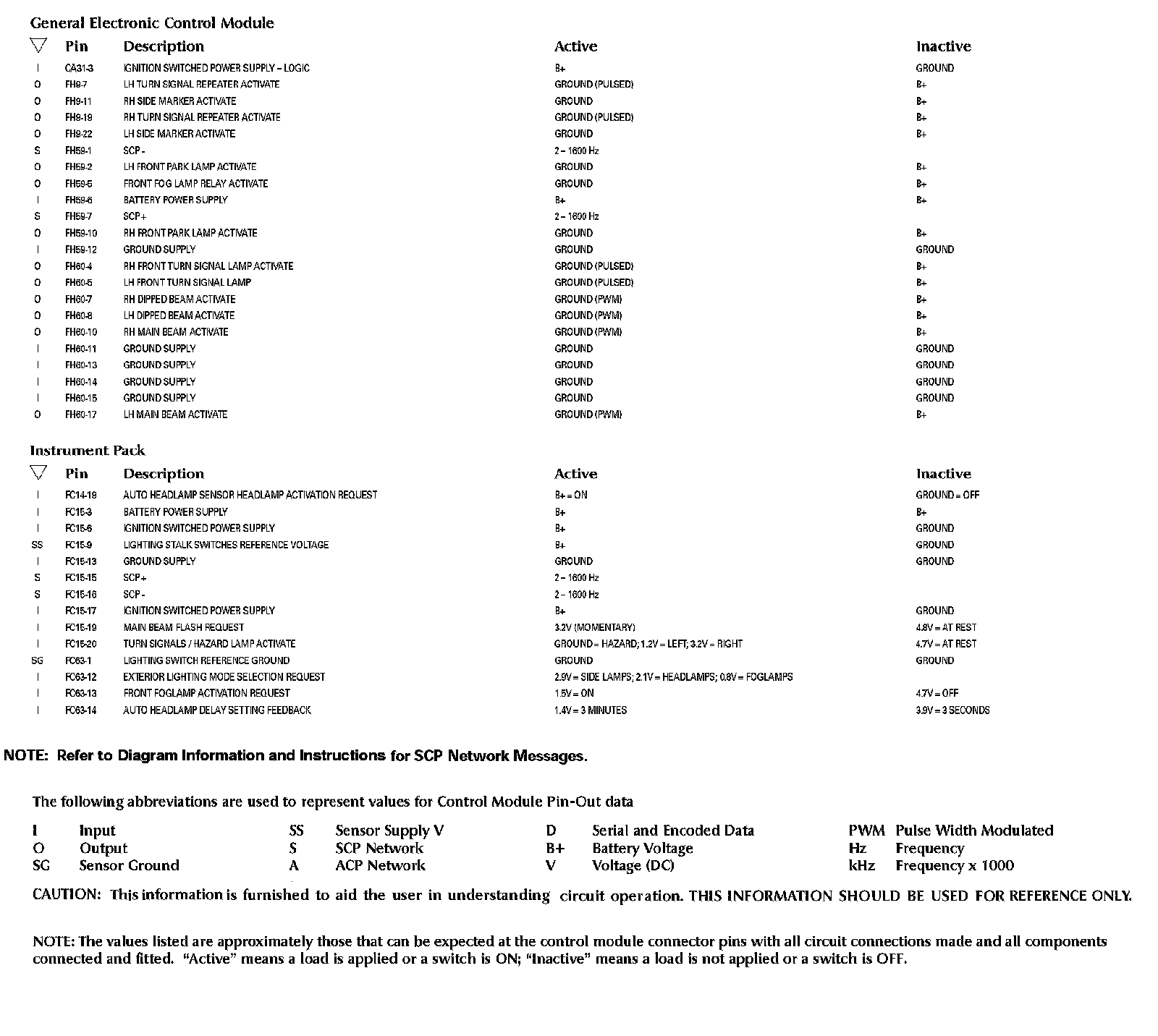

Control Module Pin-out Information:






Components:






Harness In-line Connectors And Junction Connectors:






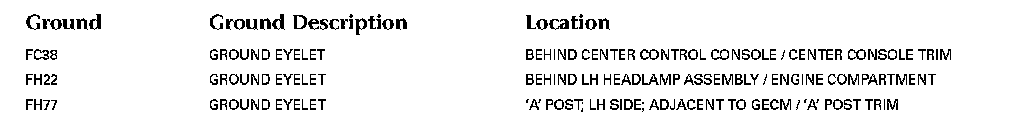

Grounds:
