Exterior Lighting: Rear - Trailer Towing

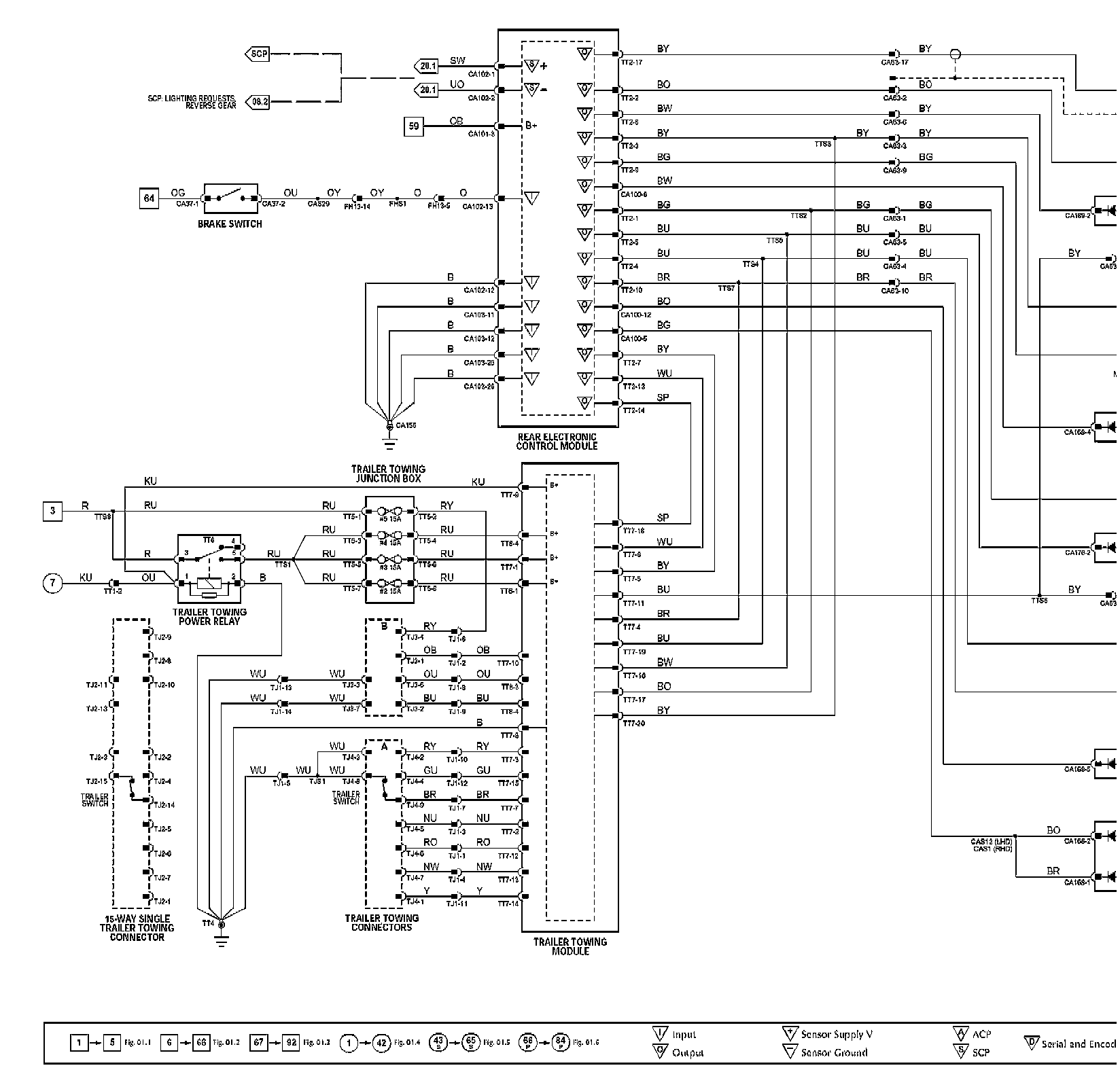

_�~%Wiring Diagram:
Control Module Pin-out Information:

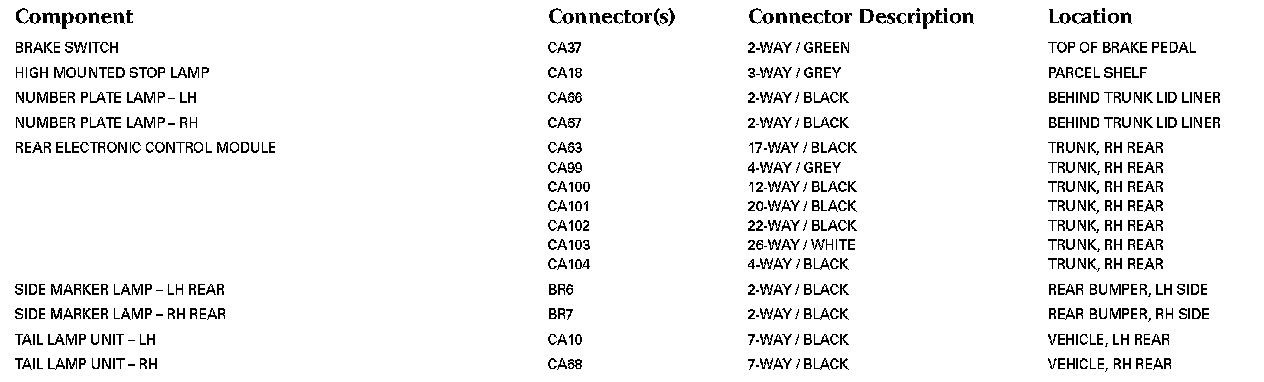

Components:

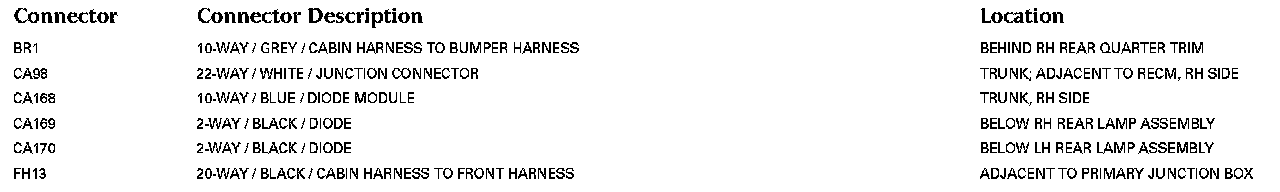

Harness In-line Connectors And Junction Connectors:
Grounds:
