Fig 08.4
Fig 08.4
Headlamp
Leveling

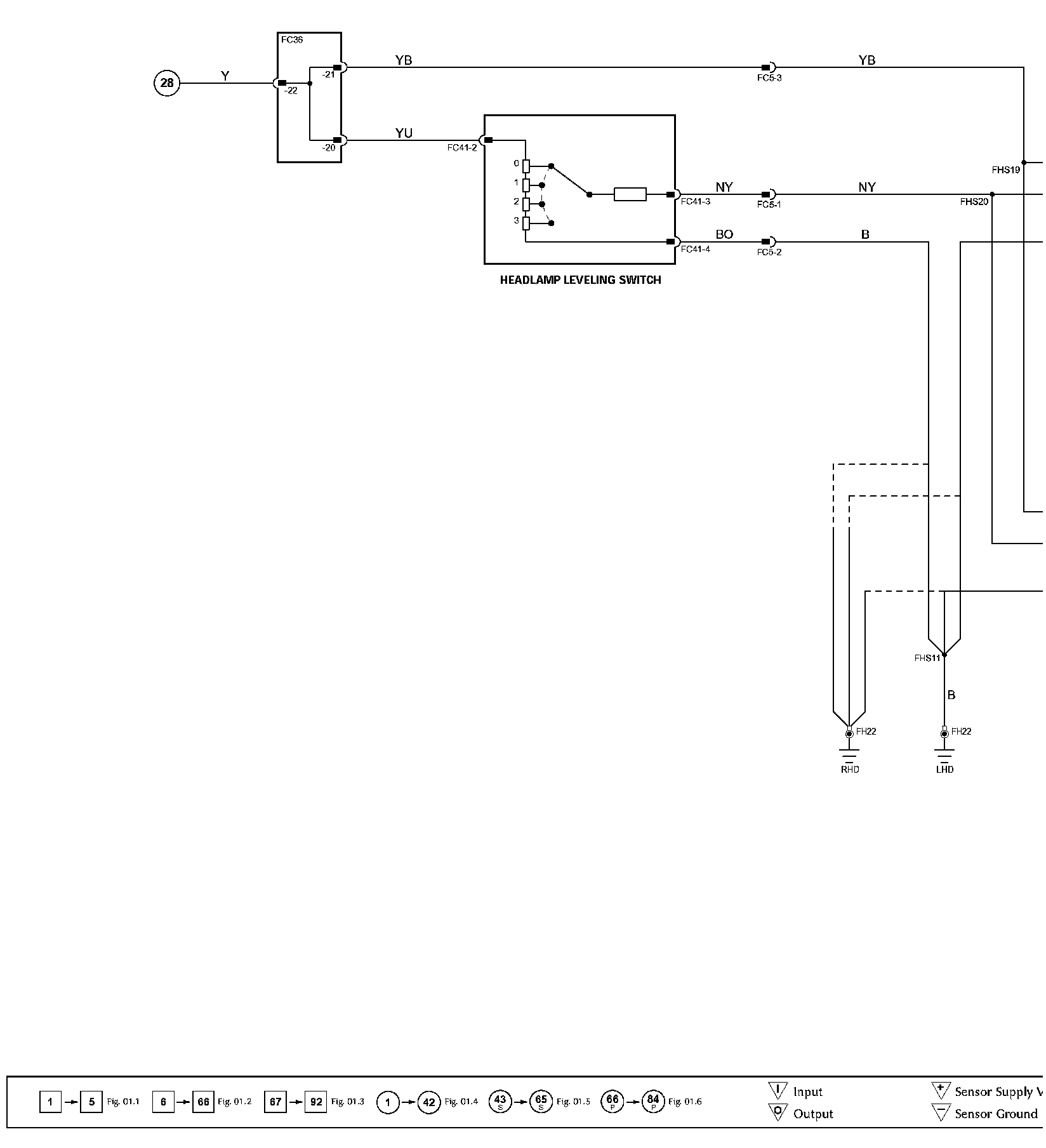

���%Wiring Diagram:

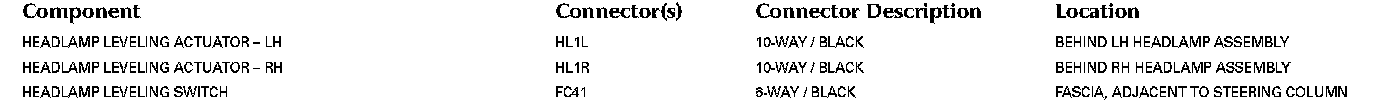

Components:
Harness In-line Connectors And Junction Connectors:
Grounds:
