Fig 09.1




Interior Lighting

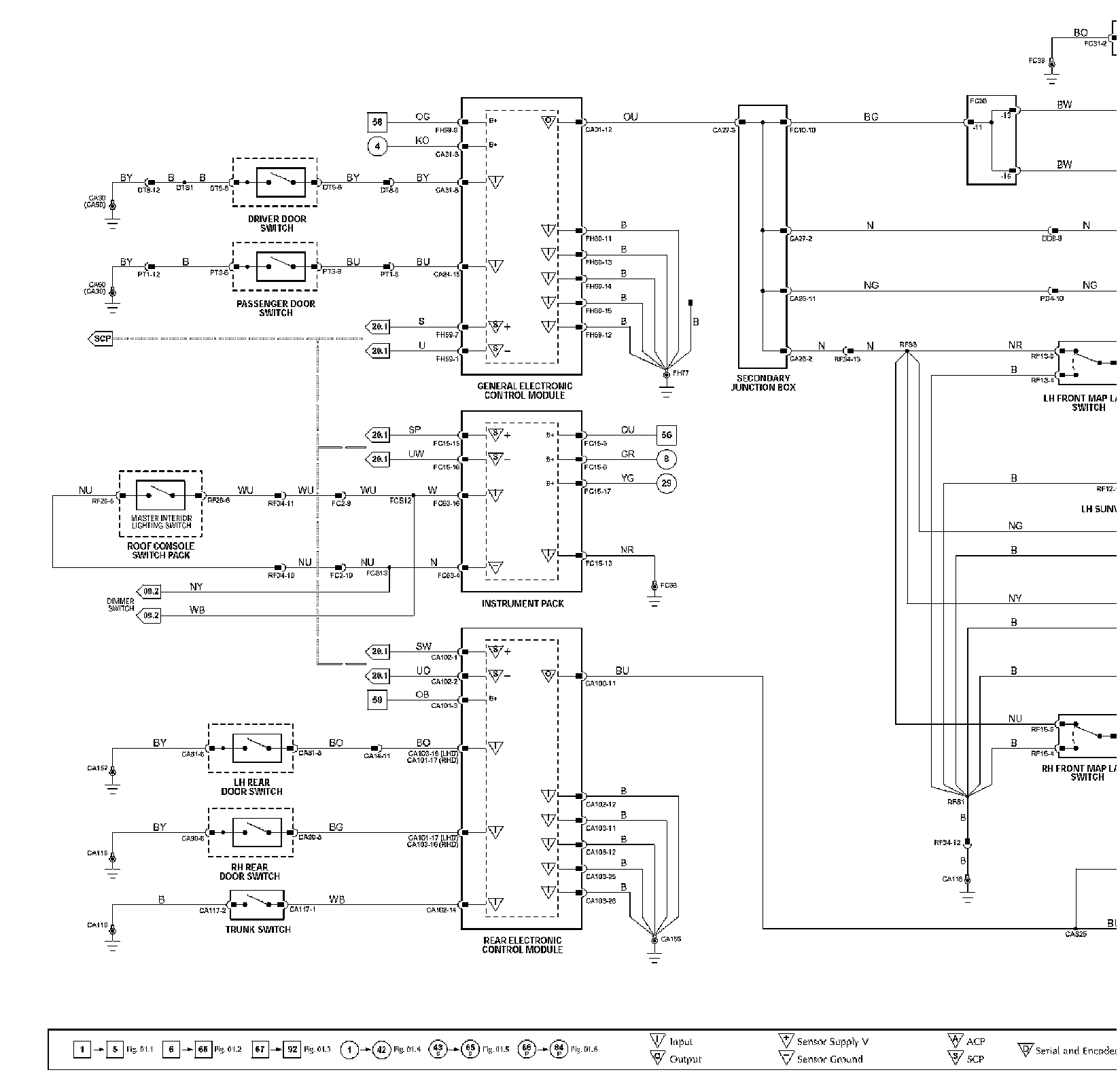

�K�%Wiring Diagram:

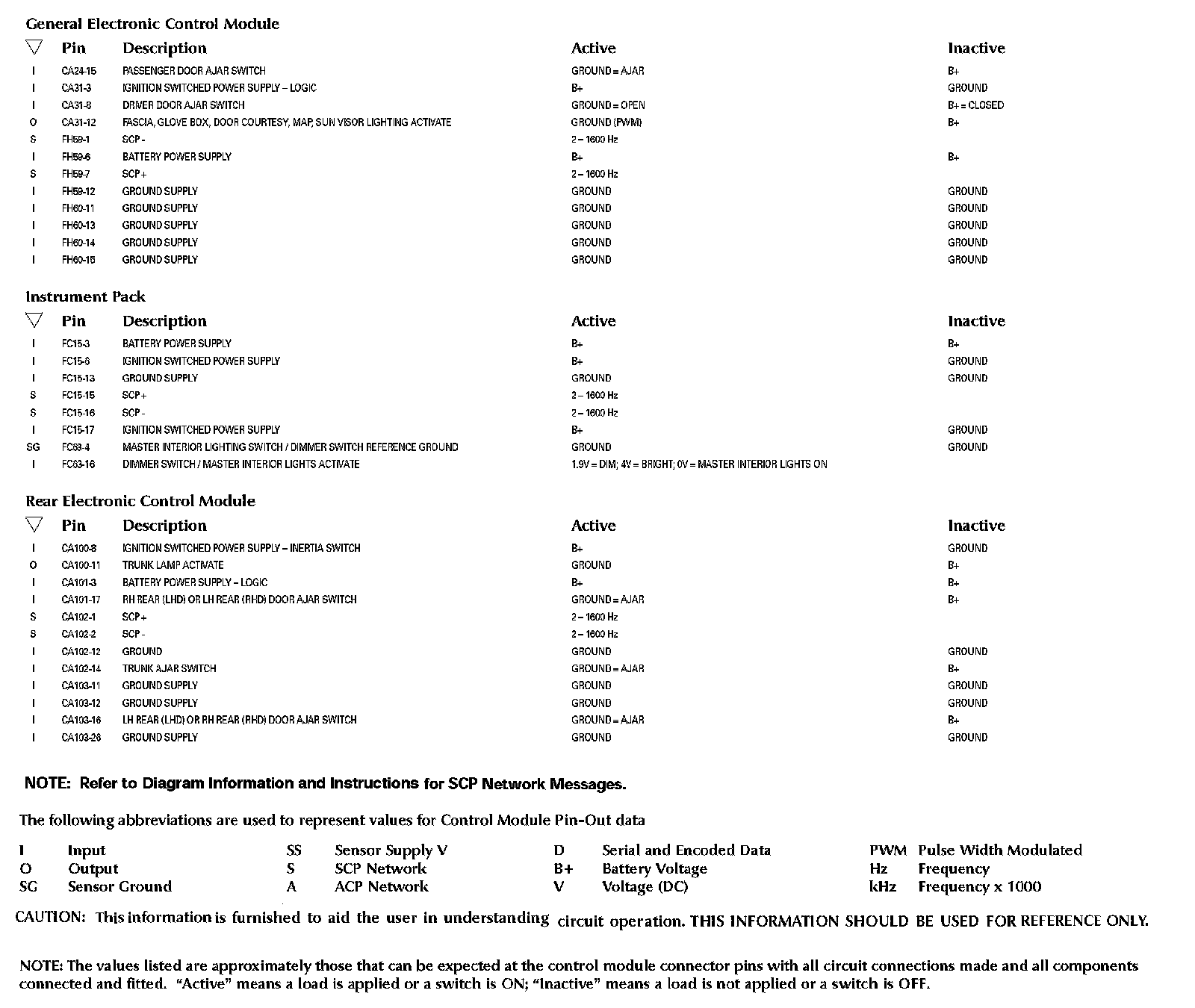

Control Module Pin-out Information:

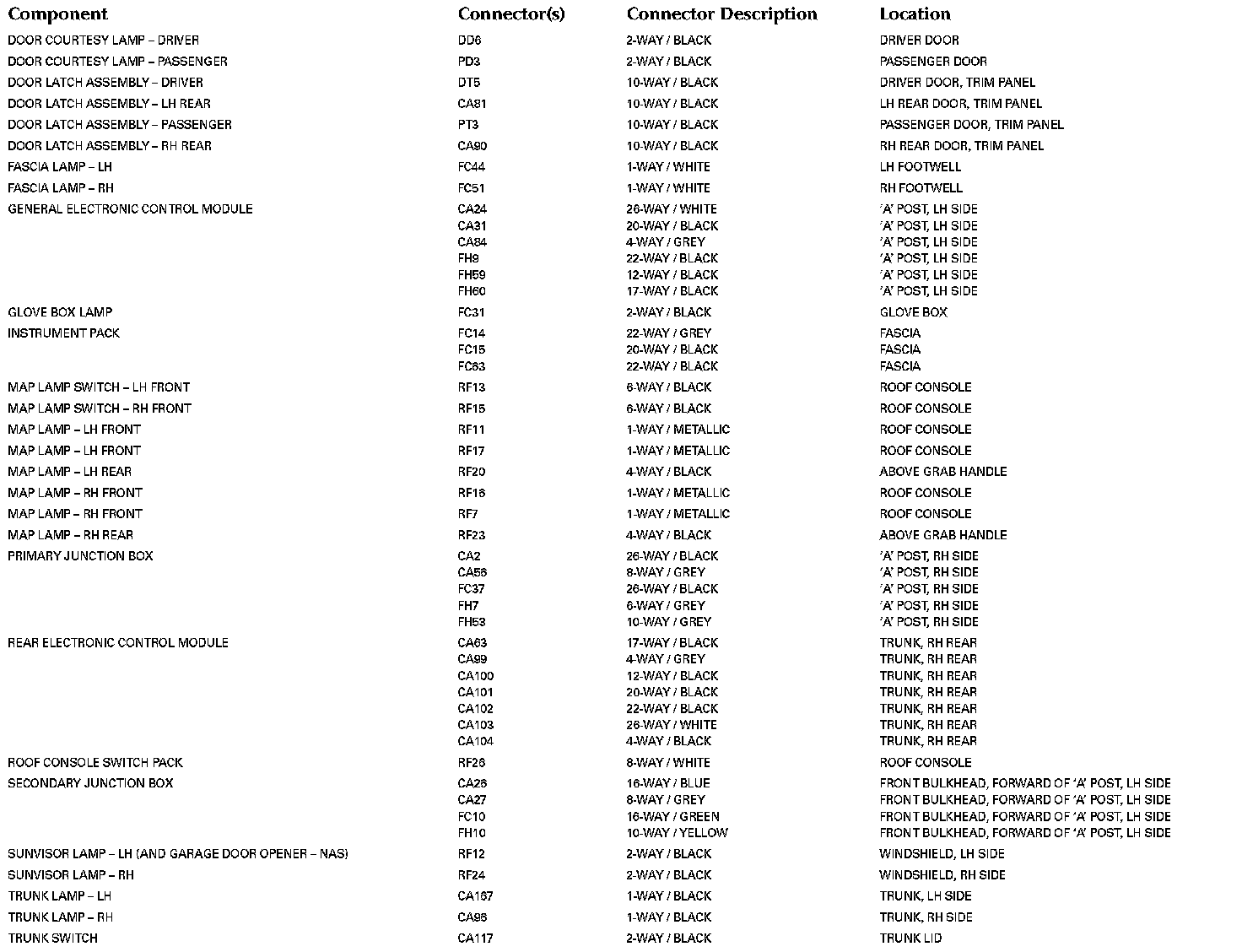

Components:






Harness In-line Connectors And Junction Connectors:






Grounds:
