Fig 09.2




Dimmer-Controlled Lighting


%Wiring Diagram:

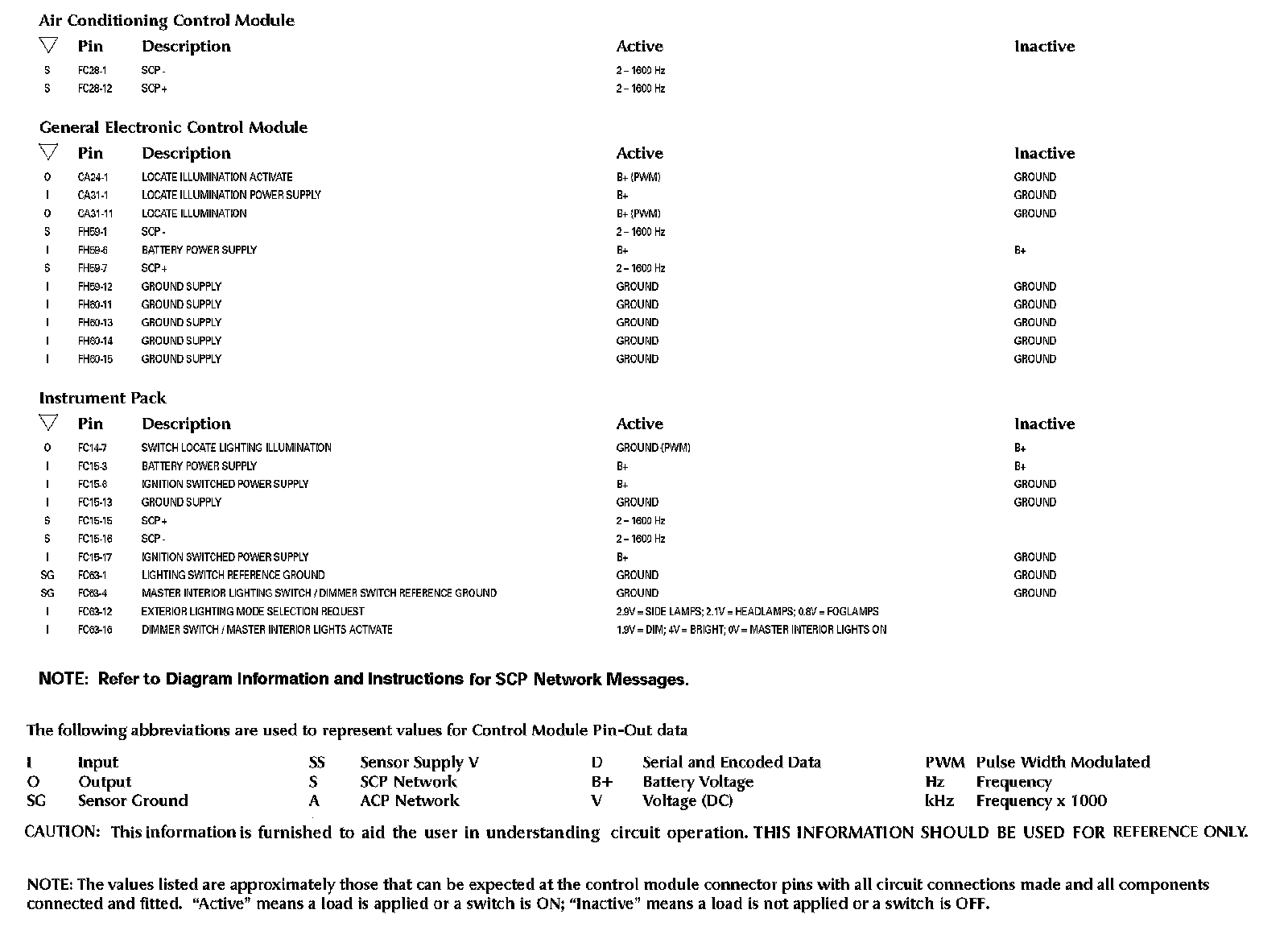

Control Module Pin-out Information:

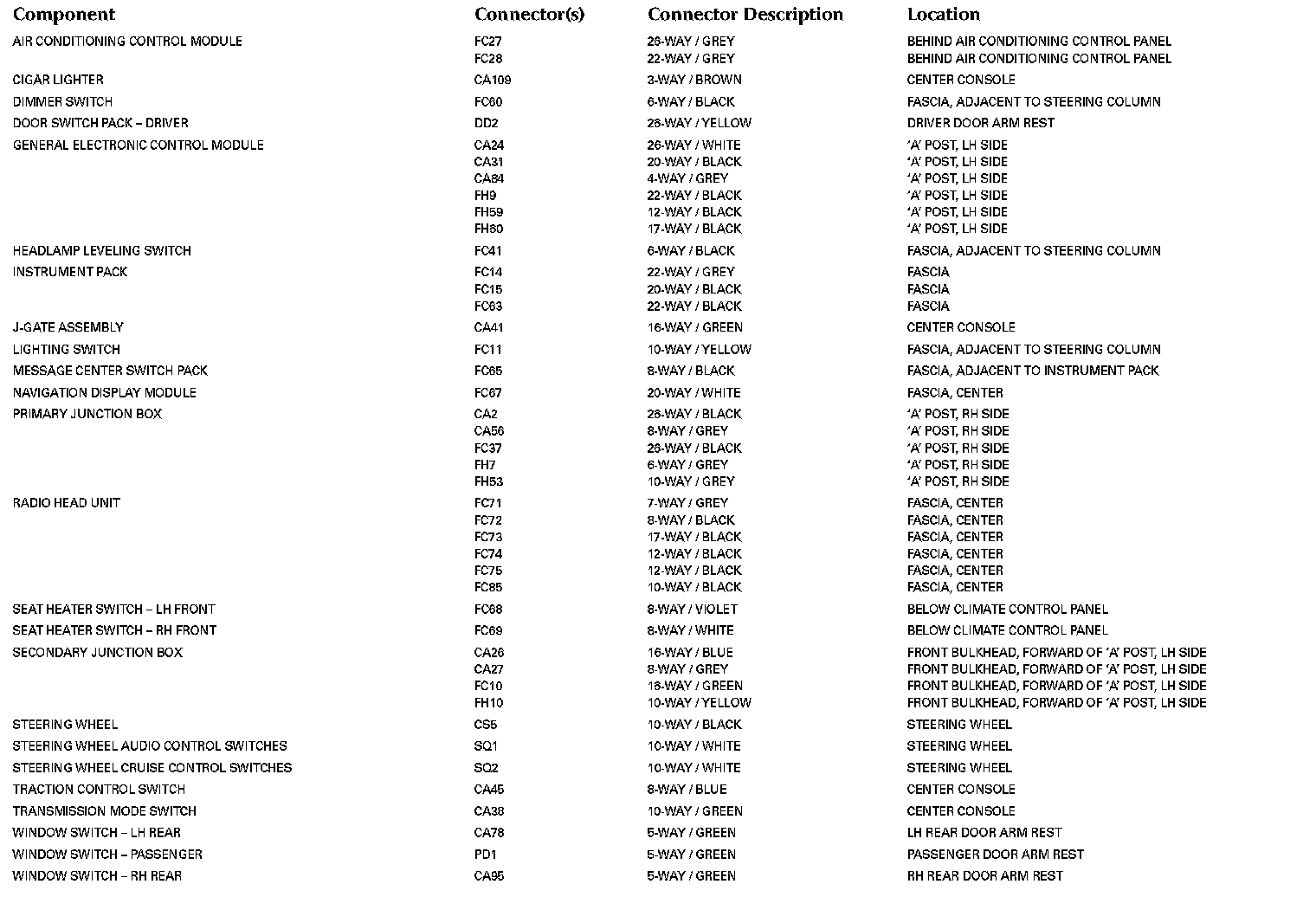

Components:

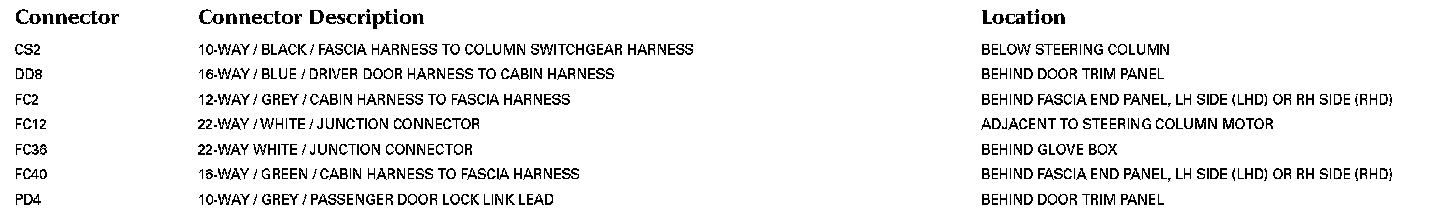

Harness In-line Connectors And Junction Connectors:






Grounds:
