Fig 10.2




Doors Mirrors Movement And Heaters; Heated Backlight

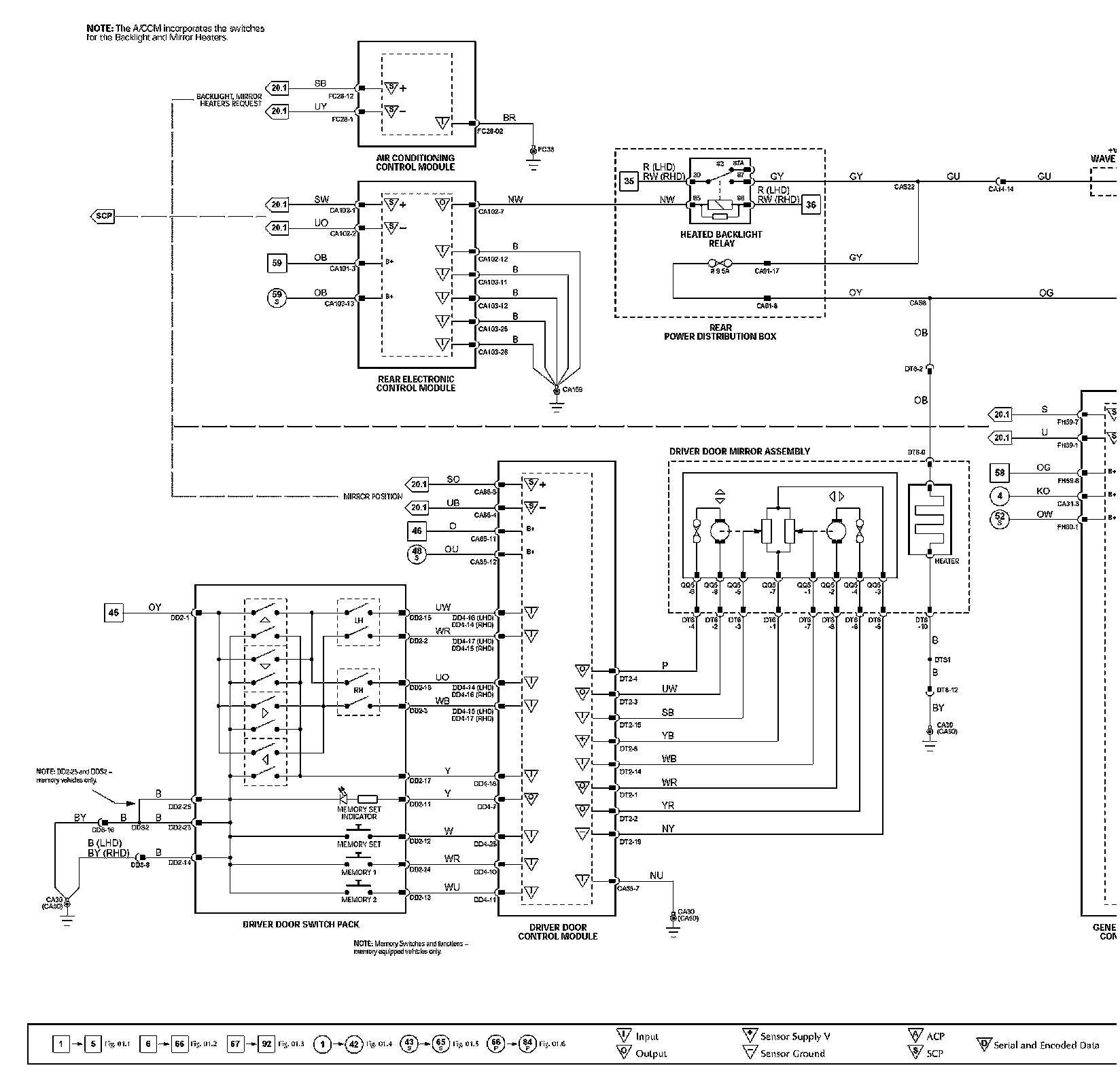

��Q Wiring Diagram:

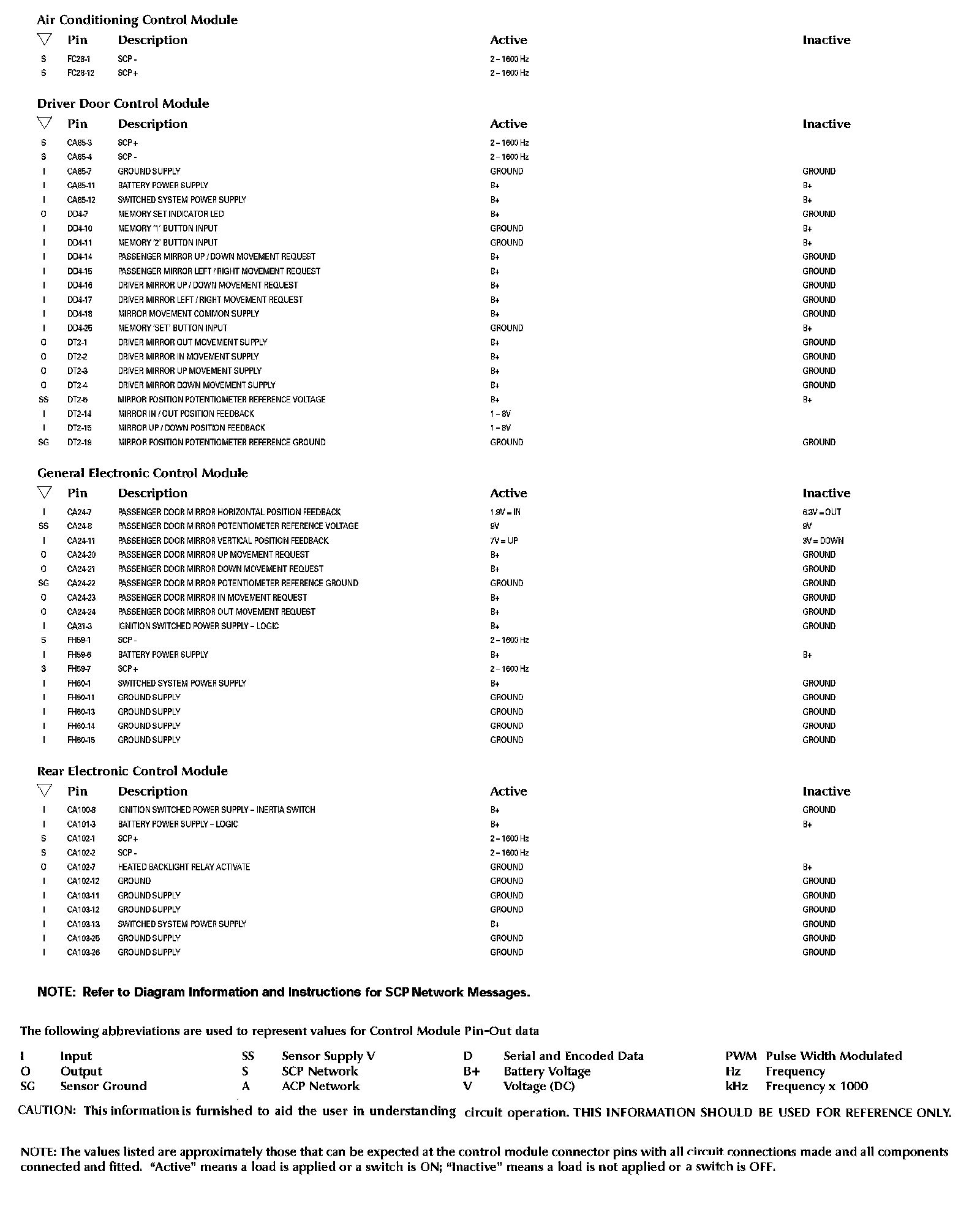

Control Module Pin-Out Information:

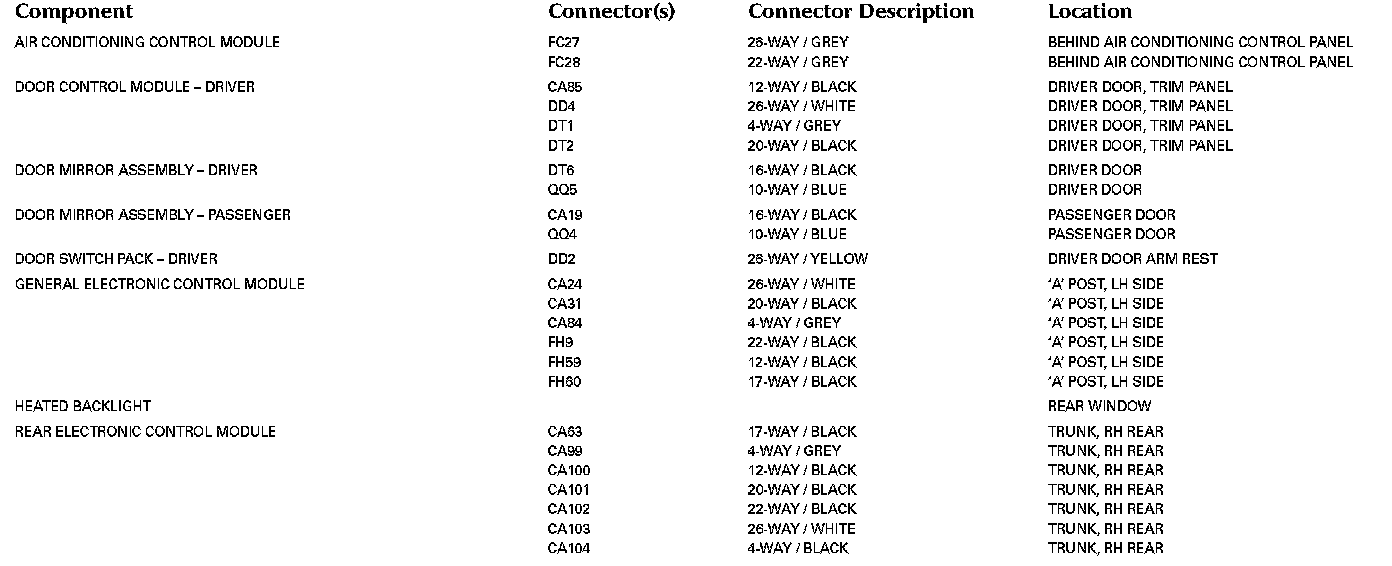

Components:






Harness In-line Connectors And Junction Connectors:

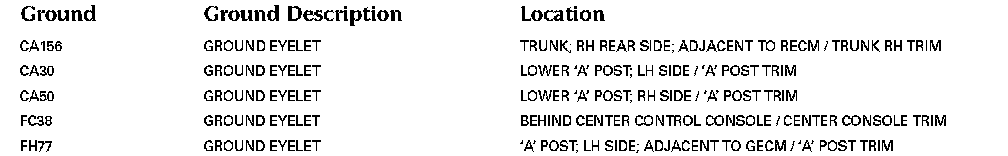

Grounds:
