Fig 10.3




Fold-Back Mirrors; Electrochromic Rear View Mirror

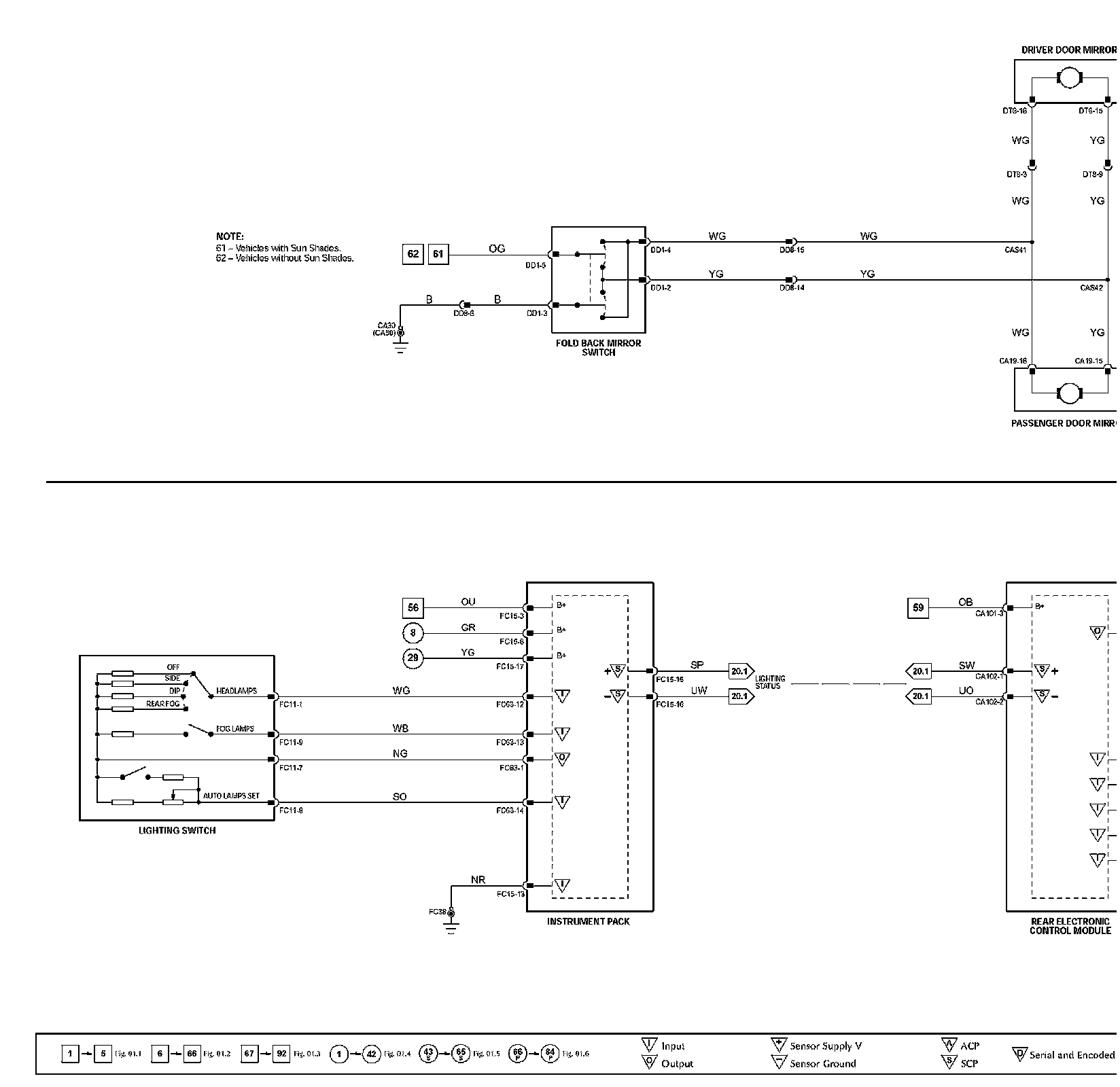

t�R Wiring Diagram:

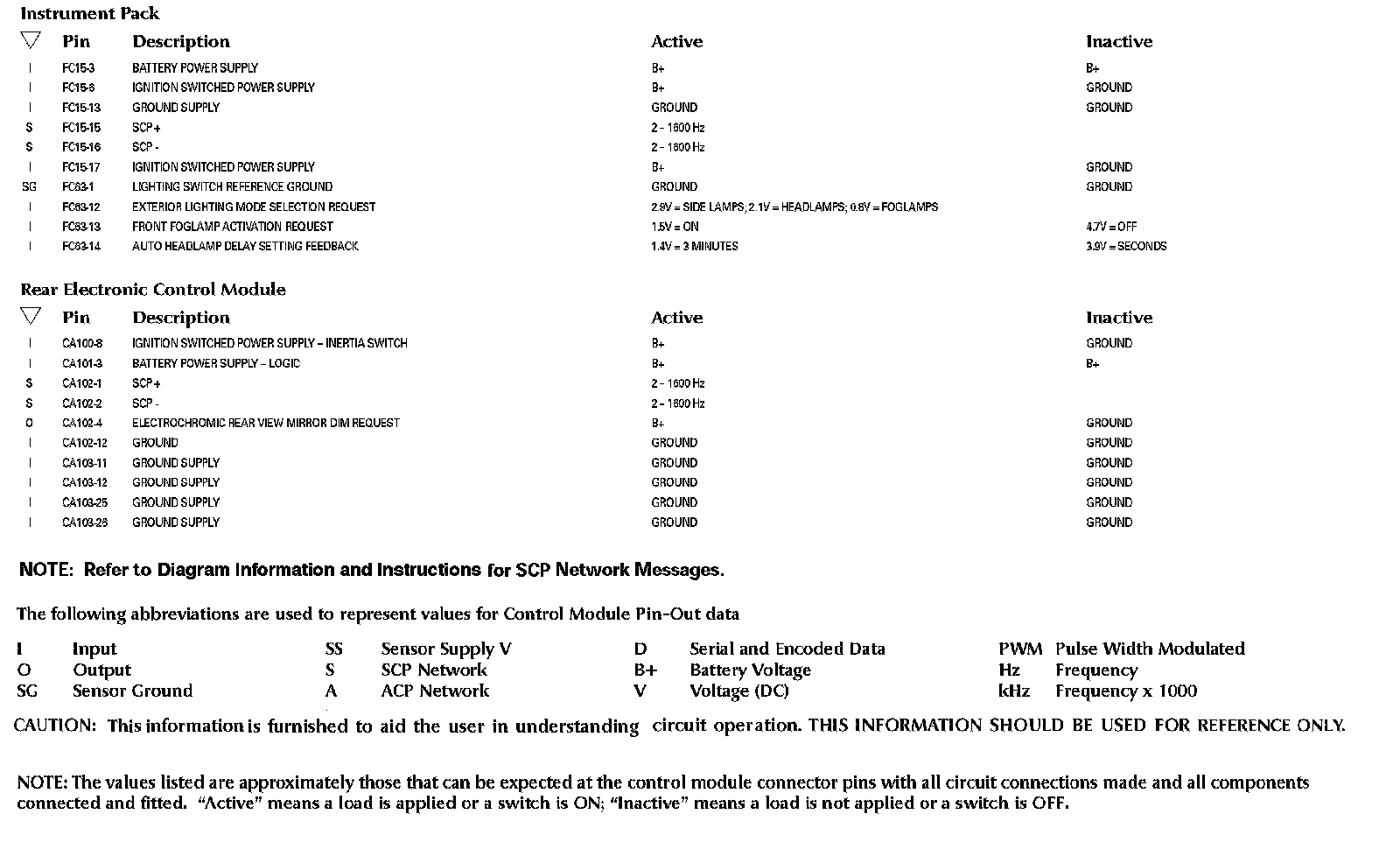

Control Module Pin-Out Information:

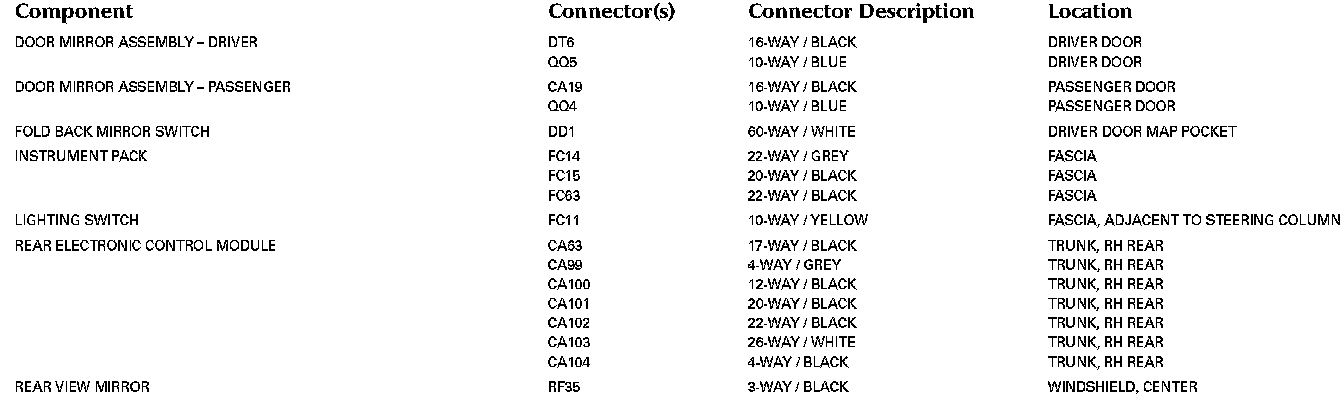

Components:

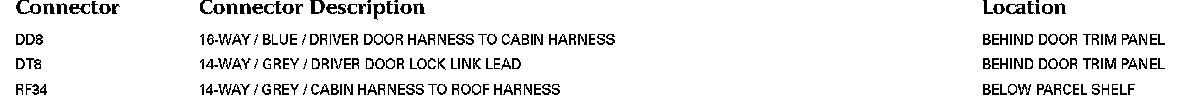

Harness In-line Connectors And Junction Connectors:






Grounds:
