Fig 11.1




Driver Seat: Memory

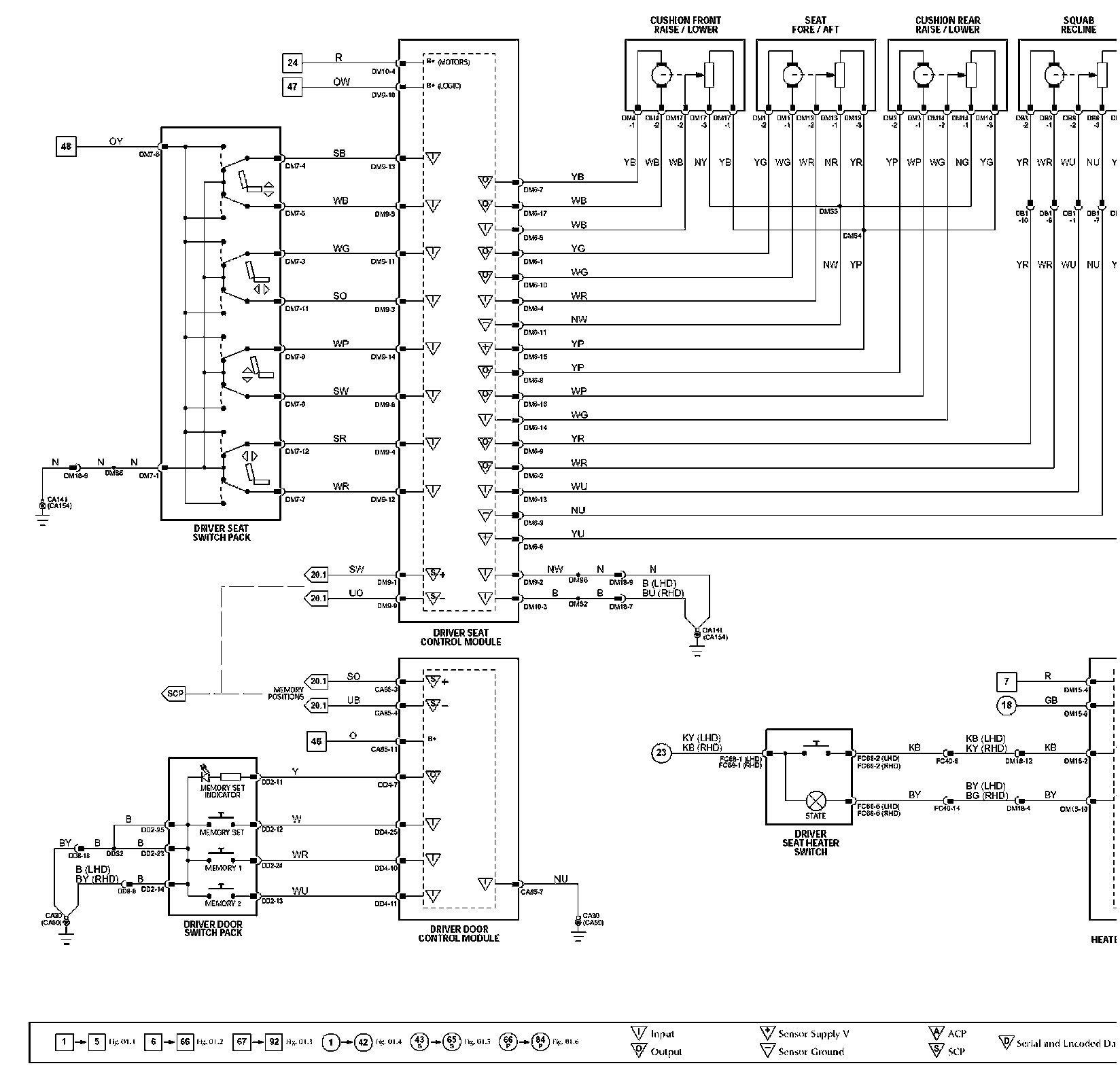

�*#Wiring Diagram:

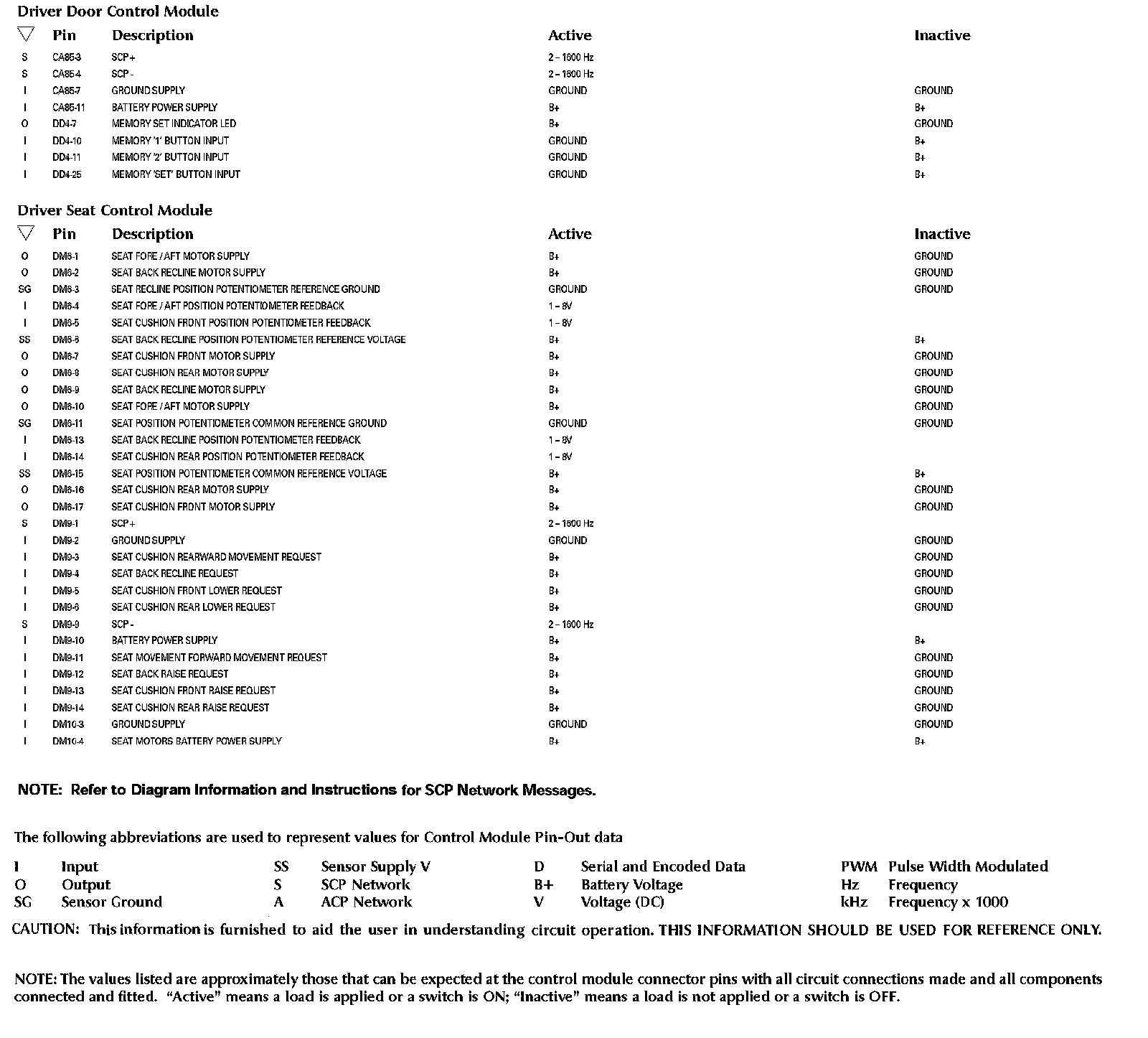

Control Module Pin-Out Information:






Components:

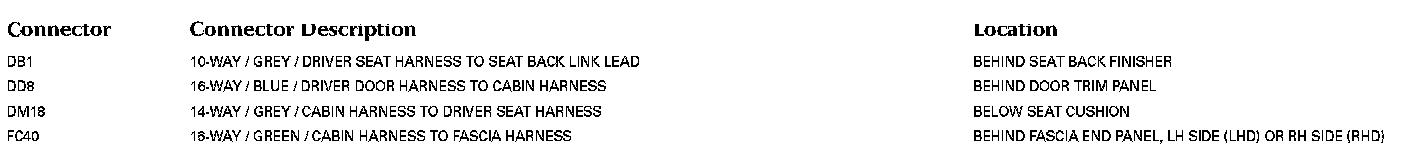

Harness In-line Connectors And Junction Connectors:

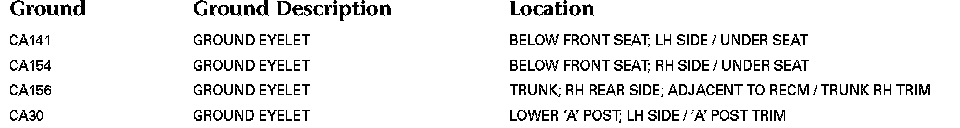

Grounds:
