Fig 11.2




Driver Seat: Non Memory

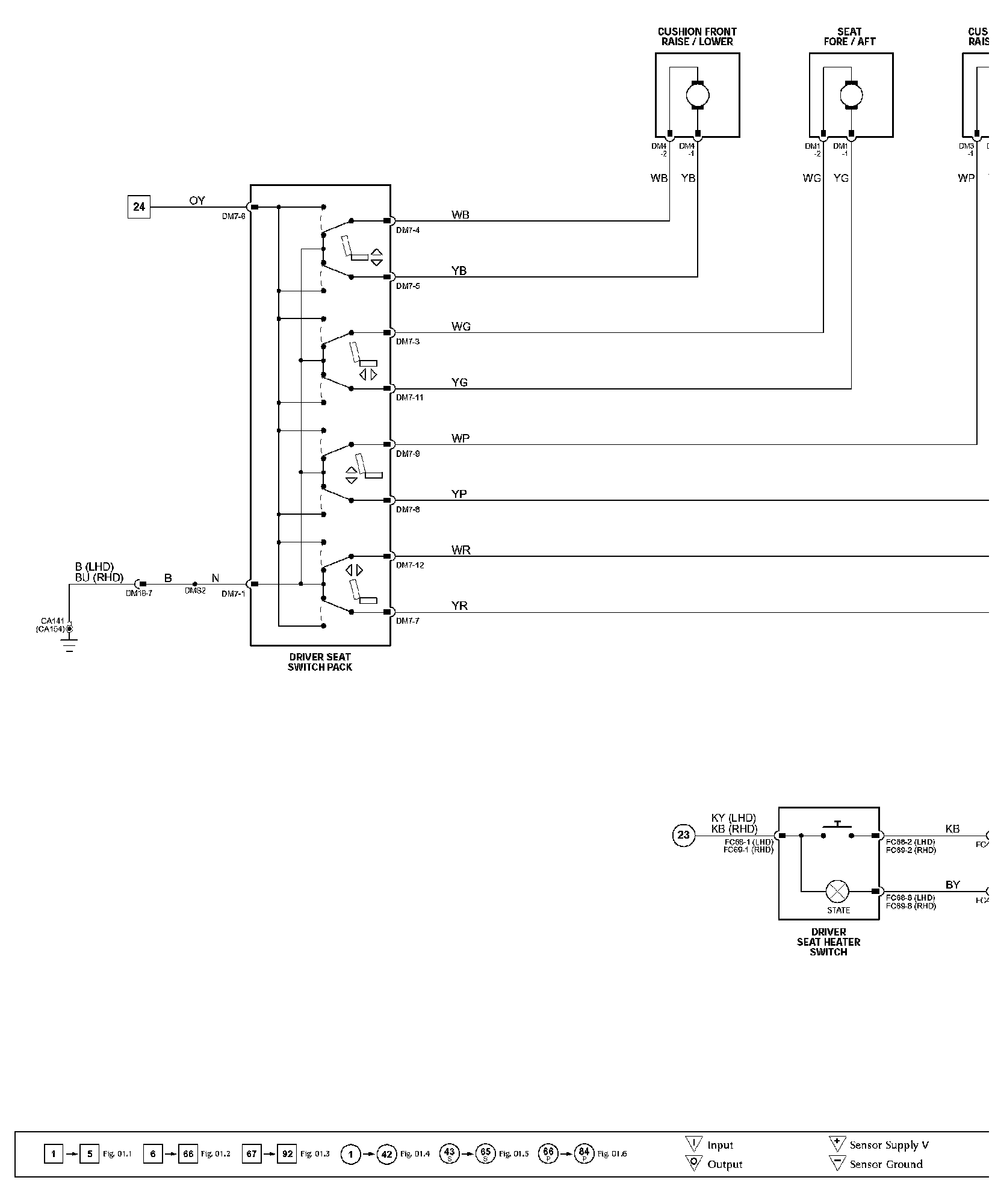

��7#Wiring Diagram:

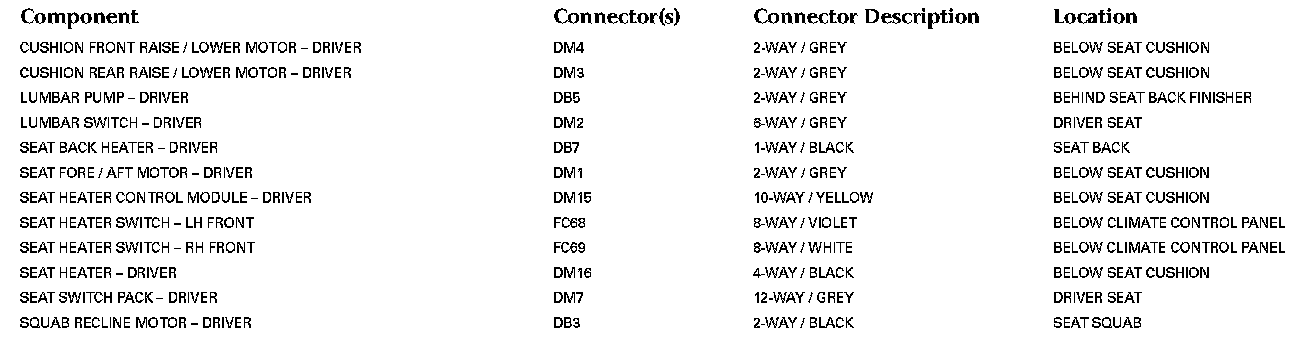

Components:






Harness In-line Connectors And Junction Connectors:






Grounds:
