Fig 11.3




Passenger Seat

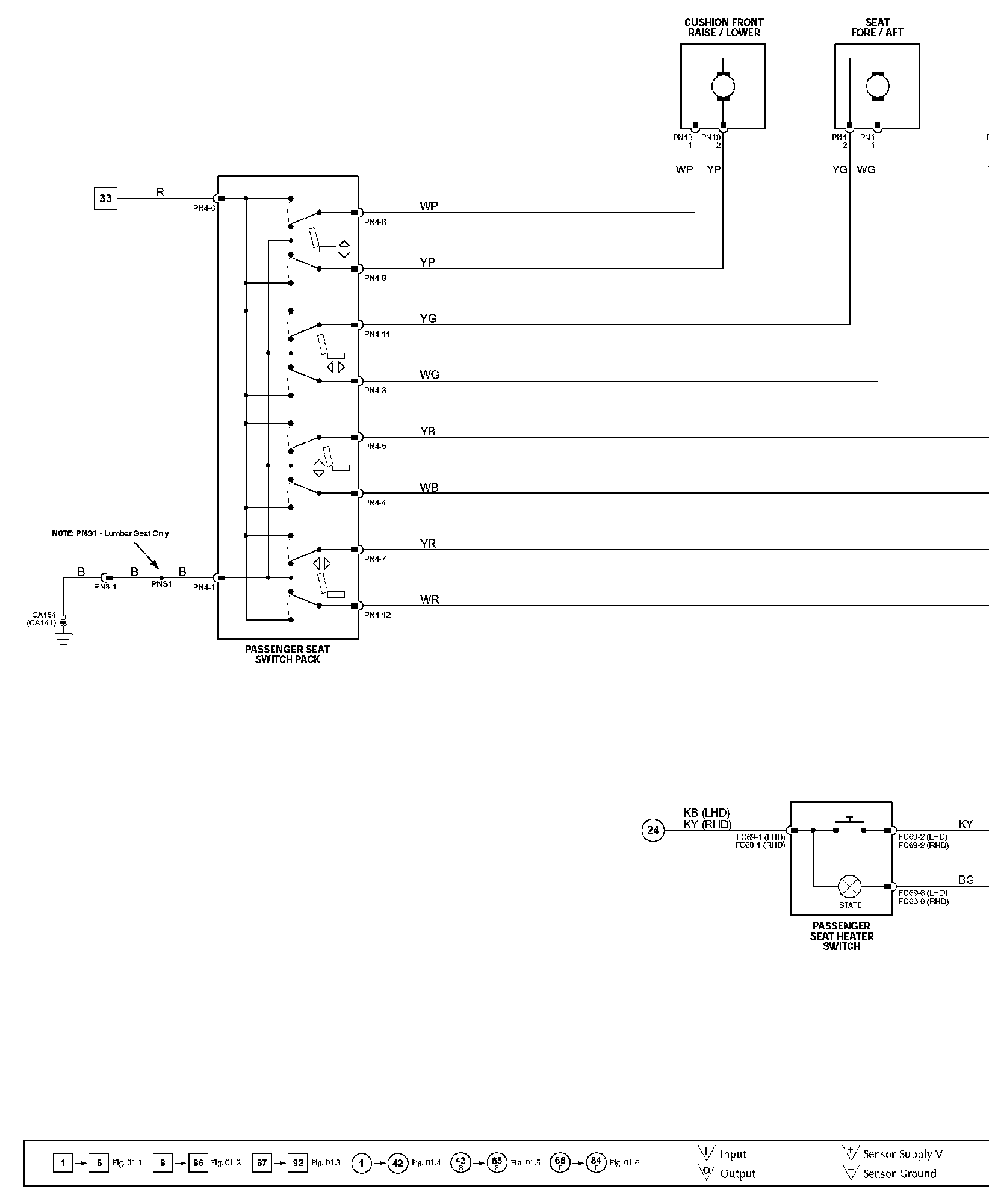

�18#Wiring Diagram:

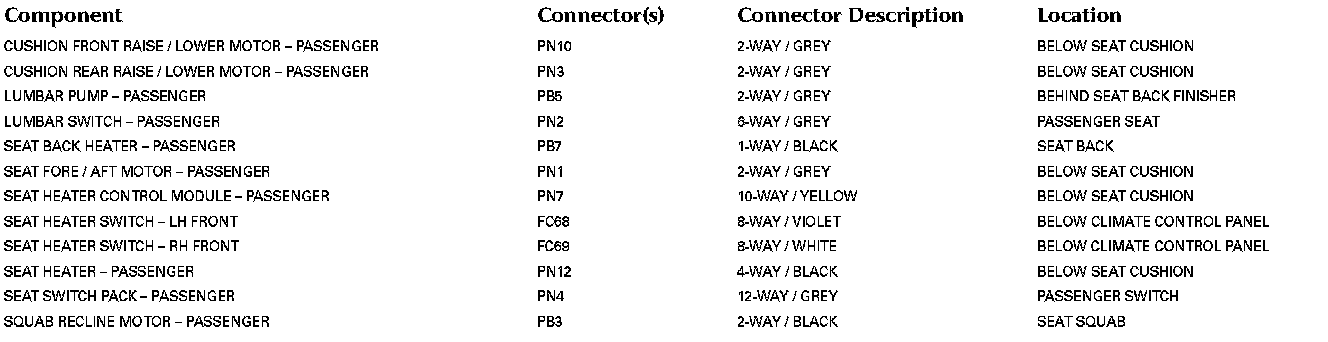

Components:

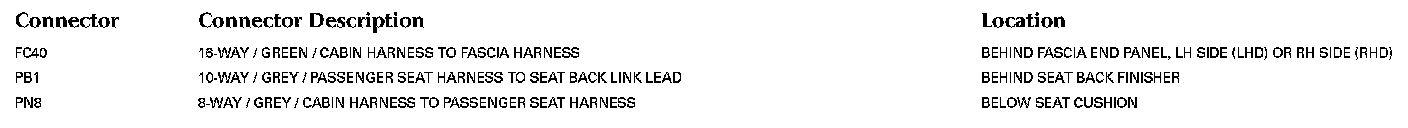

Harness In-line Connectors And Junction Connectors:






Grounds:
