Fig 20.1




Standard Corporate Protocol Network

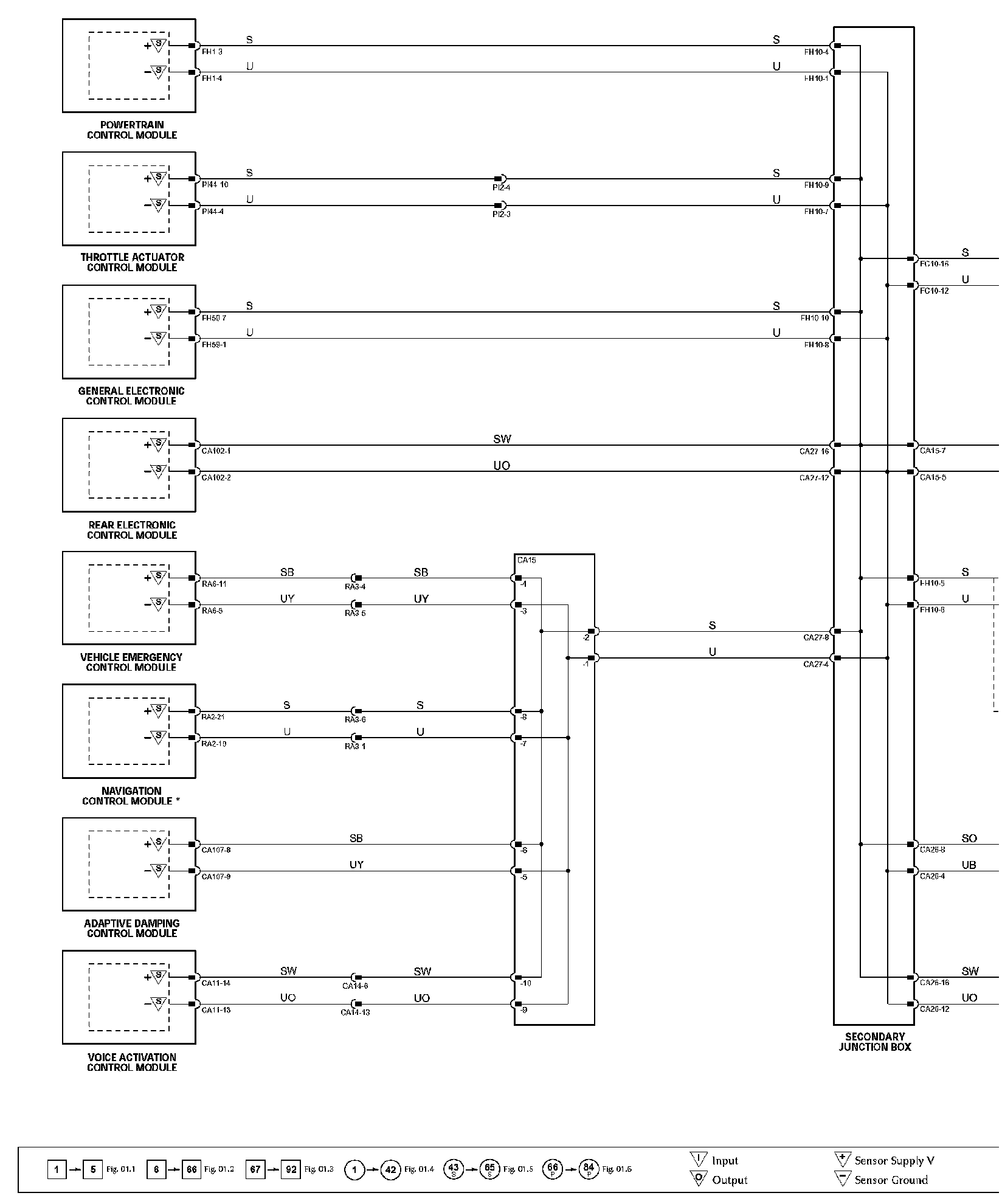

�f� Wiring Diagram:

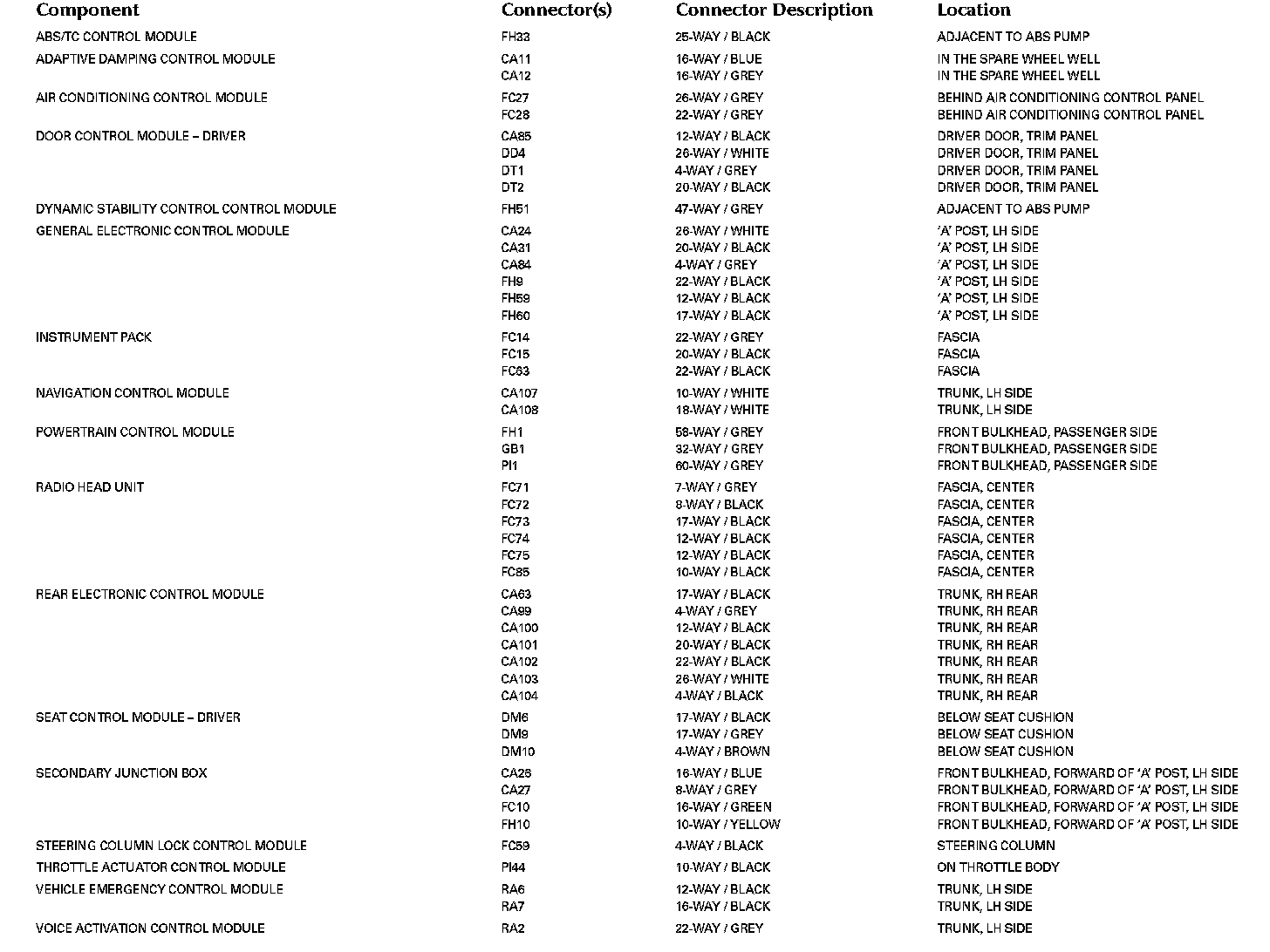

Components:

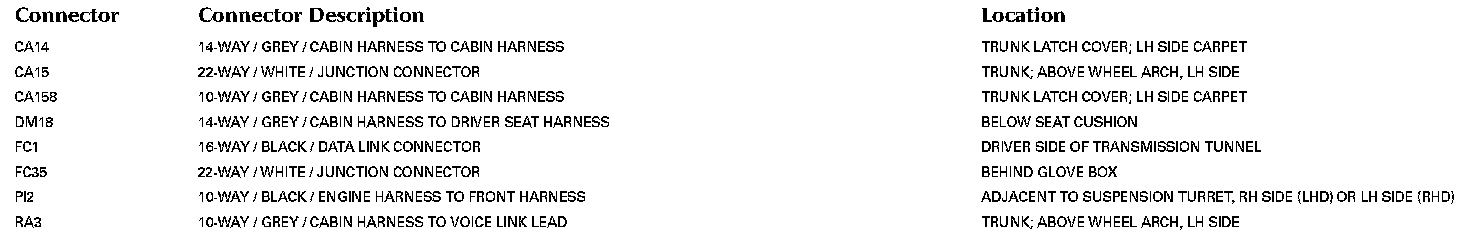

Harness In-line Connectors And Junction Connectors:

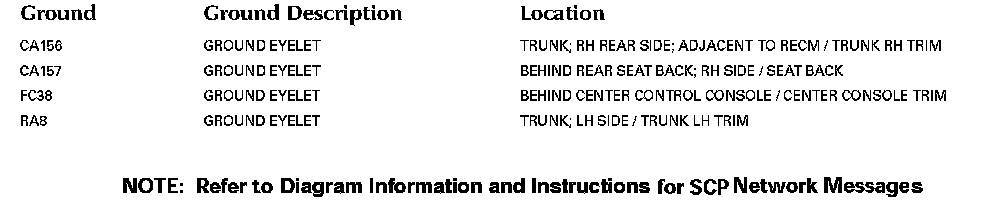

Grounds:
