Fig 20.2
Fig 20.2
Audio Control Protocol Network; Serial Data Links

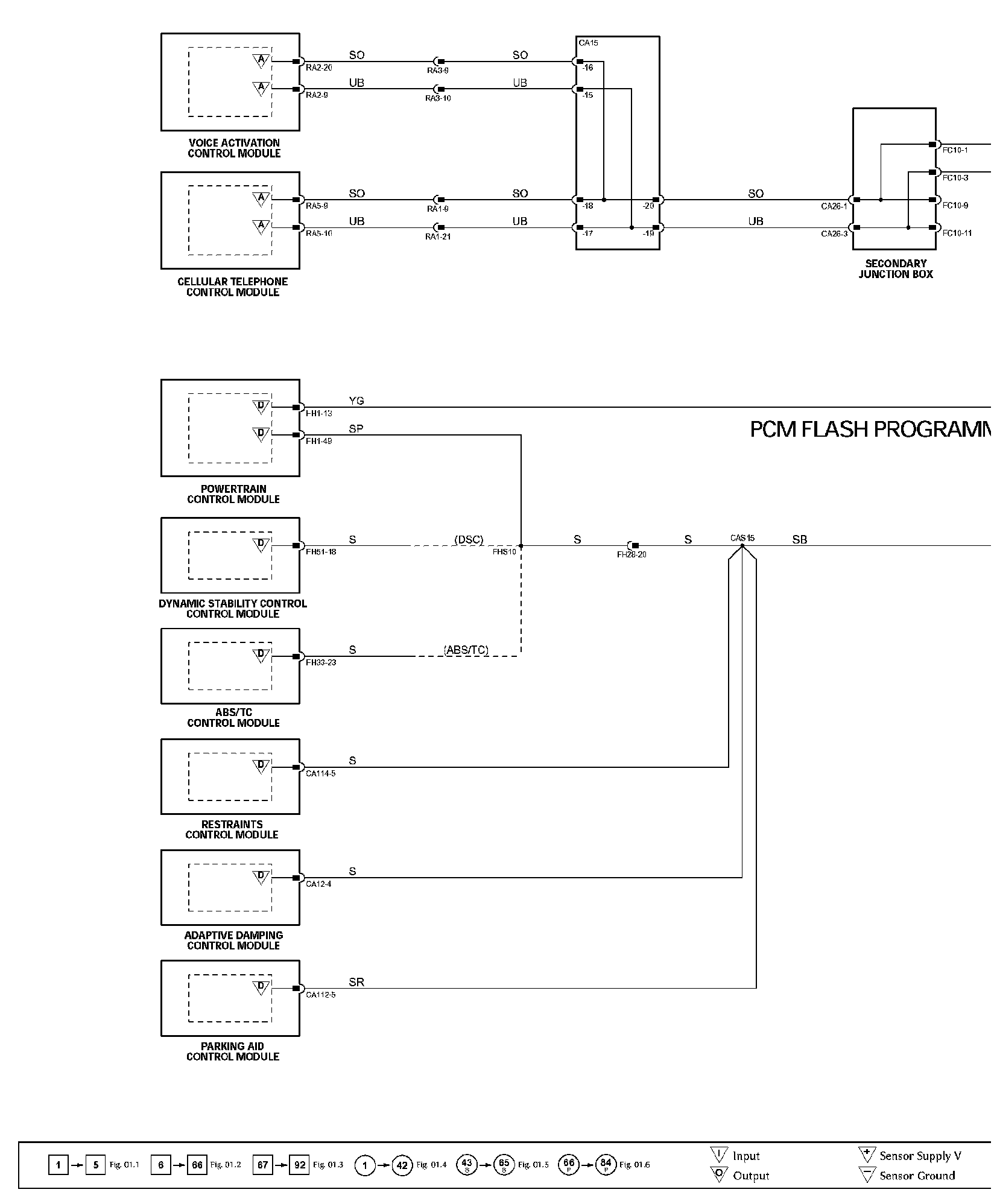

_� Wiring Diagram:

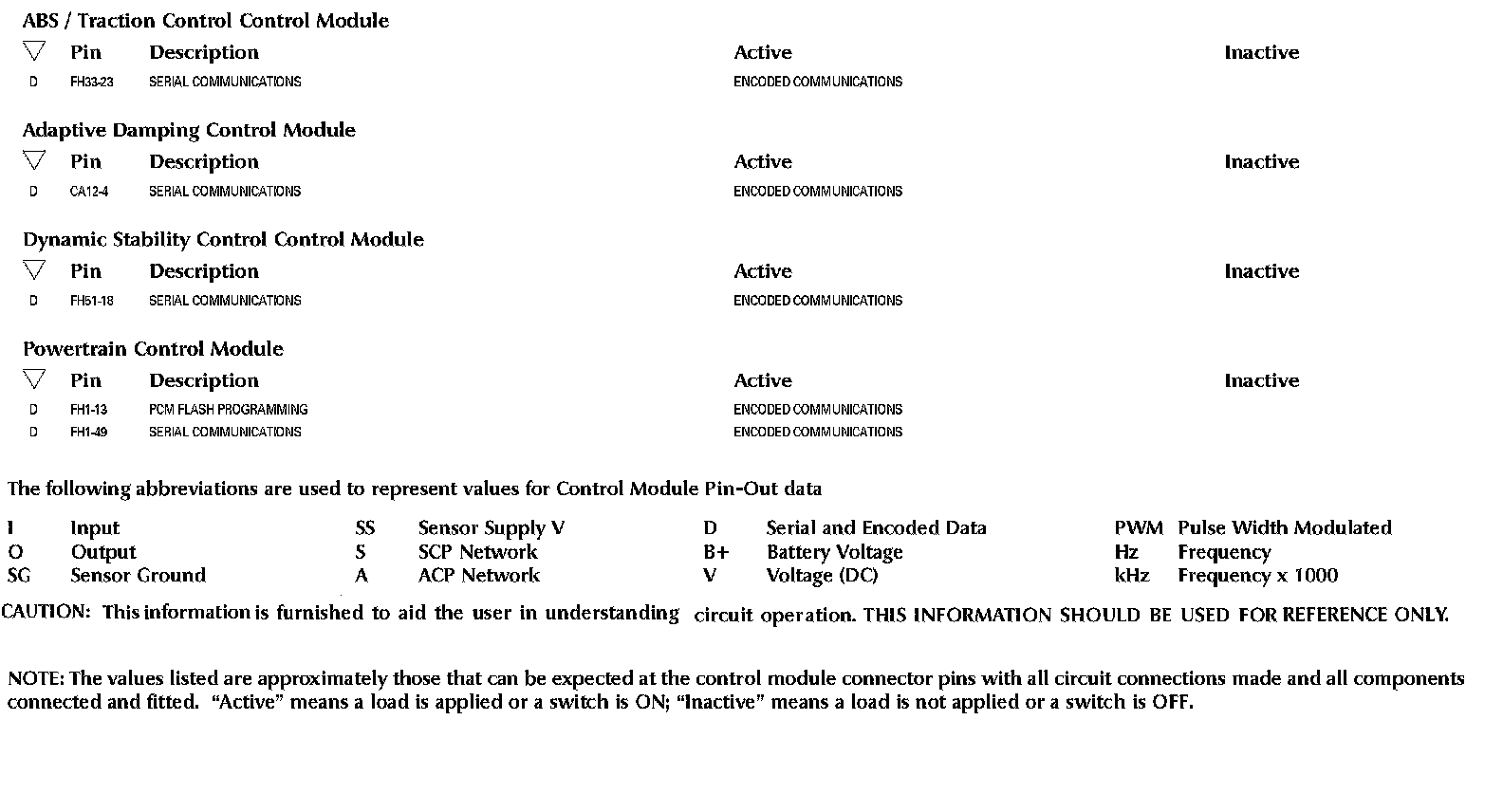

Control Module Pin-out Information:

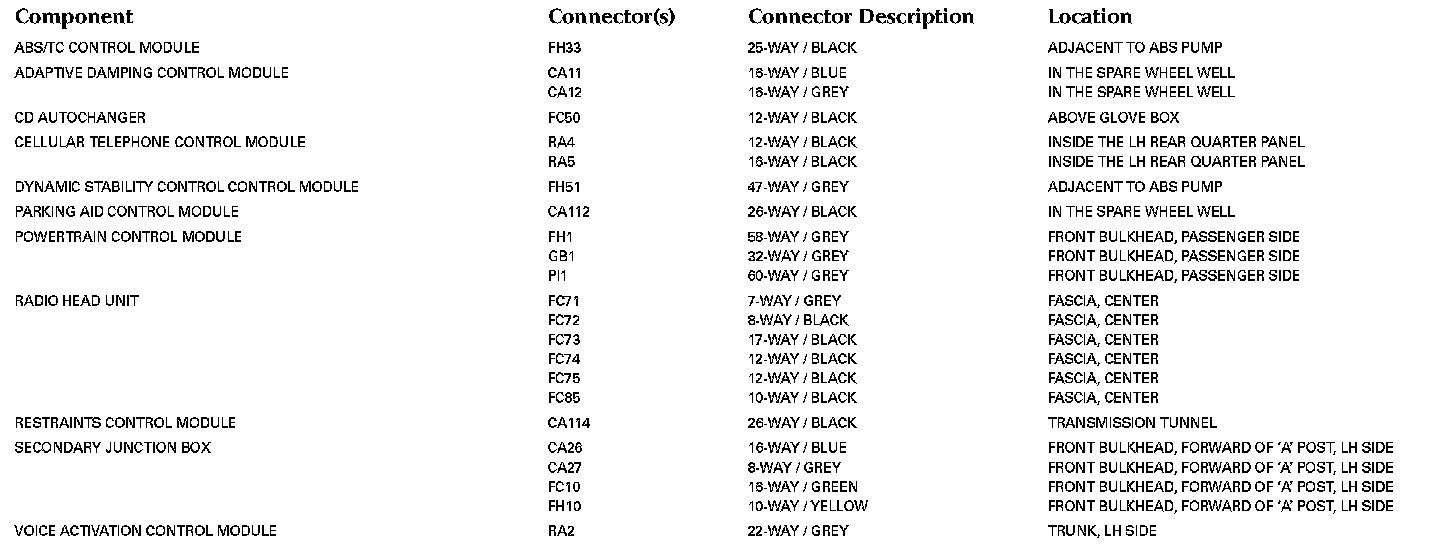

Components:

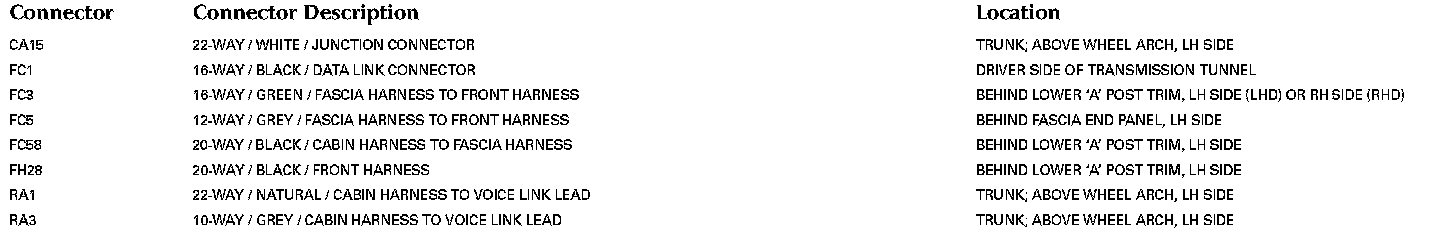

Harness In-line Connectors And Junction Connectors:
Grounds:
