Auxiliary Water Pump: Service and Repair

Removal
1. Drain the cooling system.
2. Remove the air intake tube.
3. Remove the receiver drier.

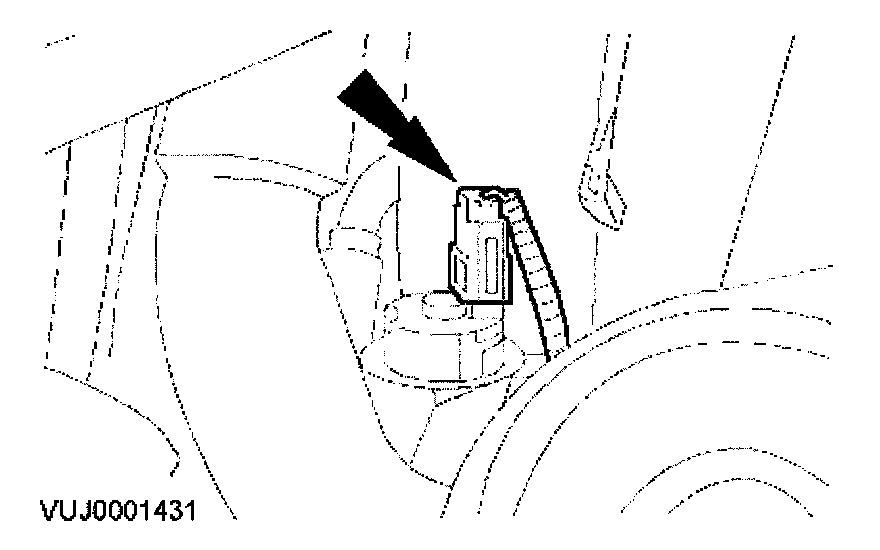

4. Disconnect the auxiliary coolant flow pump electrical connector.

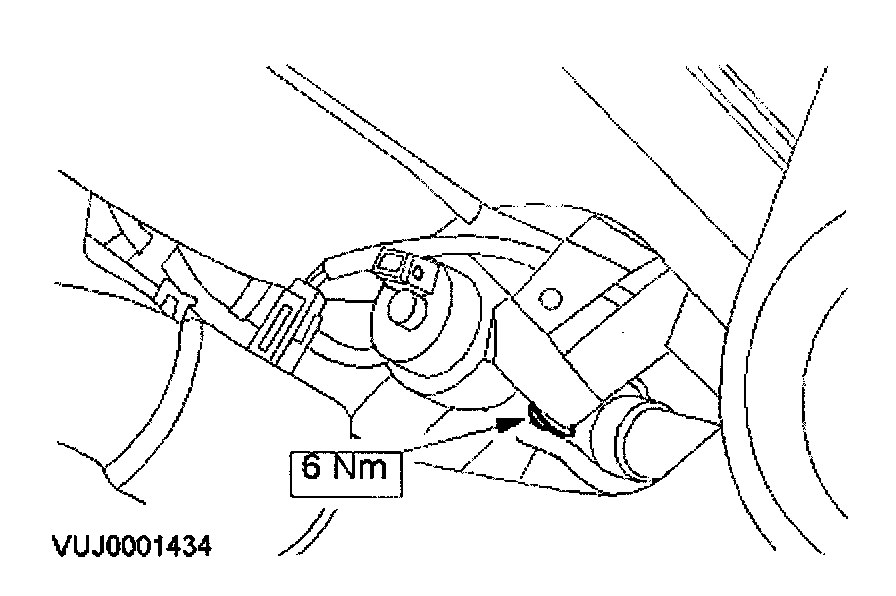

5. Remove the auxiliary coolant flow pump bolts.





6. Remove the auxiliary coolant flow pump.


Installation





1. To install, reverse the removal procedure.
