Emission Control Systems: Diagrams

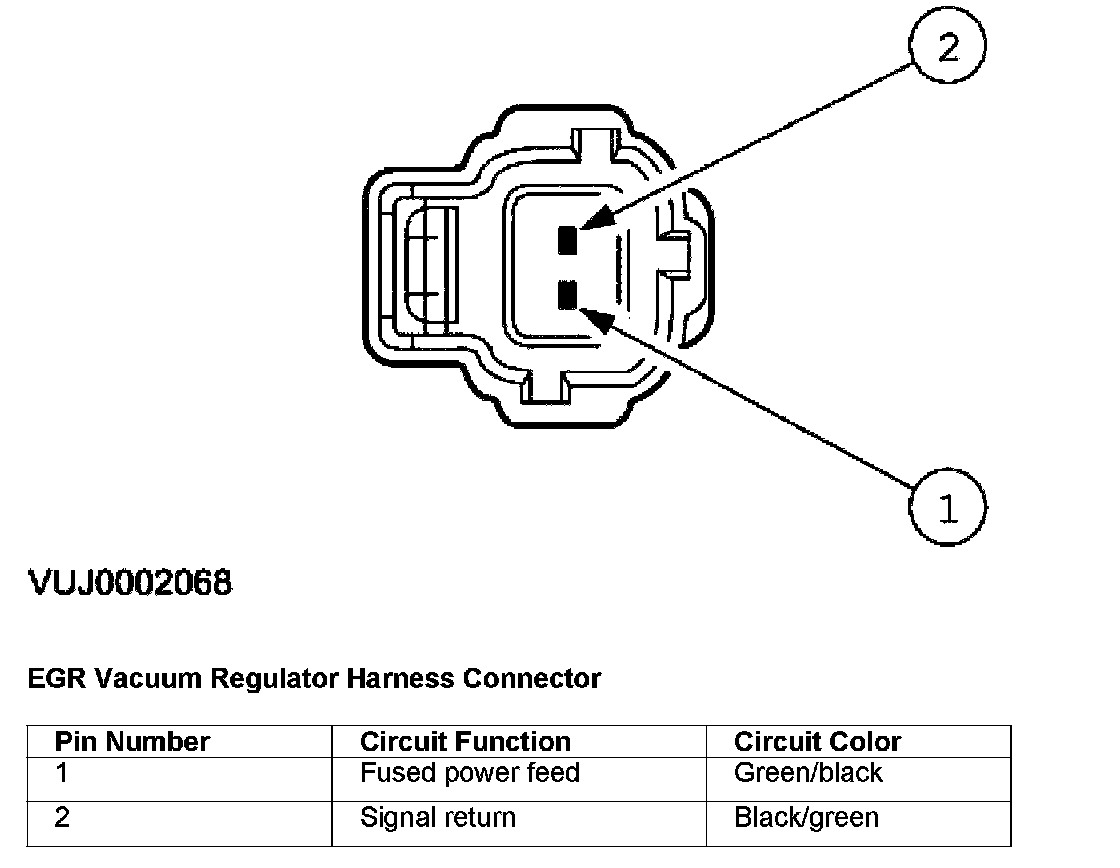

EGR Vacuum Regulator Harness Connector:

Differential Pressure Feedback EGR Sensor Harness Connector:

Powertrain Control Module Harness Connector:

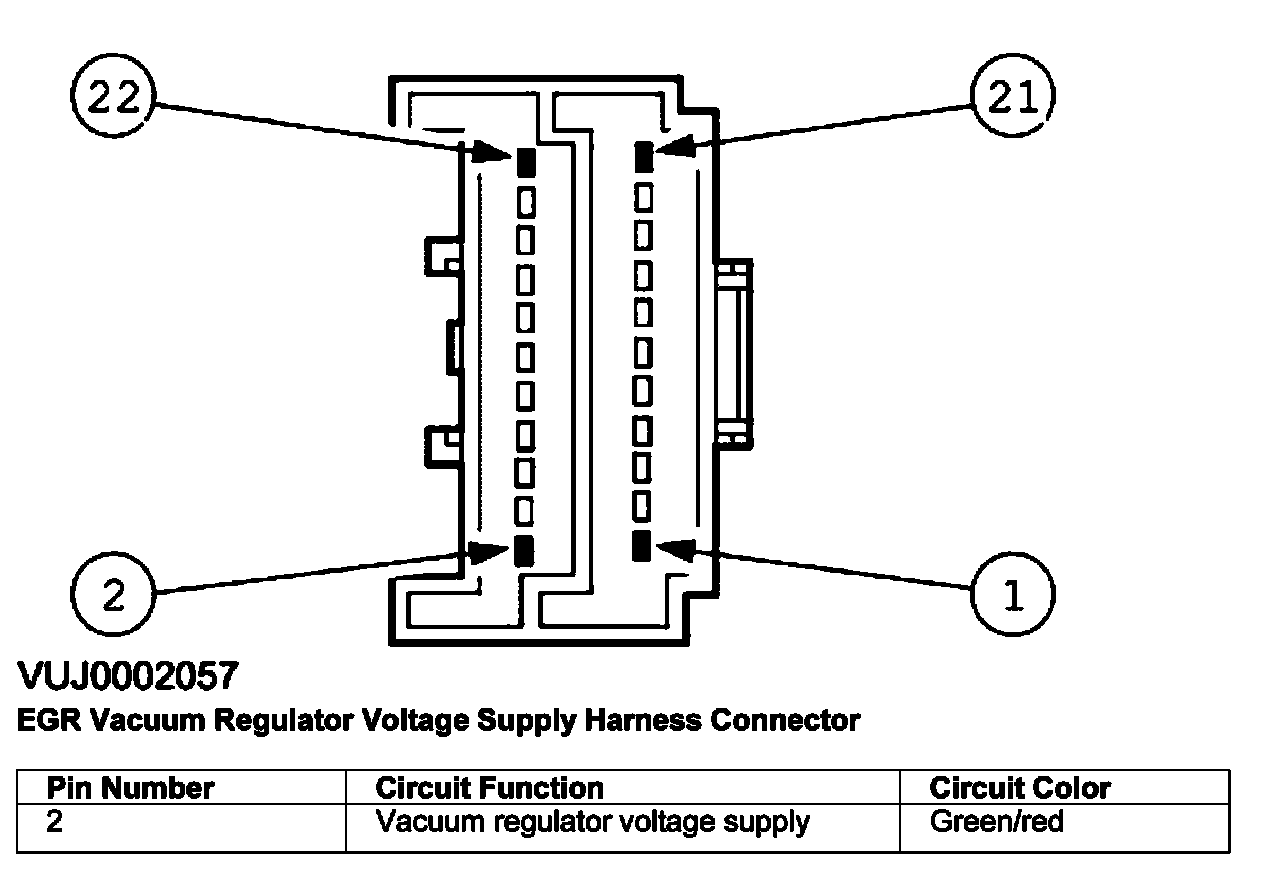

EGR Vacuum Regulator Voltage Supply Harness Connector:
