Fuel Charging and Controls

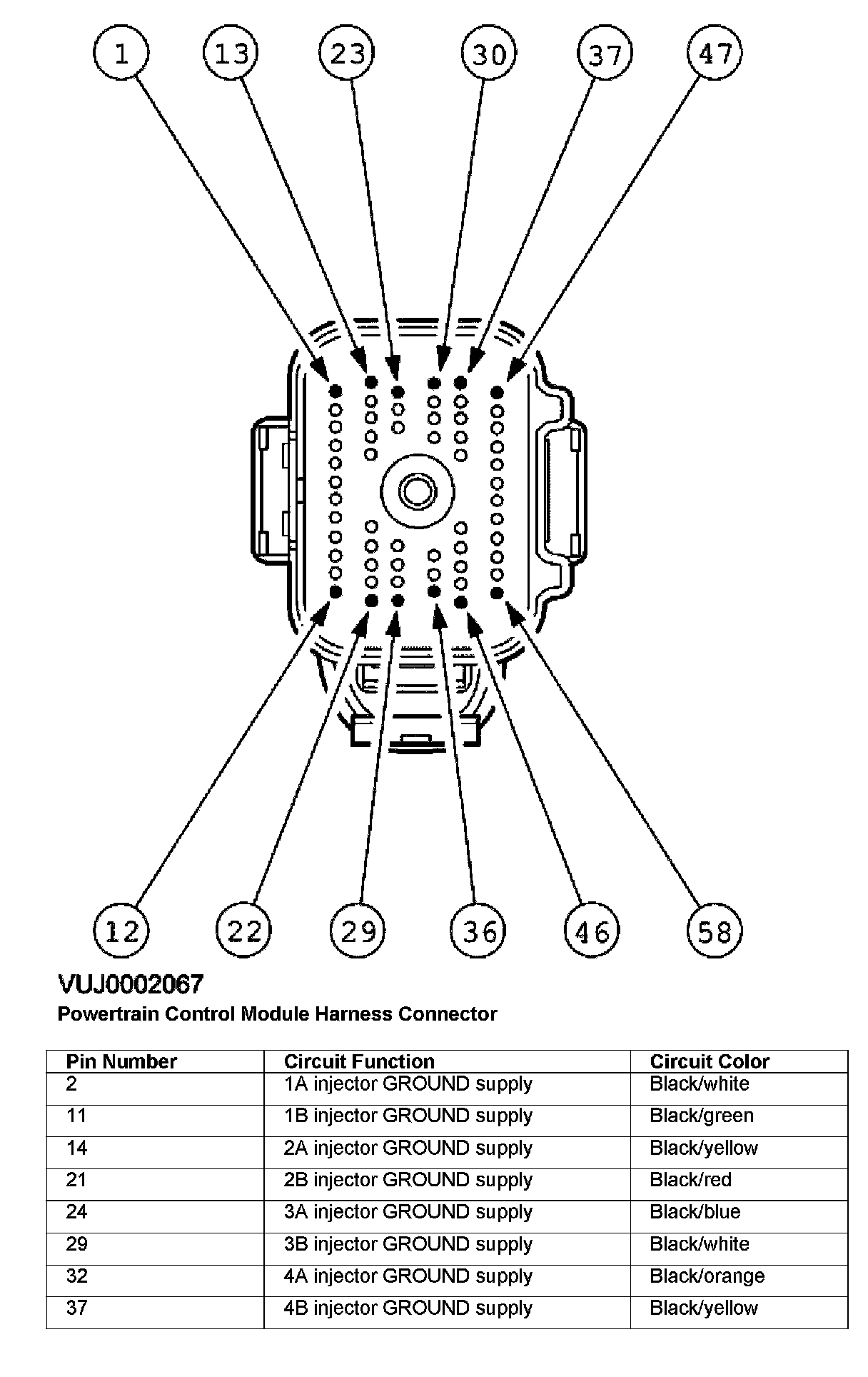

Powertrain Control Module Harness Connector:

1A Injector Harness Connector:

2A Injector Harness Connector:

3A Injector Harness Connector:

4A Injector Harness Connector:

1B Injector Harness Connector:

2B Injector Harness Connector:

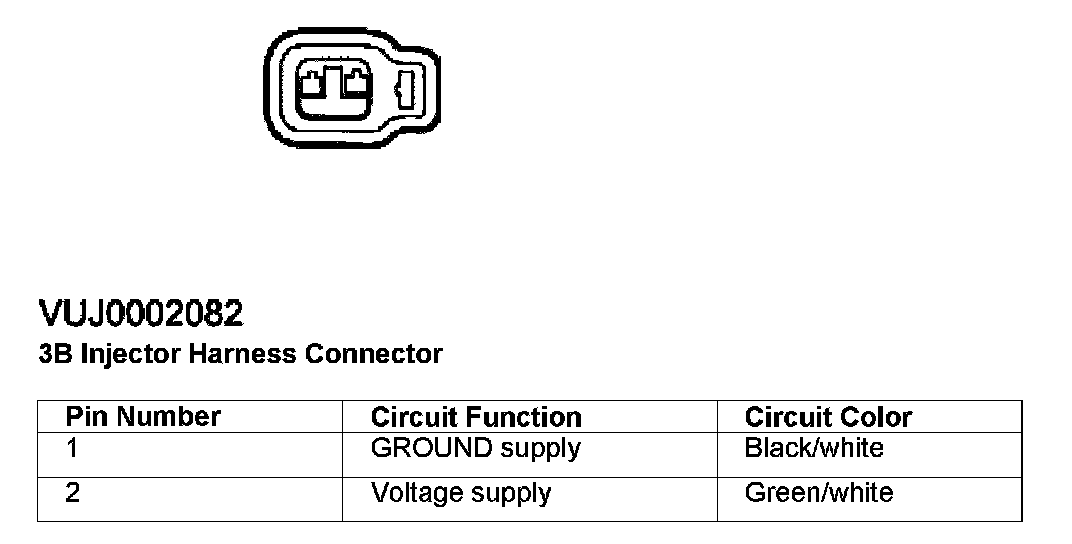

3B Injector Harness Connector:

4B Injector Harness Connector:

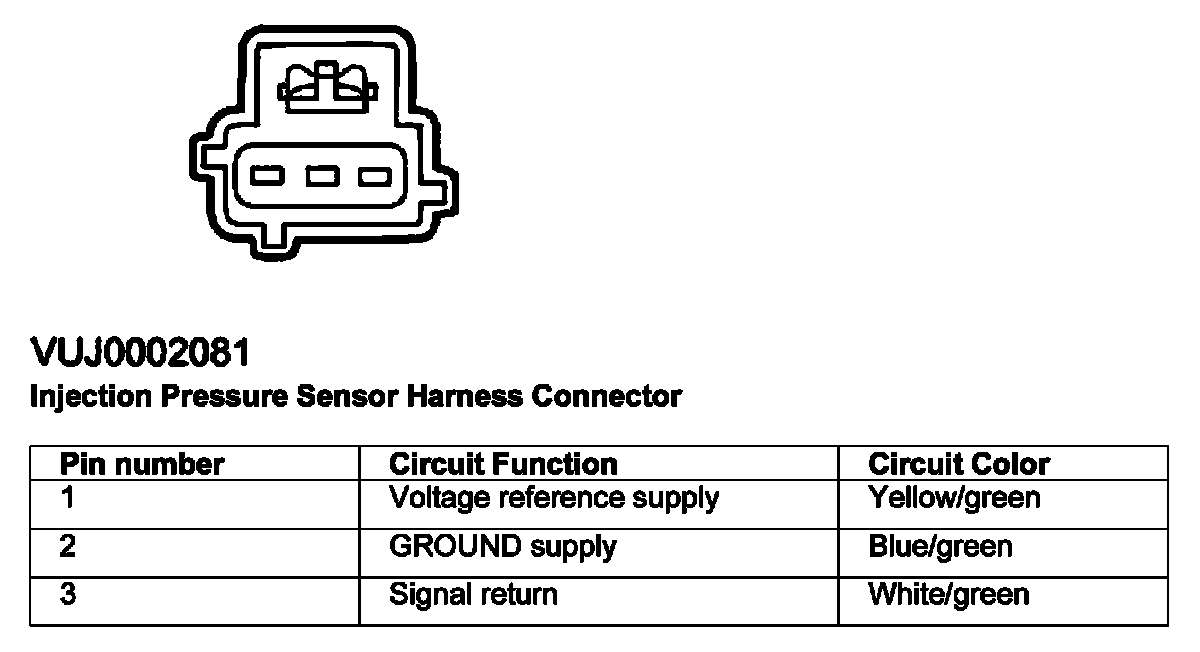

Injection Pressure Sensor Harness Connector:
