Jaguar
>>
2002
>>
S-Type (X200) V8-4.0L (AJ28)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Fuel System
Fuel System

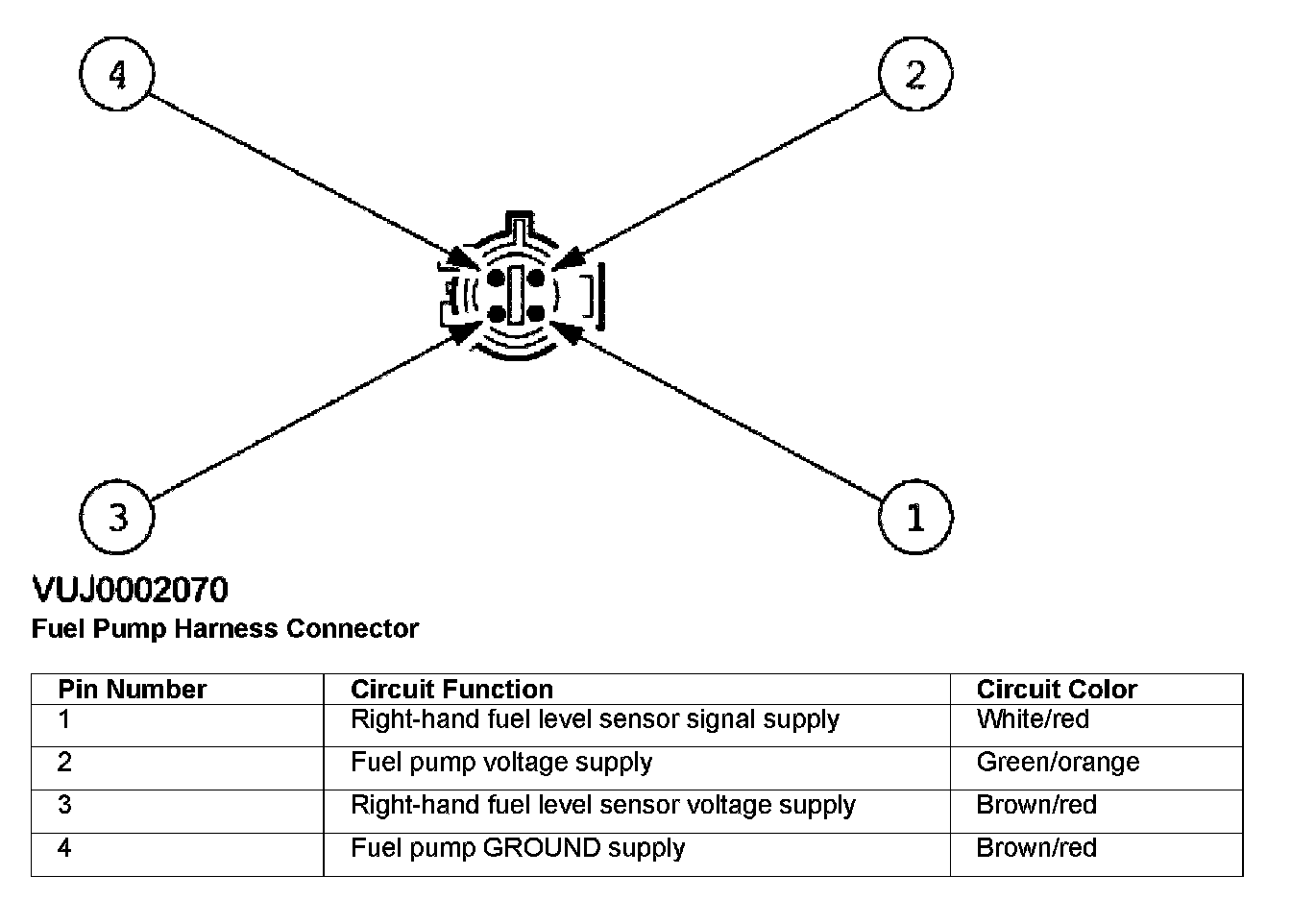

Fuel Pump Harness Connector:
Fuel Pump Diode Connector:

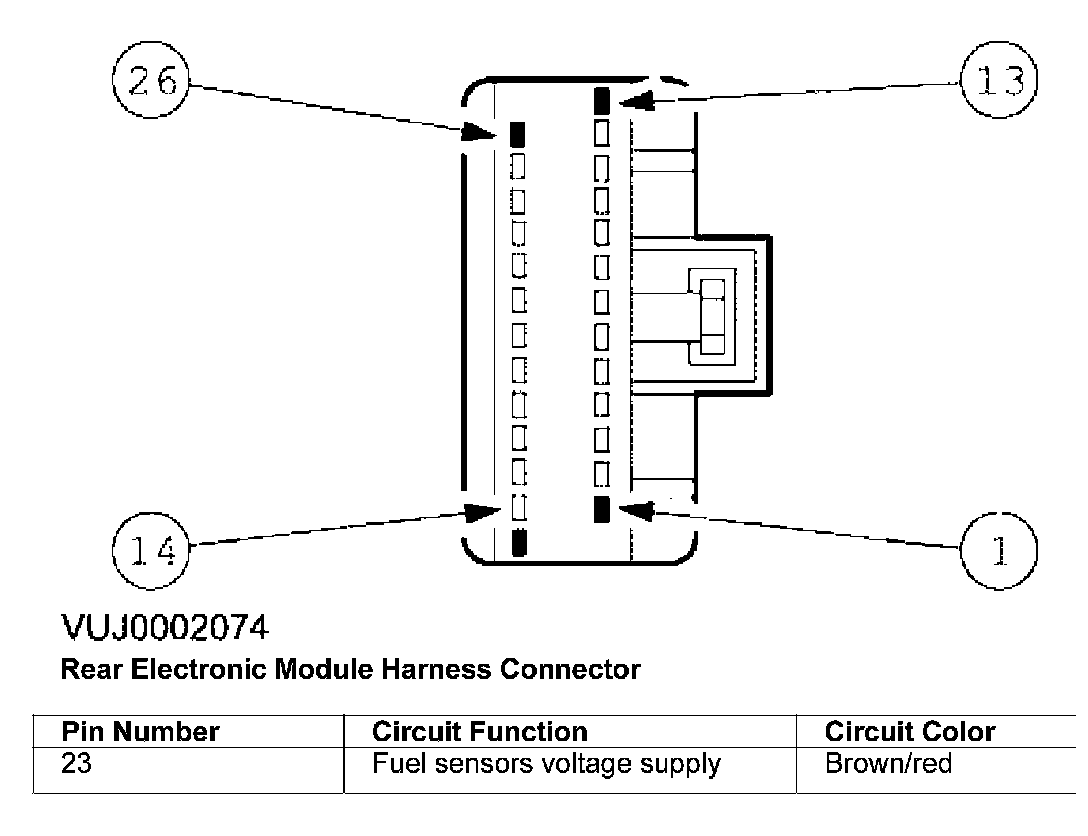

Rear Electronic Module Harness Connector:

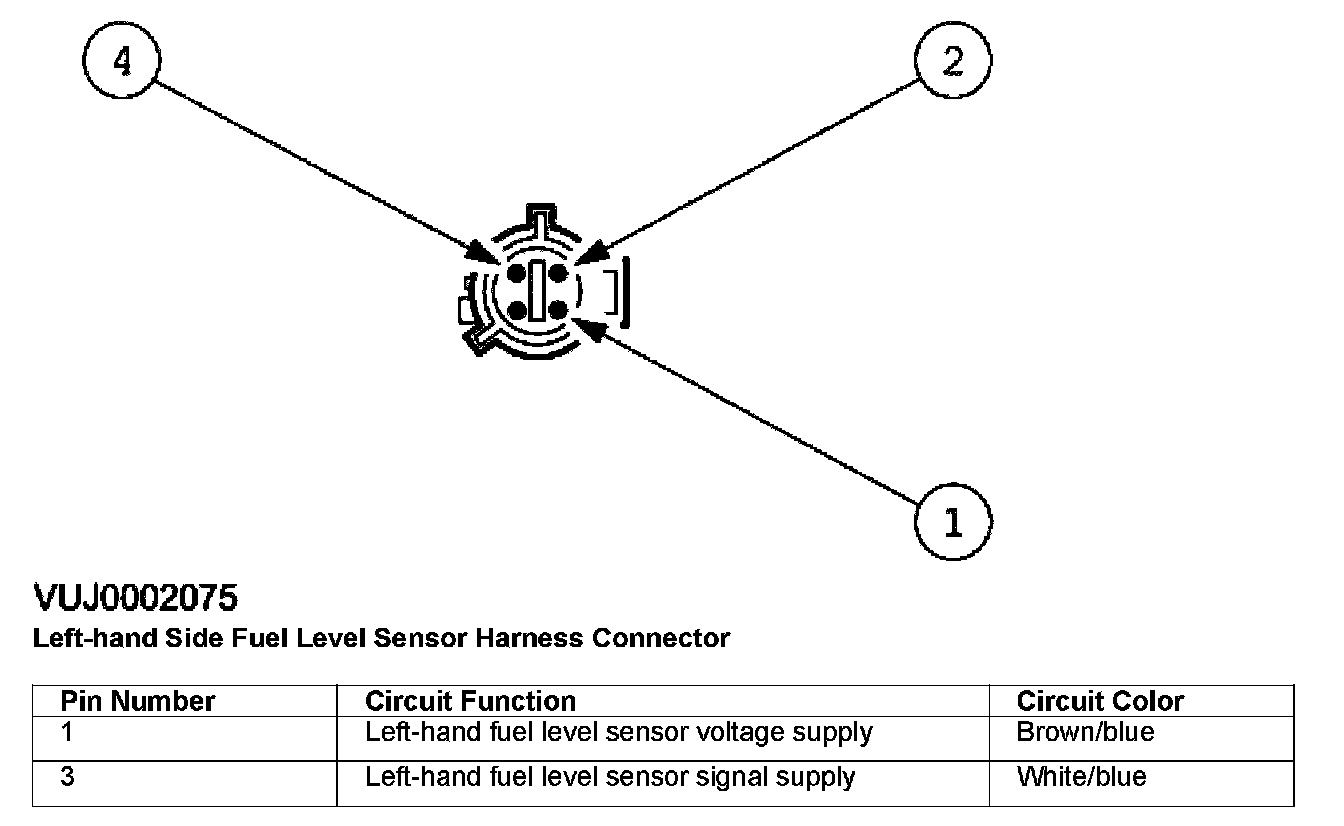

Left-hand Side Fuel Level Sensor Harness Connector:
Rear Electronic Module Harness Connector:
