Muffler Inlet Pipe

Removal
1. Remove the front wheel and tire.

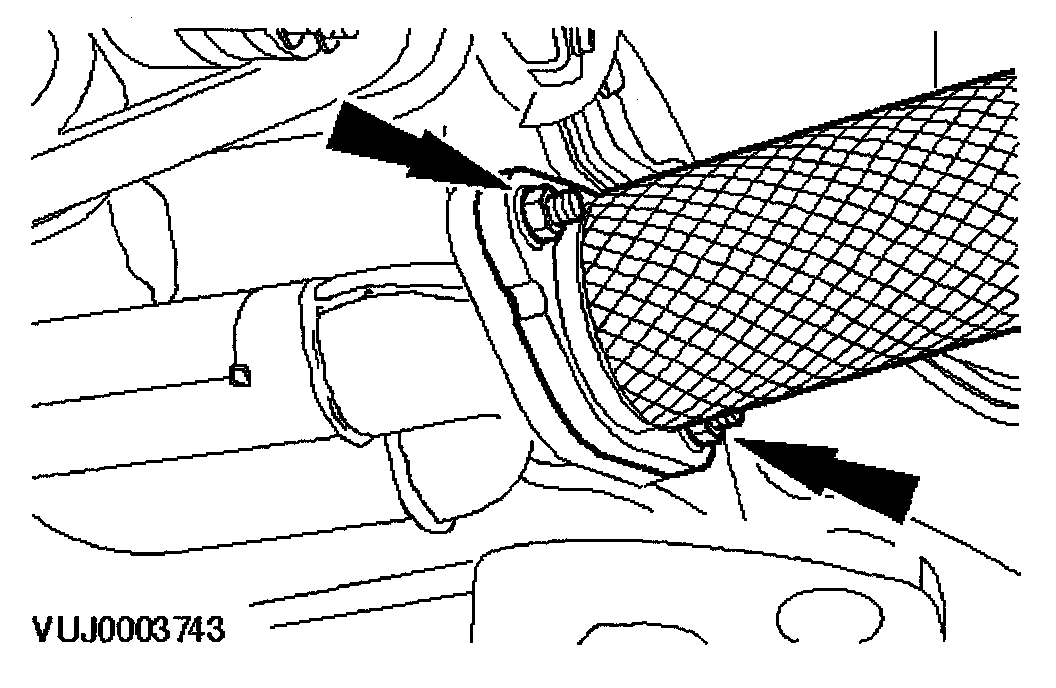

2. Detach and reposition the heat shield.

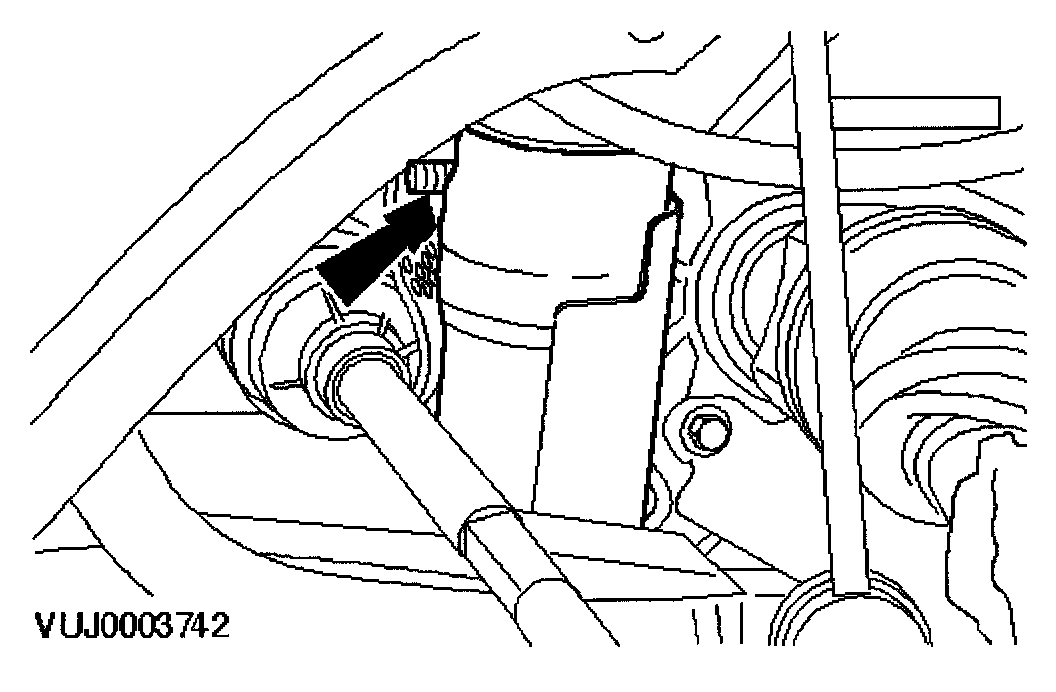

3. Loosen the muffler inlet pipe exhaust clamp nut.

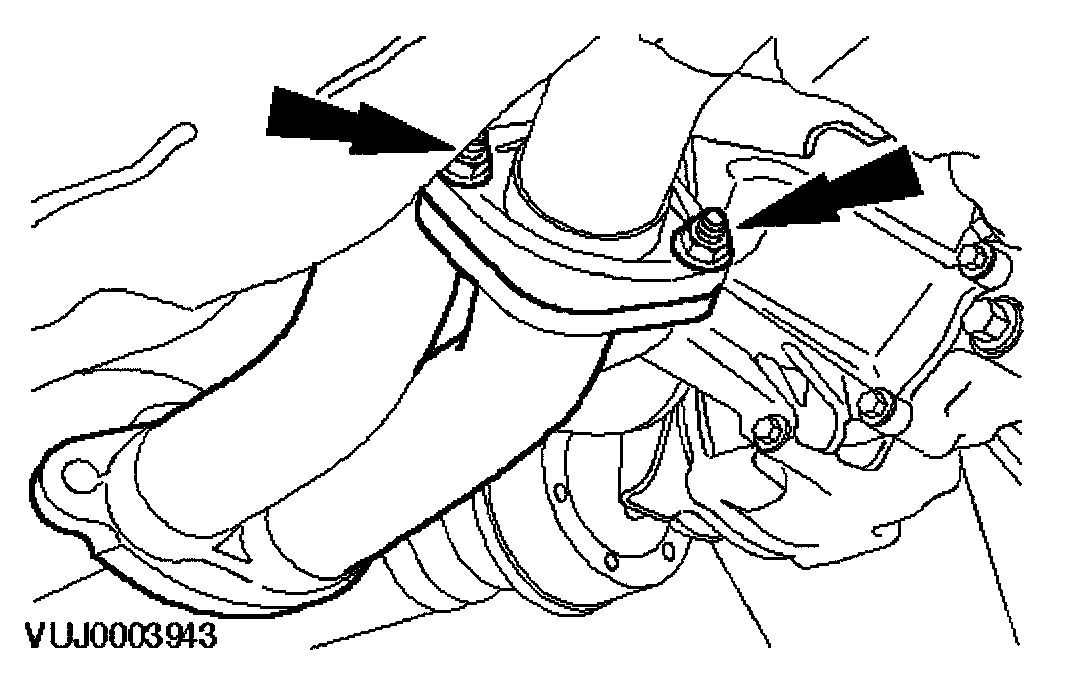

4. Detach the front muffler.
- Remove and discard the gasket.





5. Remove the muffler inlet pipe.





6. Remove the exhaust heat shield.


Installation





1. To install, reverse the removal procedure.
- Tighten to 10 Nm.





2. Tighten to 55 Nm.





3. NOTE: Install a new gasket.

- Tighten to 55 Nm.





4. Tighten to 55 Nm.





5. Tighten to 10 Nm.
