Muffler and Tailpipe

Removal
1. Raise and support the vehicle. Service and Repair

NOTE: Right hand side shown, left hand side similar.

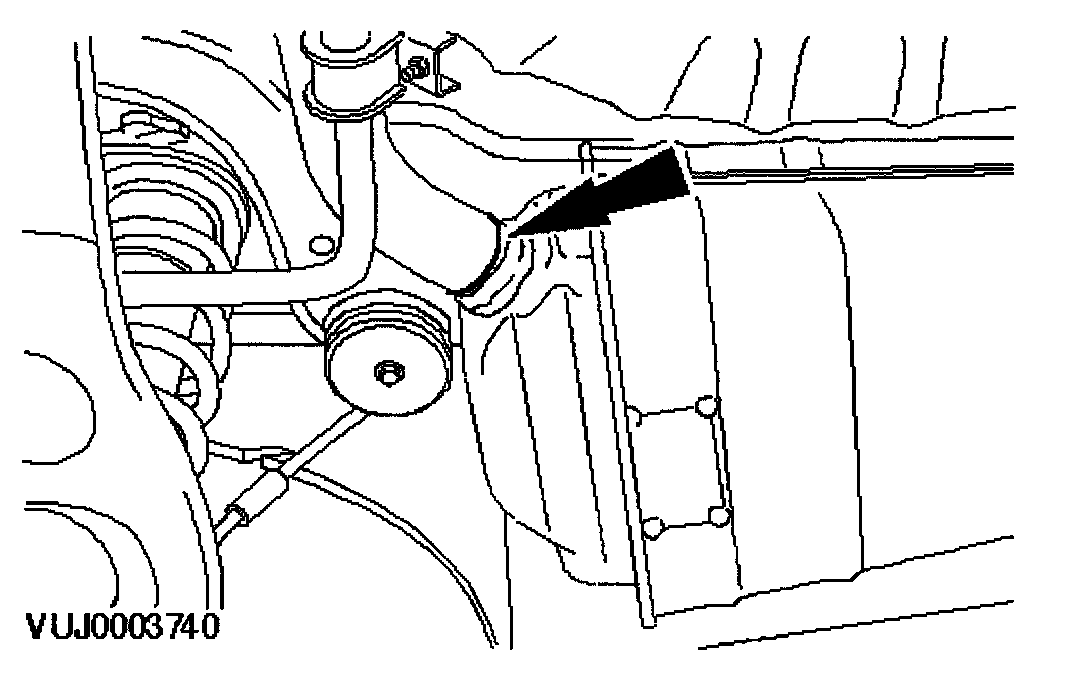

2. Cut the rear muffler 'Y' pipe in front of the welded joint.

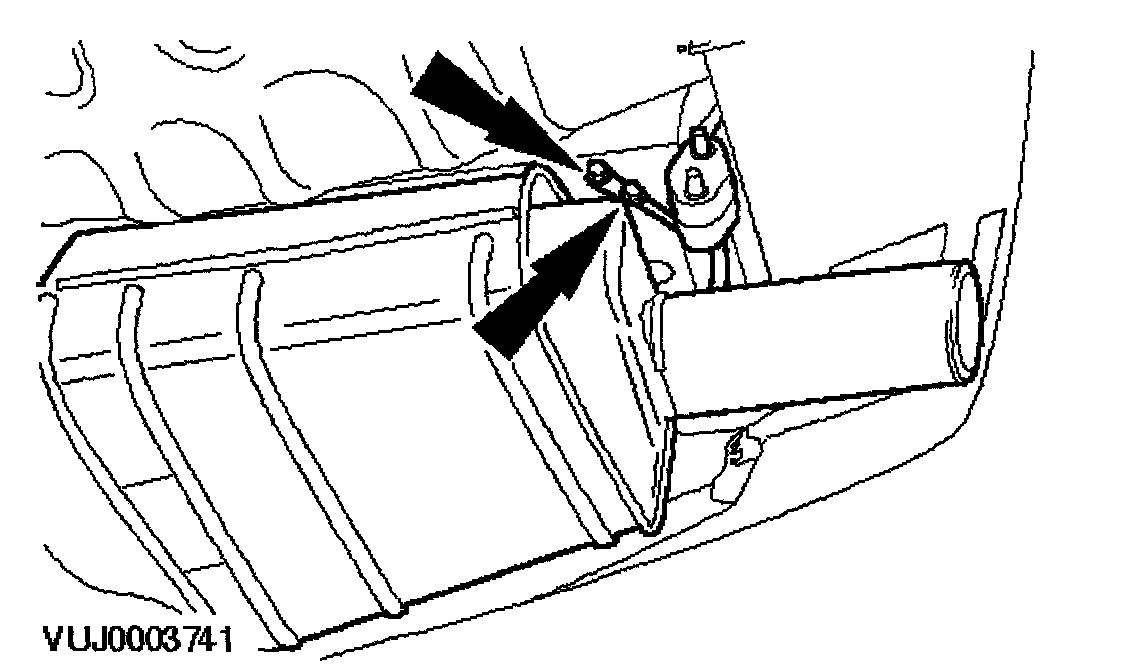

3. Remove the rear muffler and tailpipe.
- Remove the exhaust hanger and insulator.


Installation





CAUTION: The exhaust hanger insulators are constructed of a special material. Use only the correct specification exhaust hanger insulators.

CAUTION: Check the exhaust hanger insulators for damage or fatigue. Install new exhaust hanger insulators if required.

NOTE: Make sure the rear muffler 'Y' pipe does not have any burrs.

NOTE: Make sure the rear muffler and tailpipe is central to the bumper aperture.

1. Install the rear muffler and tail pipe.
- Tighten to 55 Nm.





2. Tighten to 25 Nm.
