Safety Belt Buckle and Pretensioner

Removal

WARNING: BEFORE PROCEEDING READ ALL SERVICE PRECAUTIONS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH Service Precautions

NOTE: The front seat belts, which incorporate the seat belt retractors and pretensioners are supplied as an assembly and not serviceable components.

1. Disconnect the battery ground cable.
2. Remove the front seat.

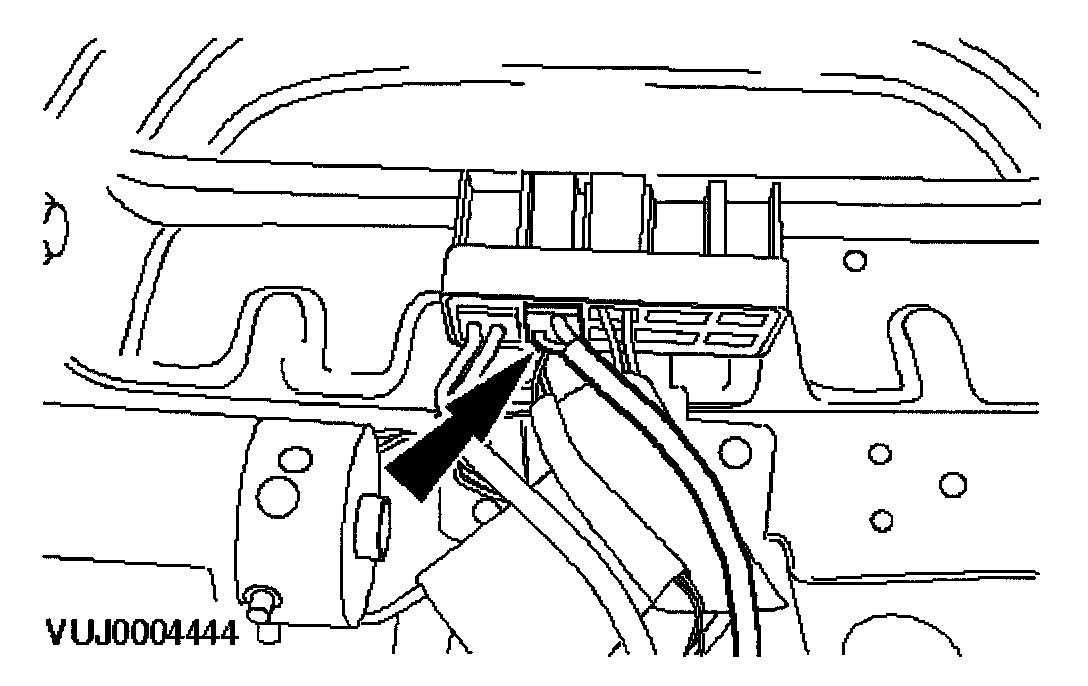

3. Disconnect the safety belt pretensioner electrical connector.

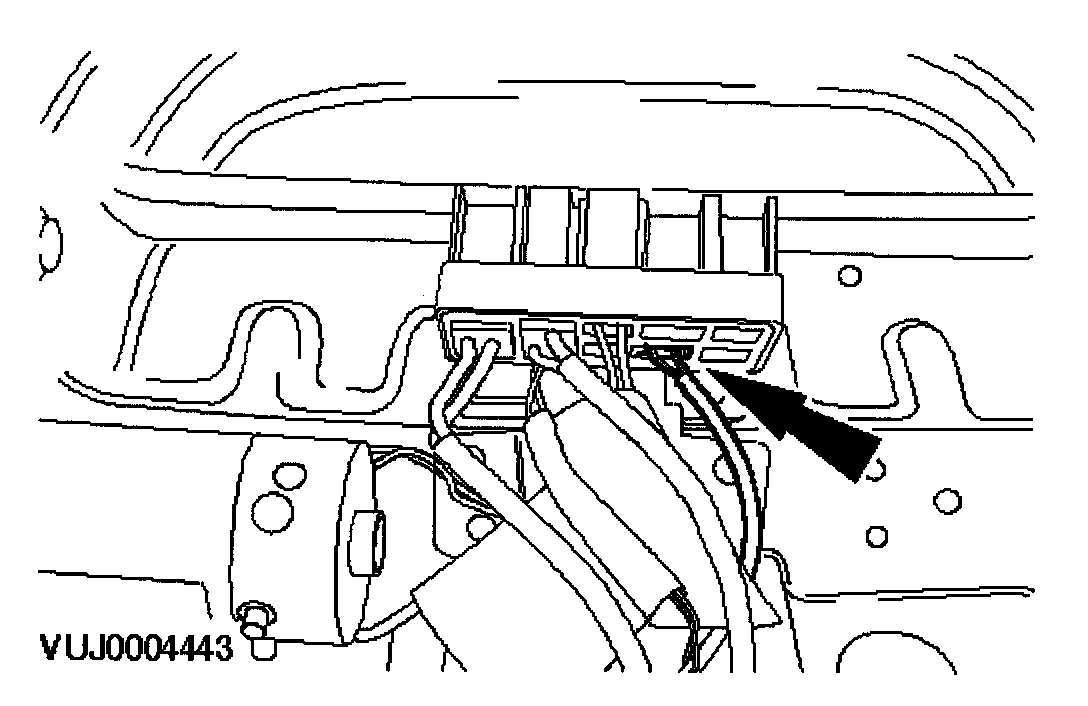

4. Disconnect the safety belt buckle electrical connector.

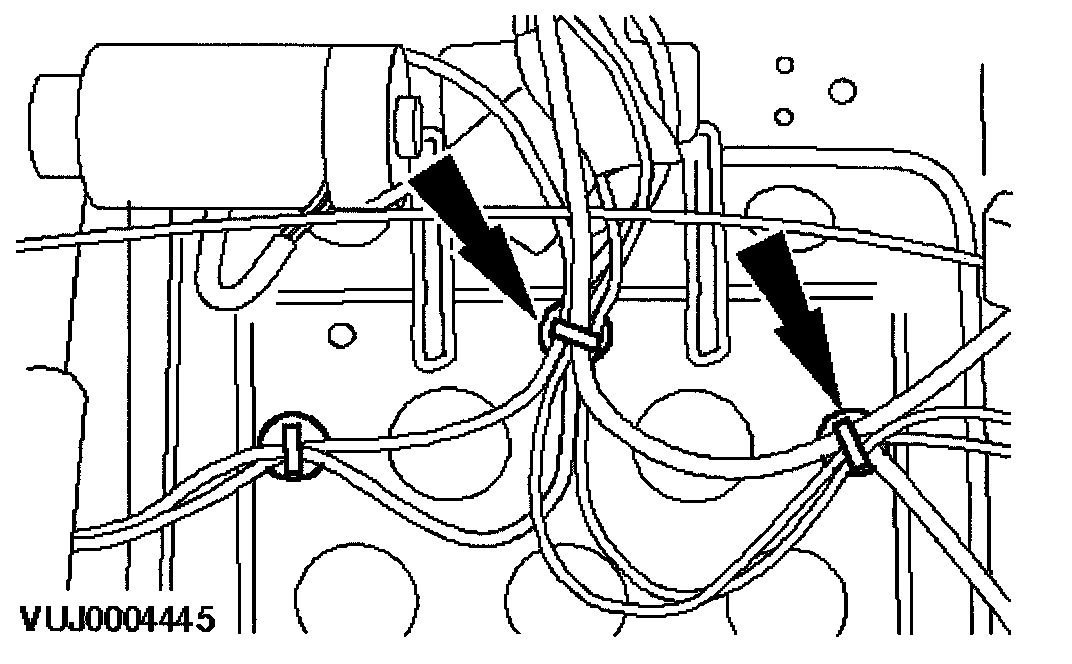

5. Detach the safety belt buckle and pretensioner wiring harness.

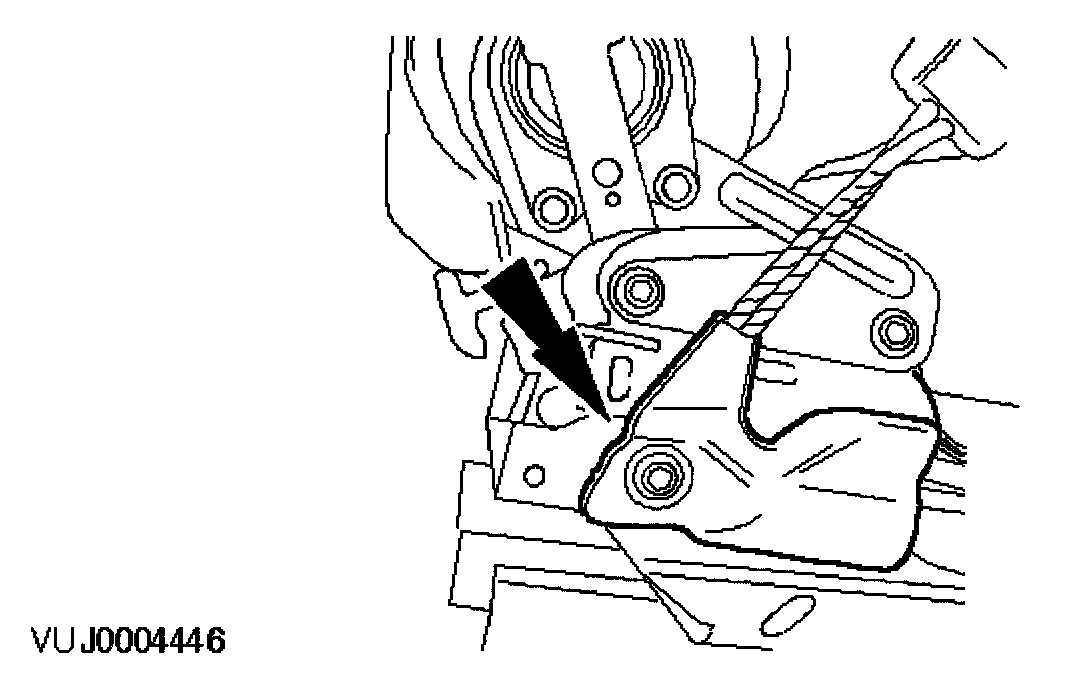

6. Remove the safety belt buckle and pretensioner.
- Remove the retaining bolt.


Installation

NOTE: Repair is made by replacement only. If a part is replaced and the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.





1. To install reverse the removal procedure.
- Tighten to 50 Nm.
