Exhaust Manifold

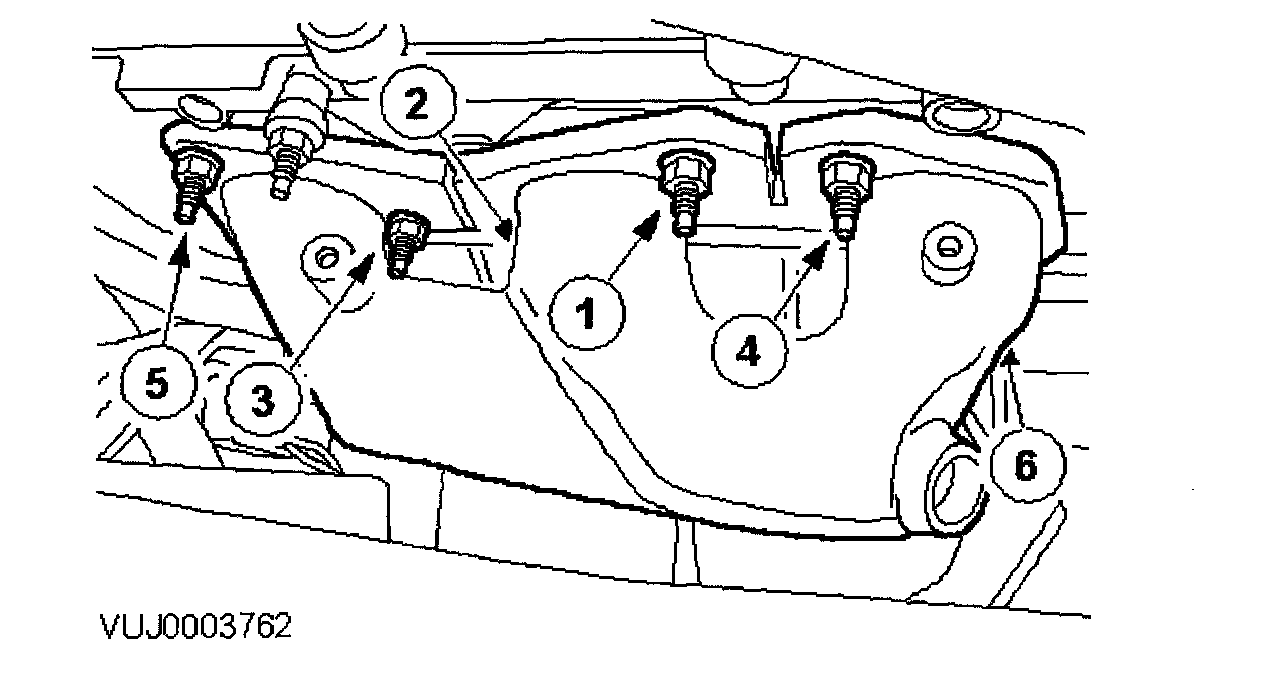

Exhaust Manifold Right Side





Tightening Sequence
Torque 20 Nm

Exhaust Manifold Left Side





Tightening Sequence
Torque 20 Nm
