Antenna: Service and Repair

Removal and Installation, Module

Removal
1. Remove the C-pillar trim.

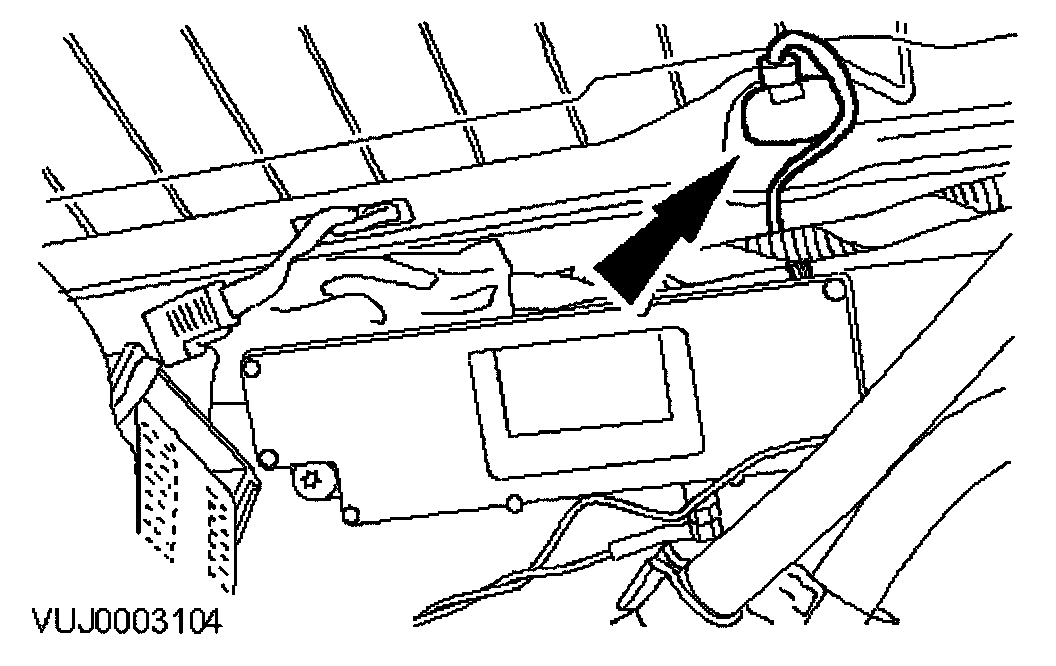

2. Disconnect the antenna cable electrical connector.





3. Detach the module.
1. Remove the module retaining bolt.
2. Detach the module.

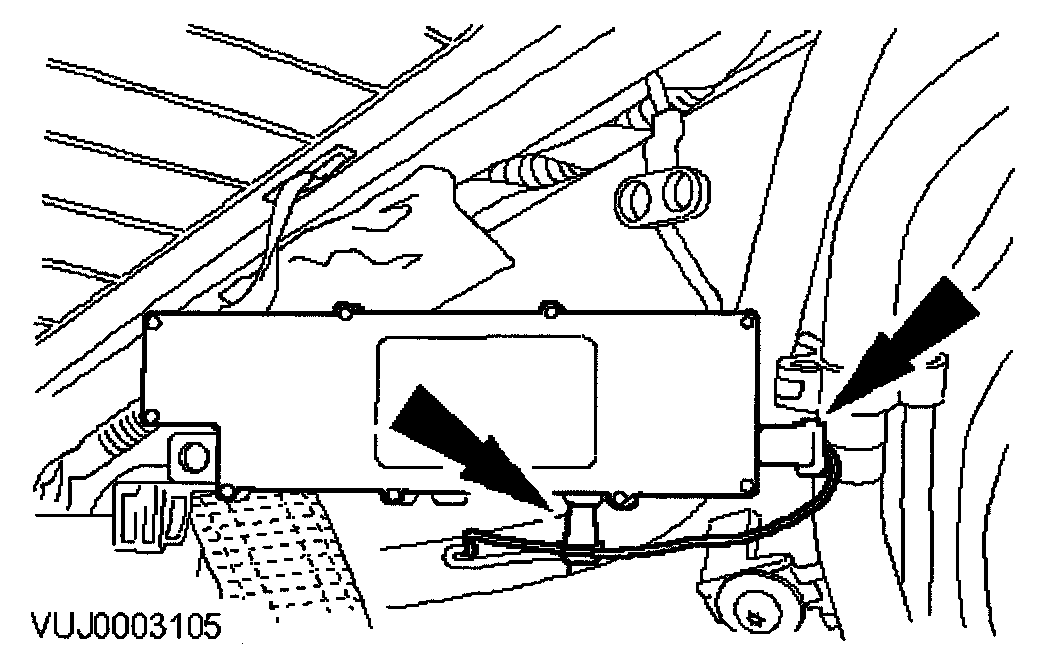

4. Remove the module.
- Disconnect the module electrical connectors.


Installation





1. To install, reverse the removal procedure.
- Tighten to 9 Nm.
