Ignition System
Ignition System
Ignition System

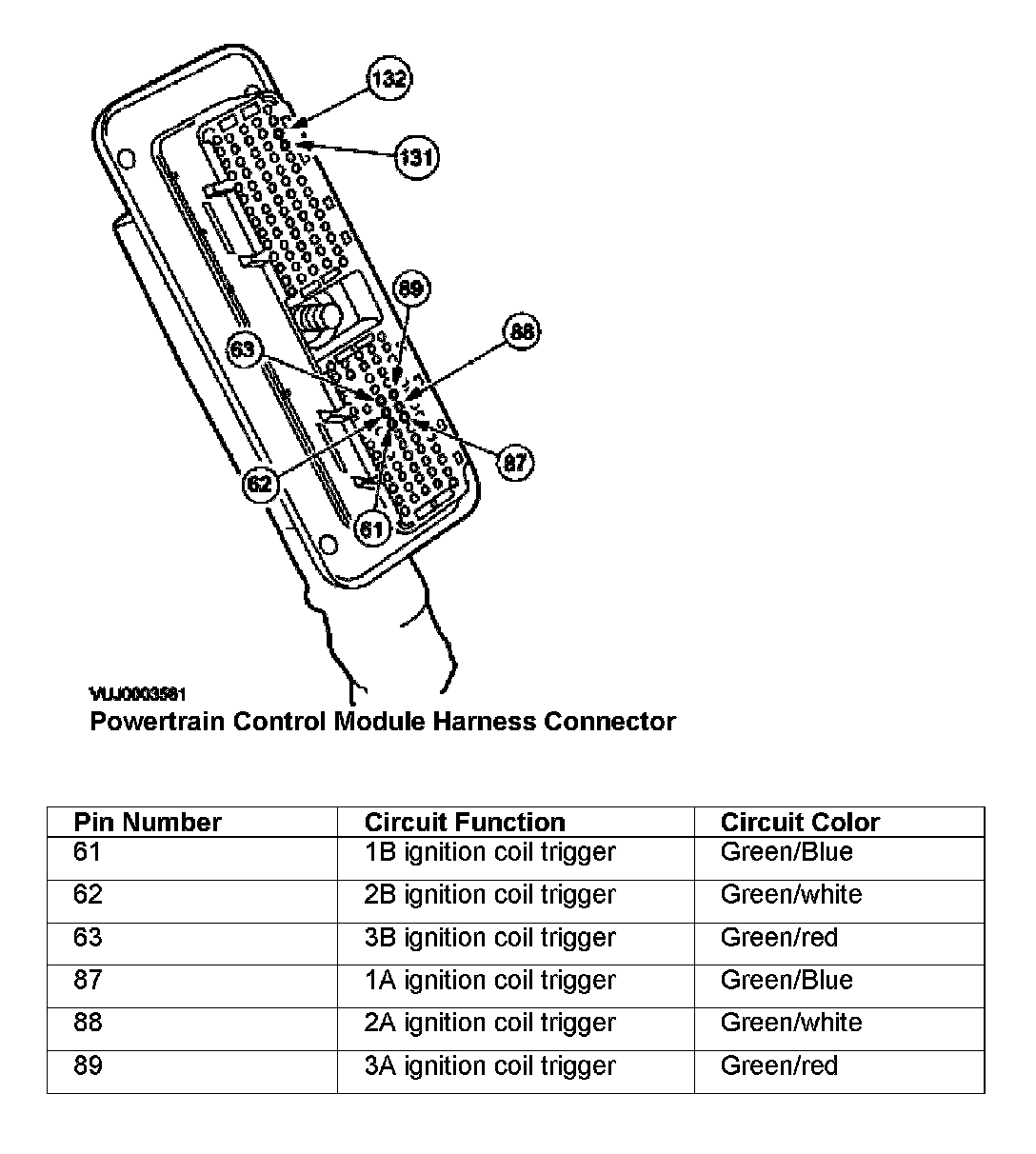

Powertrain Control Module Harness Connector:
1B, 2B, 3B Ignition Coil Harness Connectors:
1A, 2A, 3A, 1B, 2B, 3B Ignition Coils:
