Ambient Temperature Sensor / Switch HVAC: Service and Repair

Removal

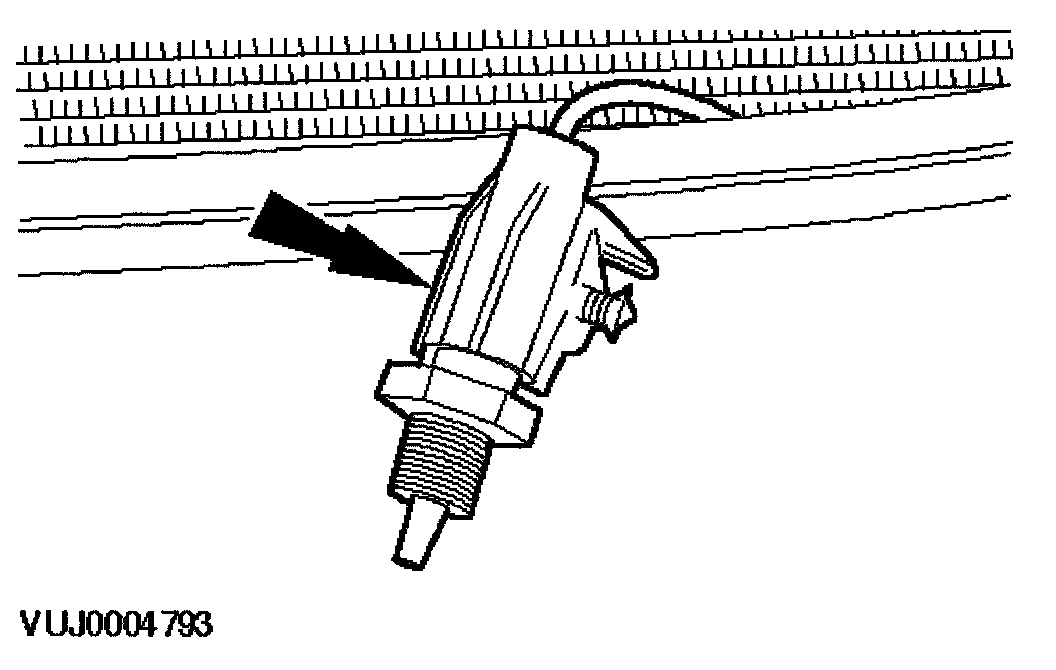

1. Detach the ambient air temperature sensor from the front panel.





2. Remove the ambient air temperature sensor.

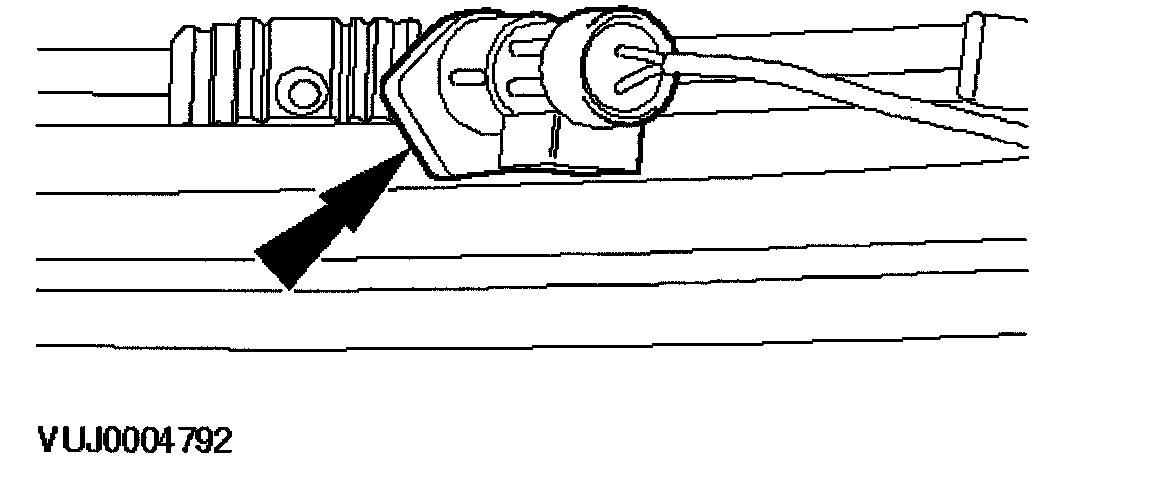

- Disconnect the electrical connector.


Installation
1. To install, reverse the removal procedure.
