Center Mounted Brake Lamp: Service and Repair

Removal
1. Remove the headliner. Service and Repair

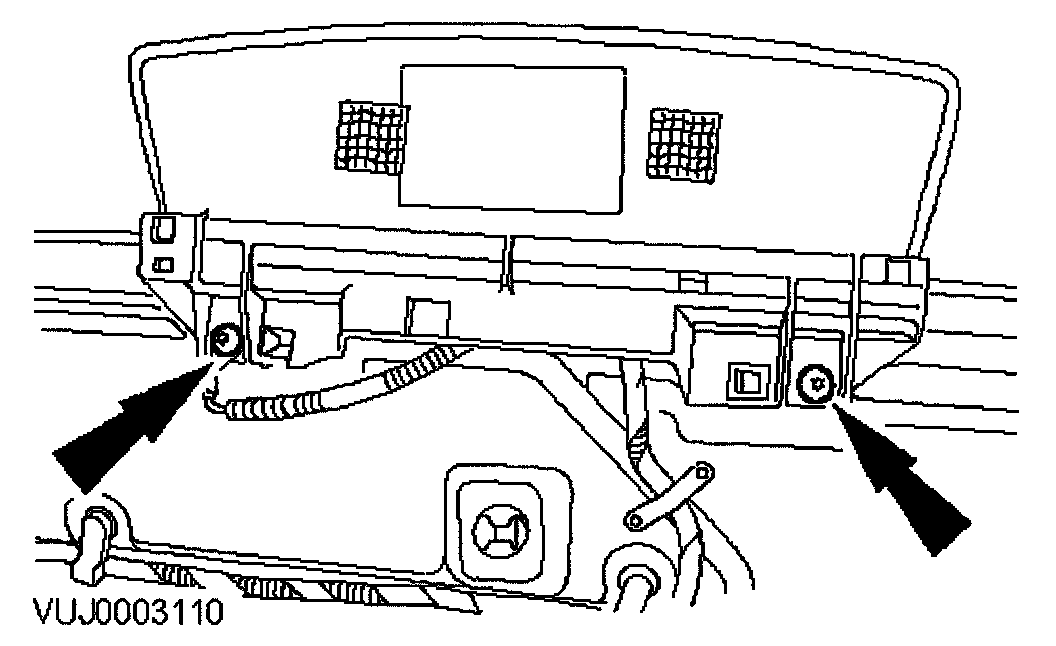

2. Remove the high mounted stoplamp retaining screws.





3. Remove the high mounted stoplamp.

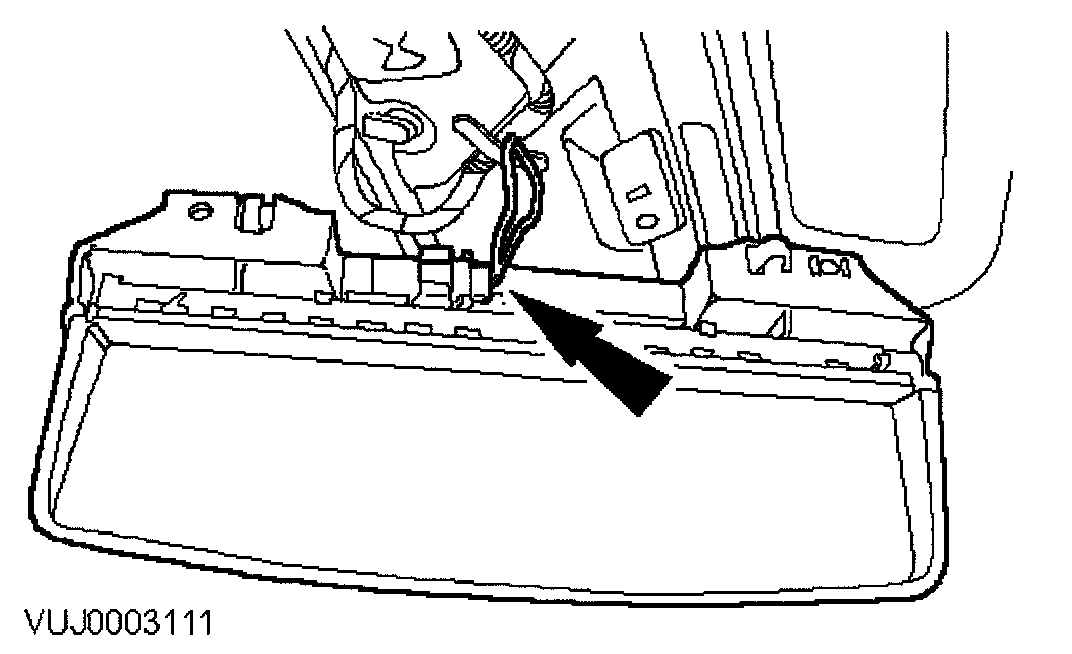

- Disconnect the electrical connector.


Installation
1. To install, reverse the removal procedure.
