Anti-Theft System - (PATS) Diagnostic Flowcharts: Overview

XT419-02

X-TYPE

DATE 07/02

MODEL
2002 MY-ON
X-TYPE

VIN
C00001-ON

Passive Anti-Theft System (PATS) - Diagnostic Flowcharts

Issue:

This bulletin provides diagnostic information for the Passive Anti-Theft System.

Action:

Refer to the following information when diagnosing PATS on a 2002 MY-ON X-TYPE vehicle.

DIAGNOSTIC FLOWCHARTS

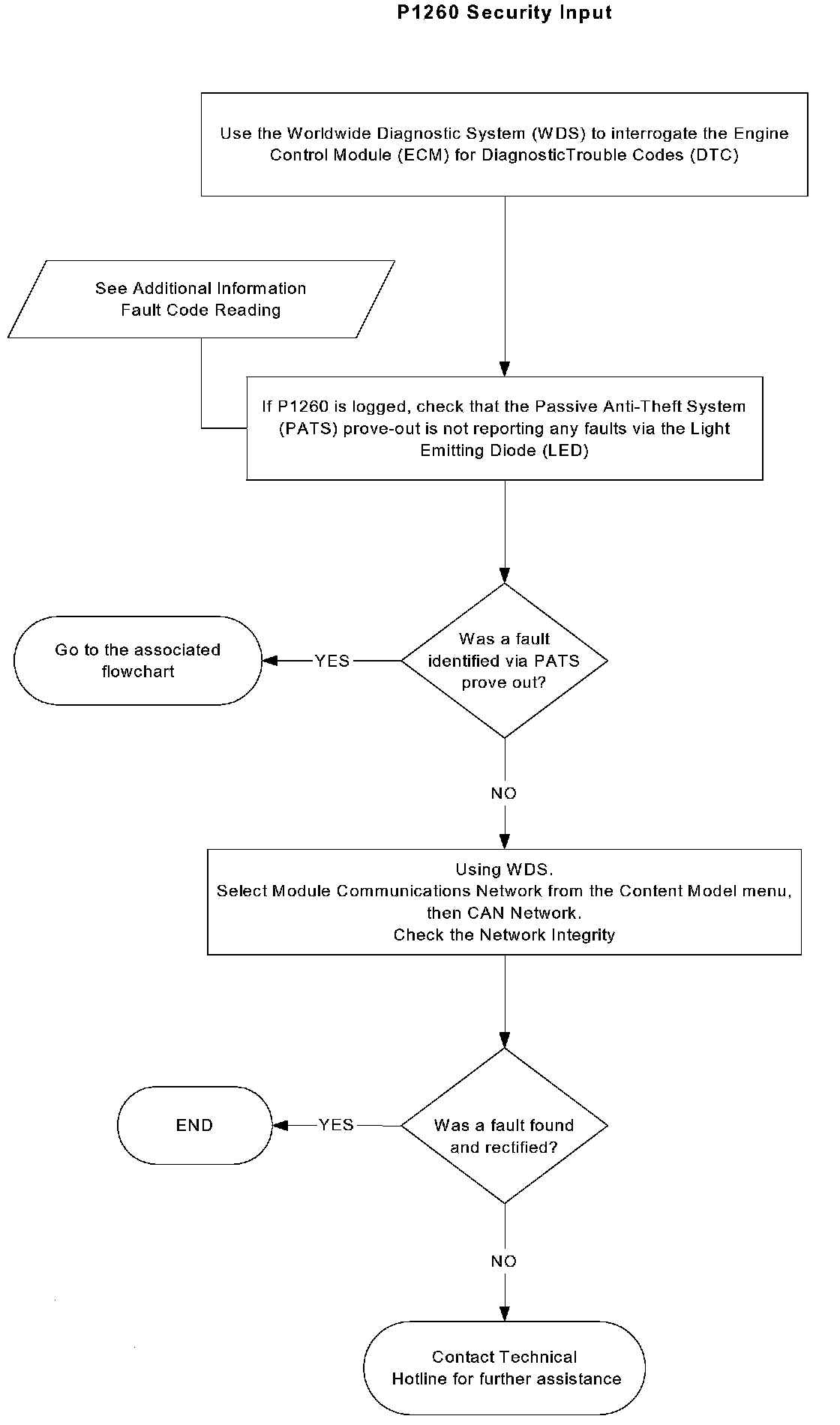

^ P1260 - Security input

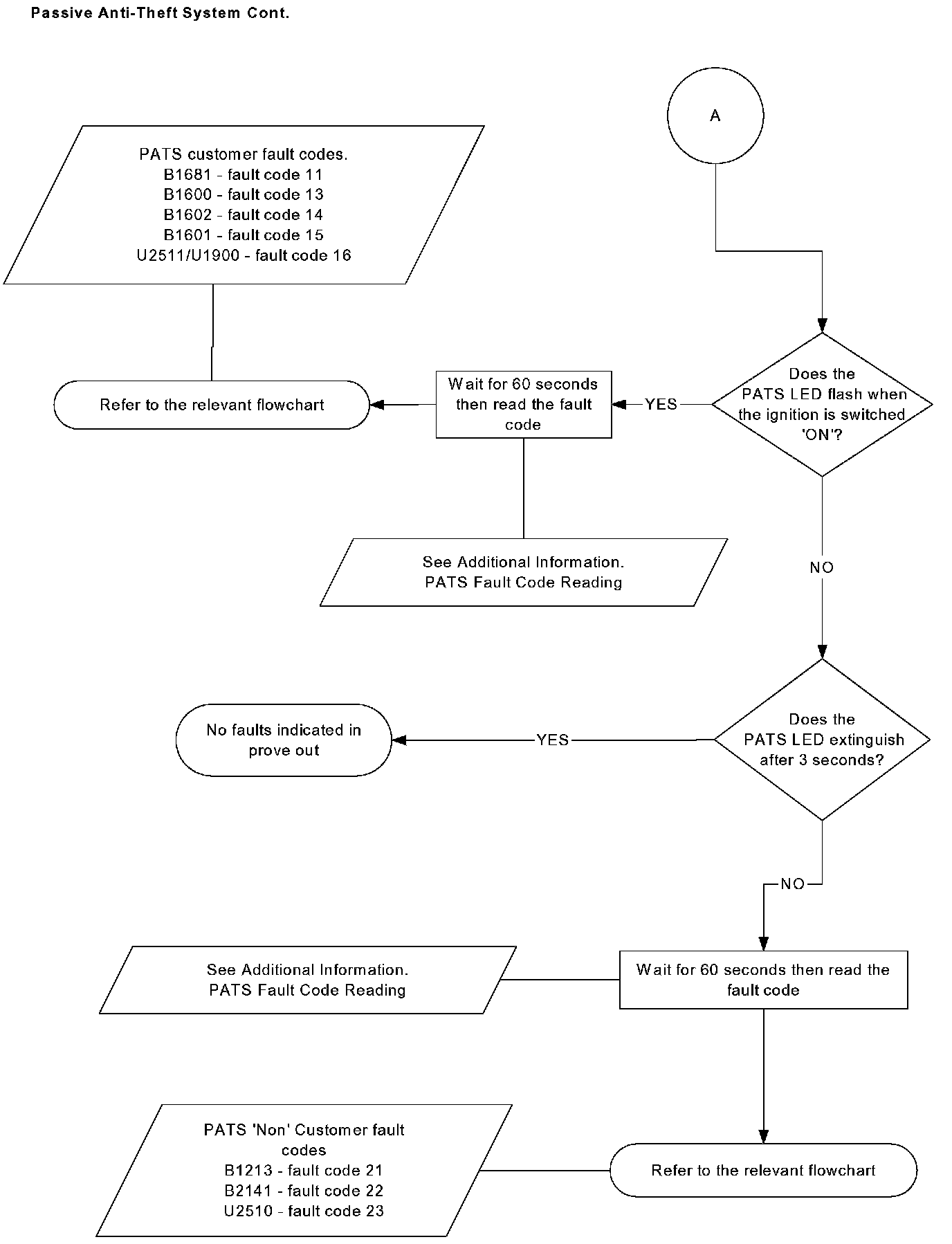

^ Passive Anti-Theft System (To be used to interpret the type of failure)

PATS Customer fault code flowcharts.

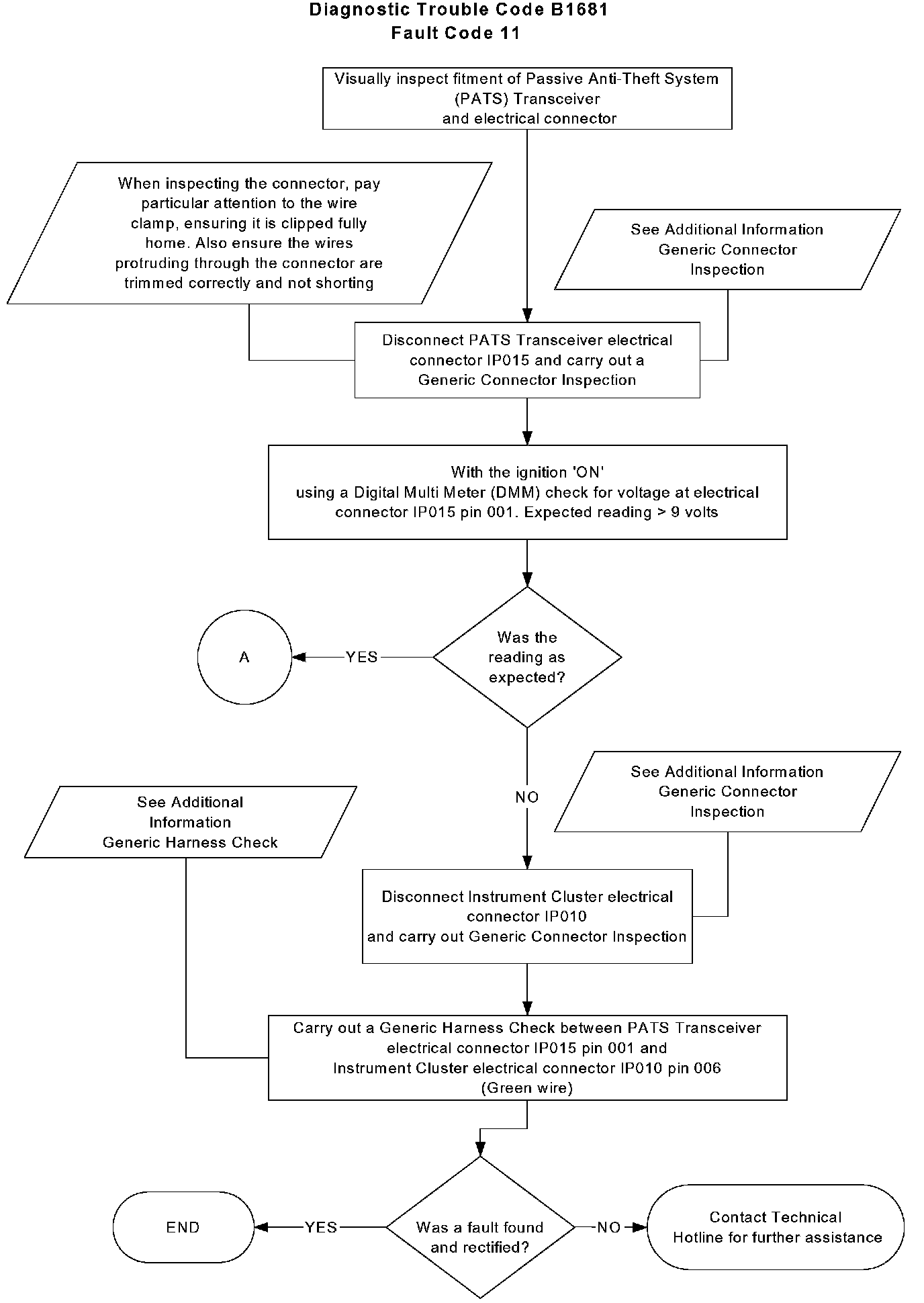

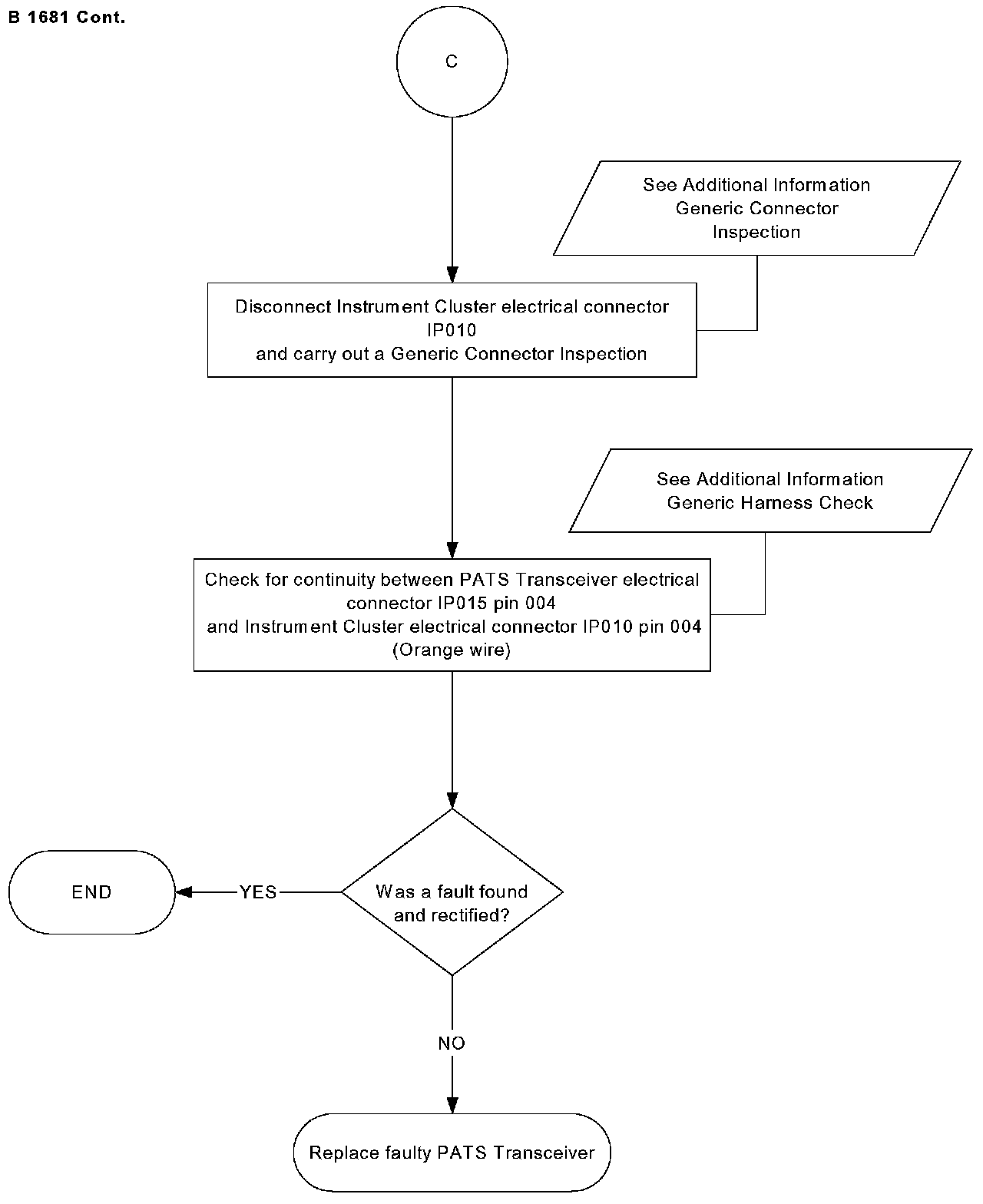

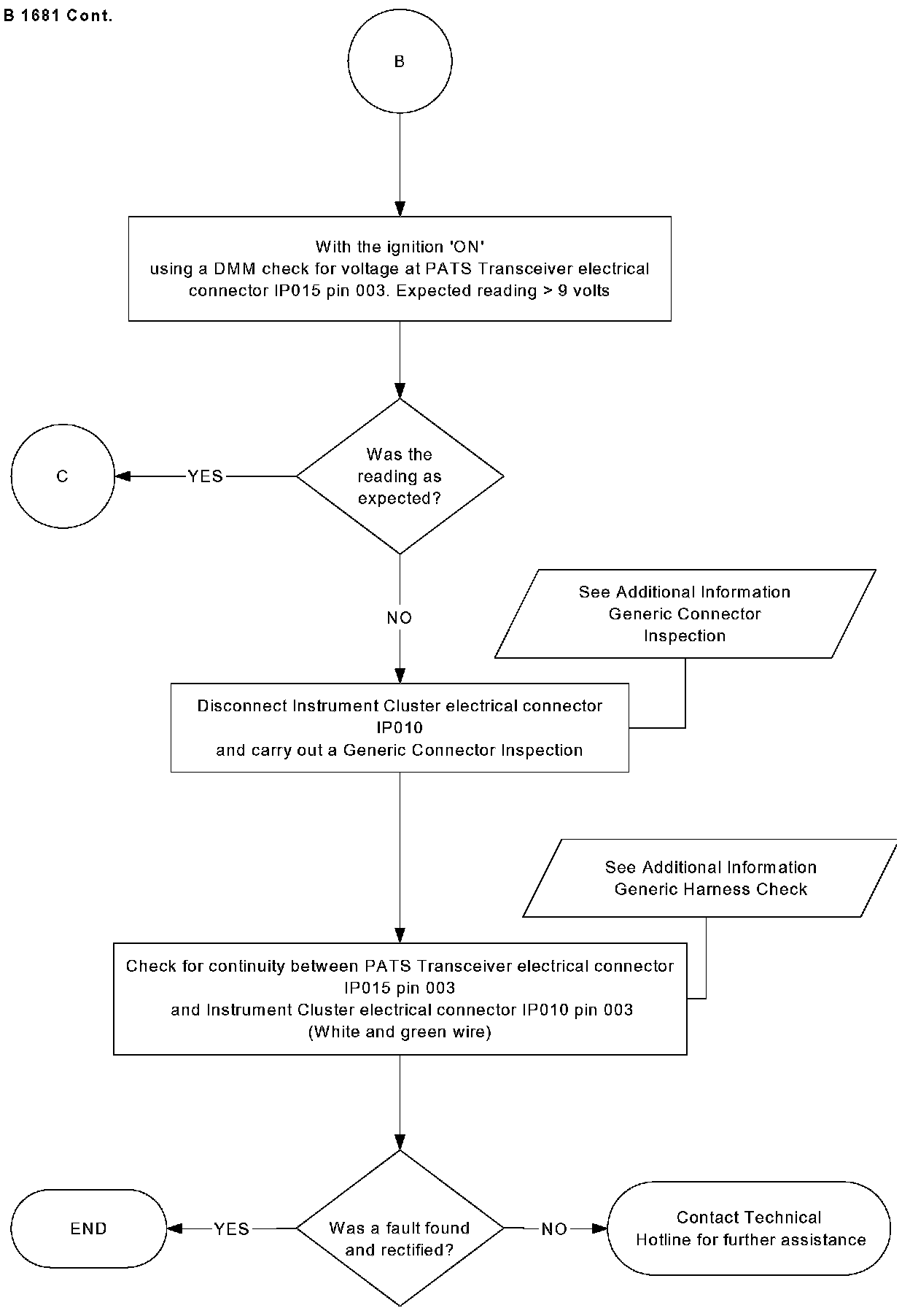

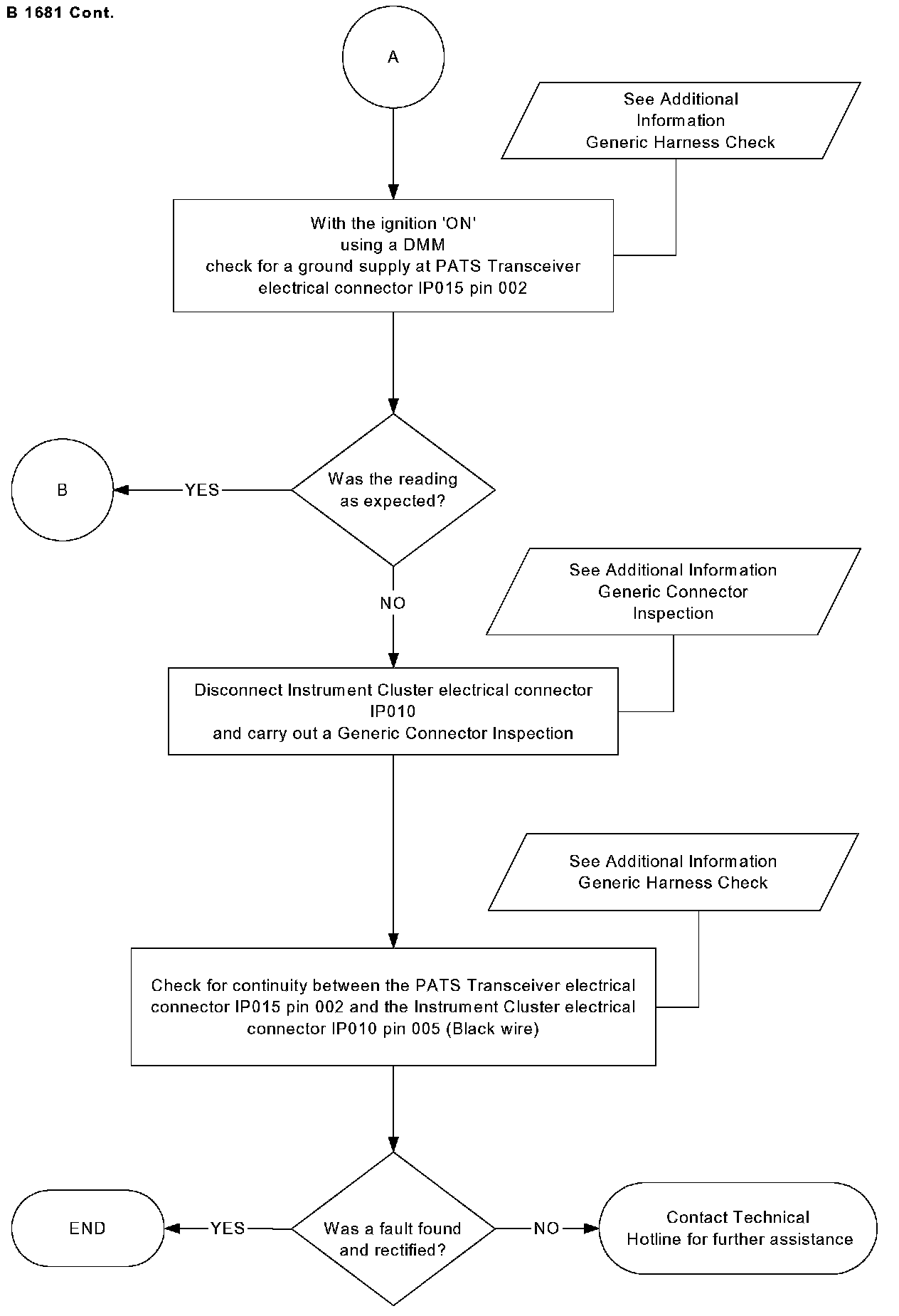

^ B1681 - fault code 11

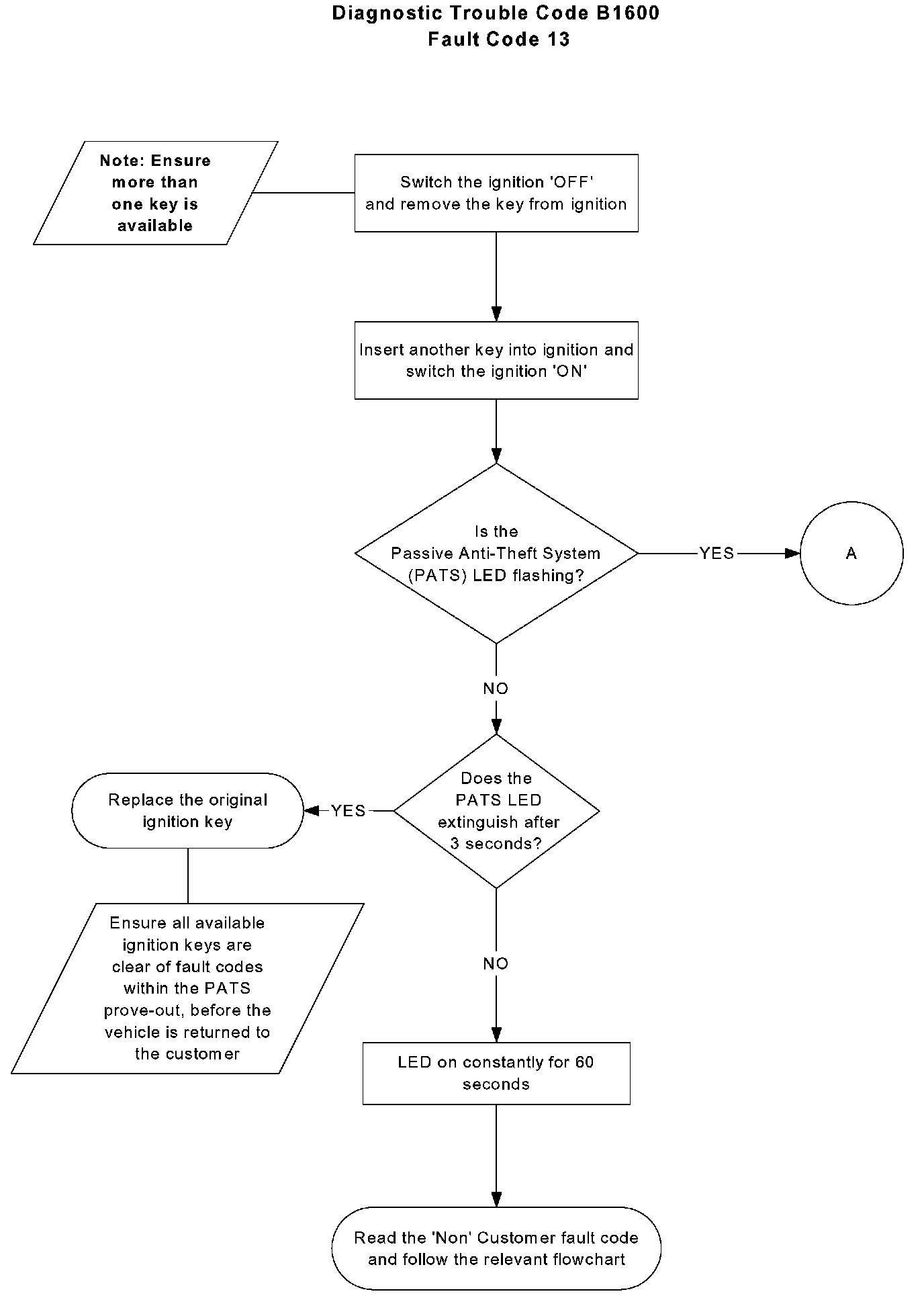

^ B1600 - fault code 13

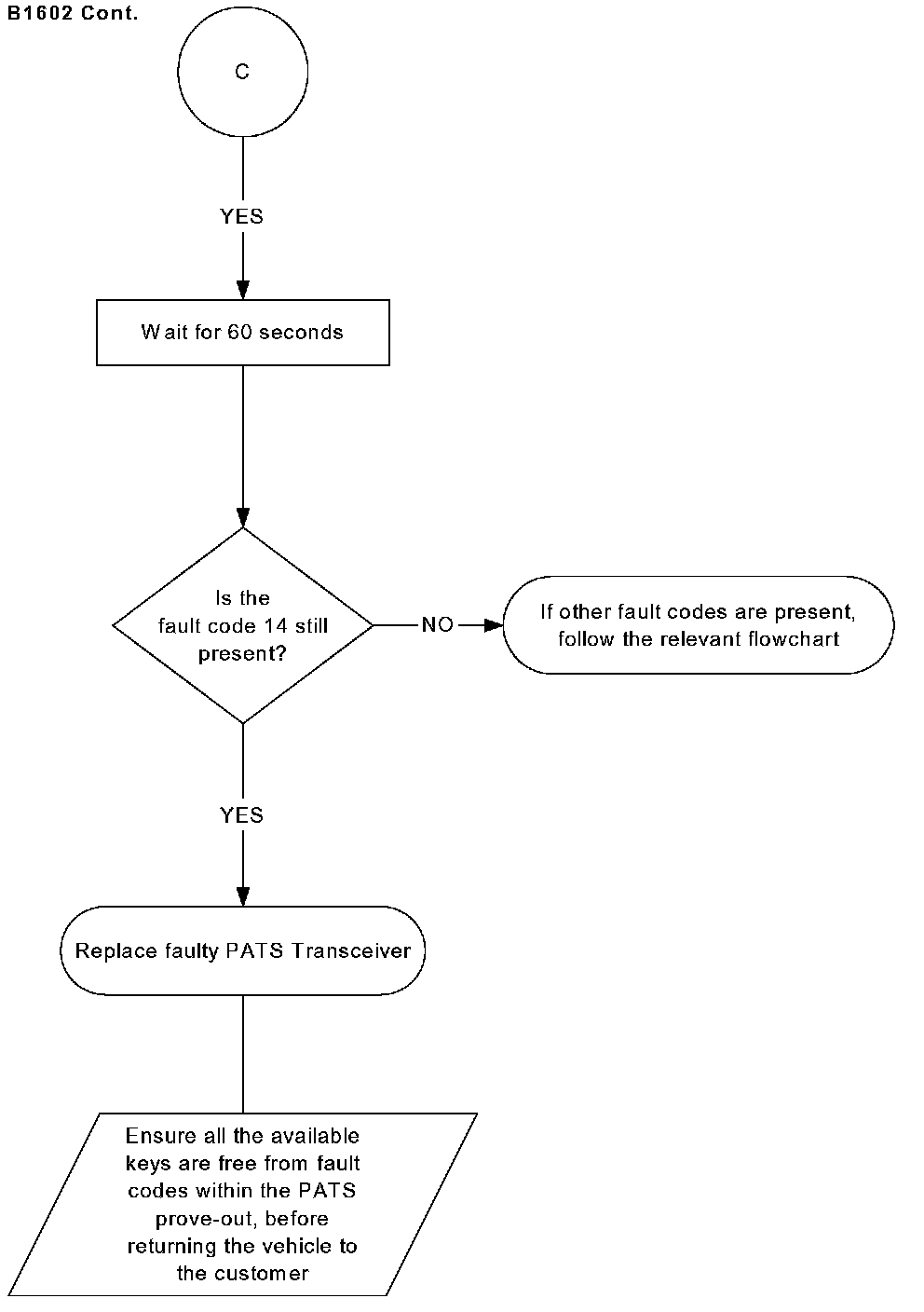

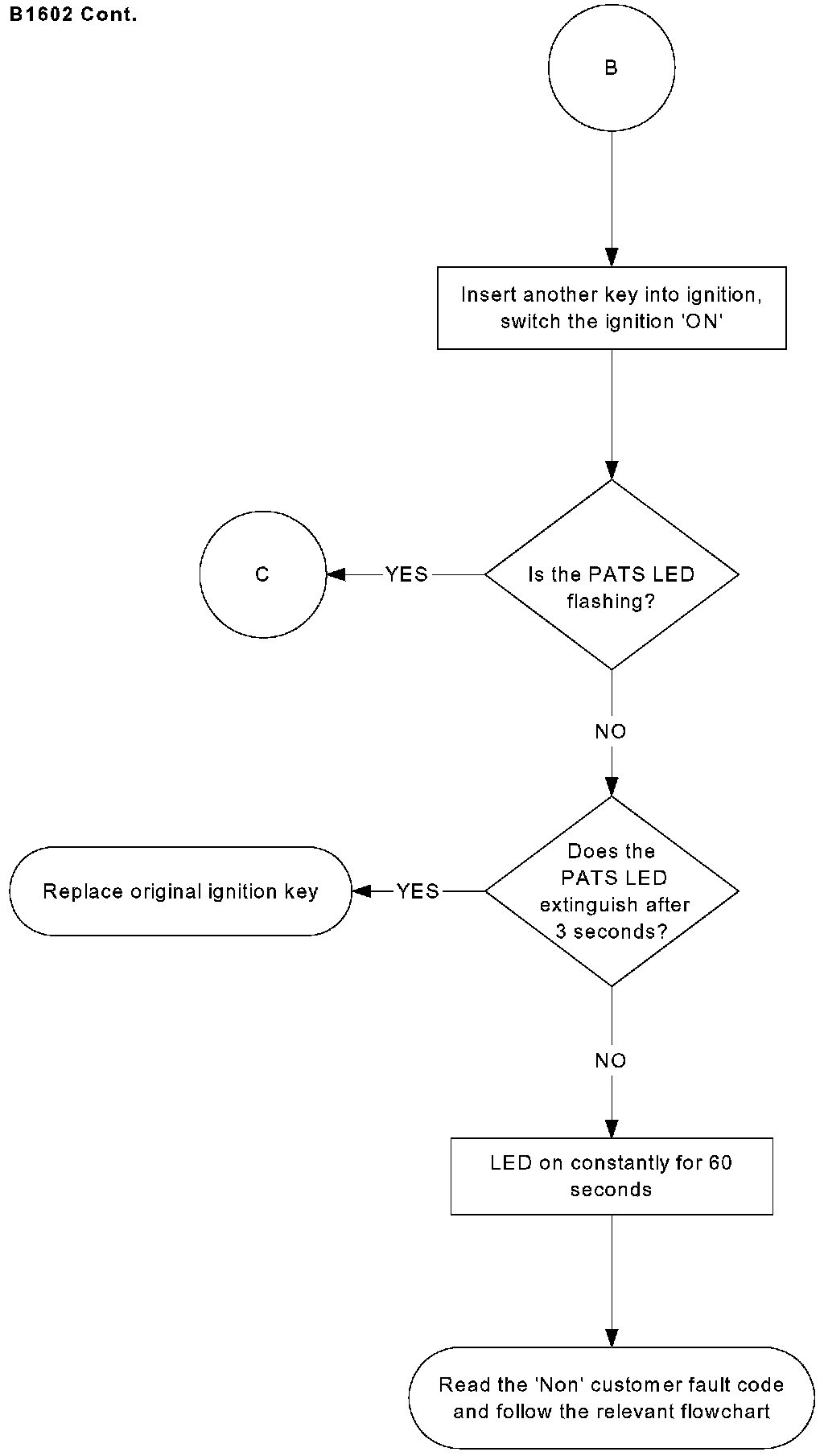

^ B1602 - fault code 14











^ B1601 - fault code 15





^ U2511/U1900 - fault code 16

PATS Non-Customer - fault code flowcharts.

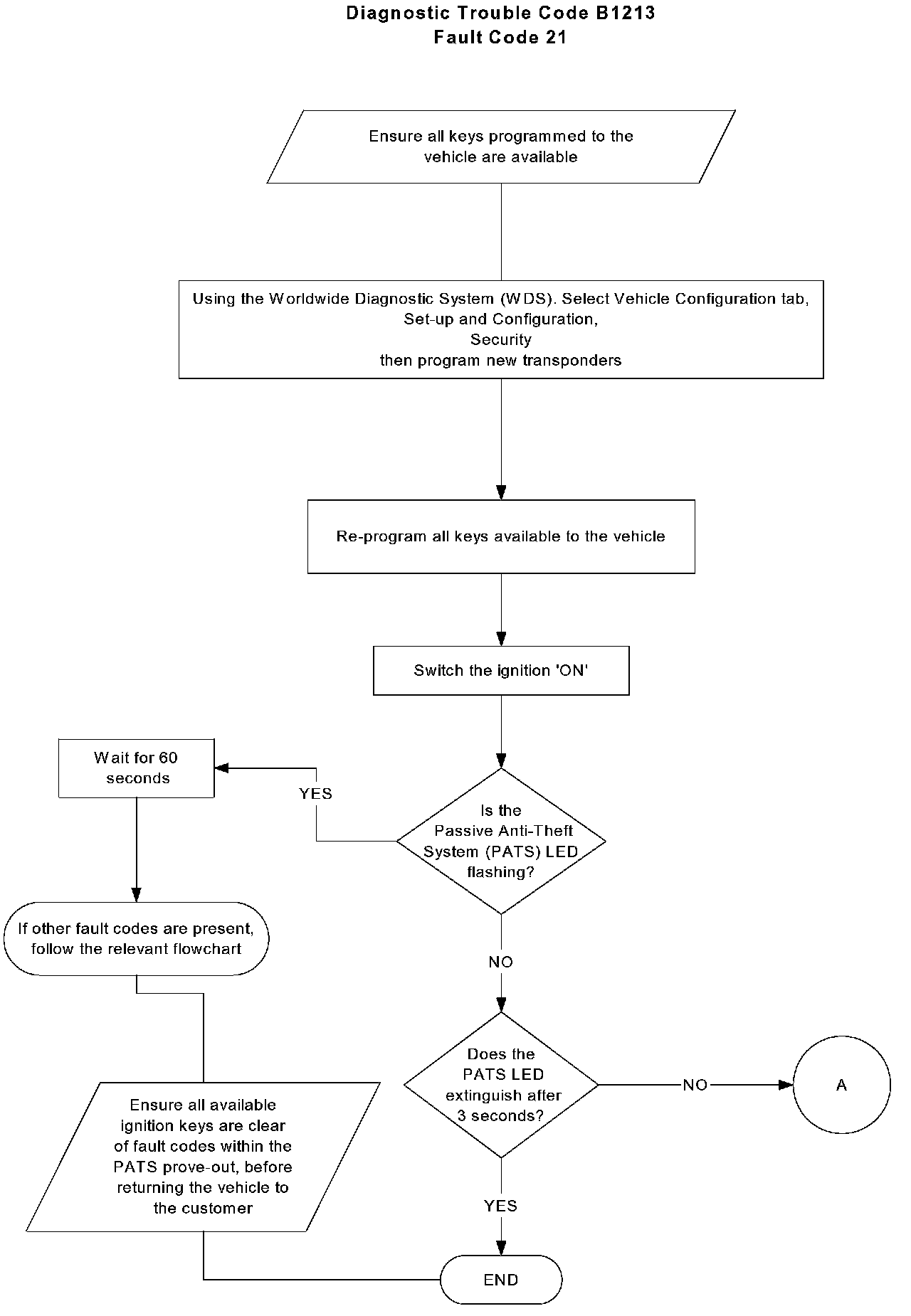

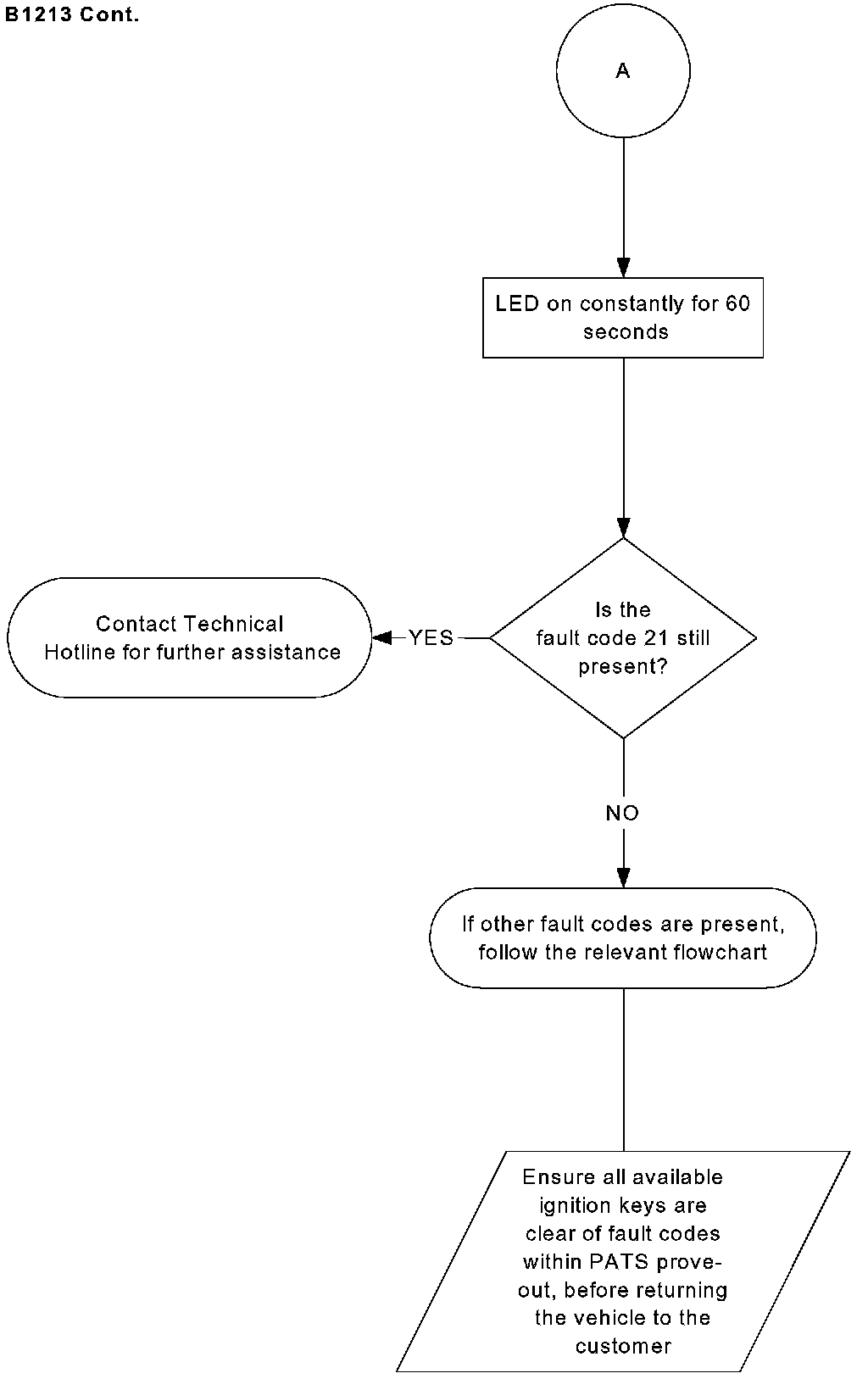

^ B1213 - fault code 21

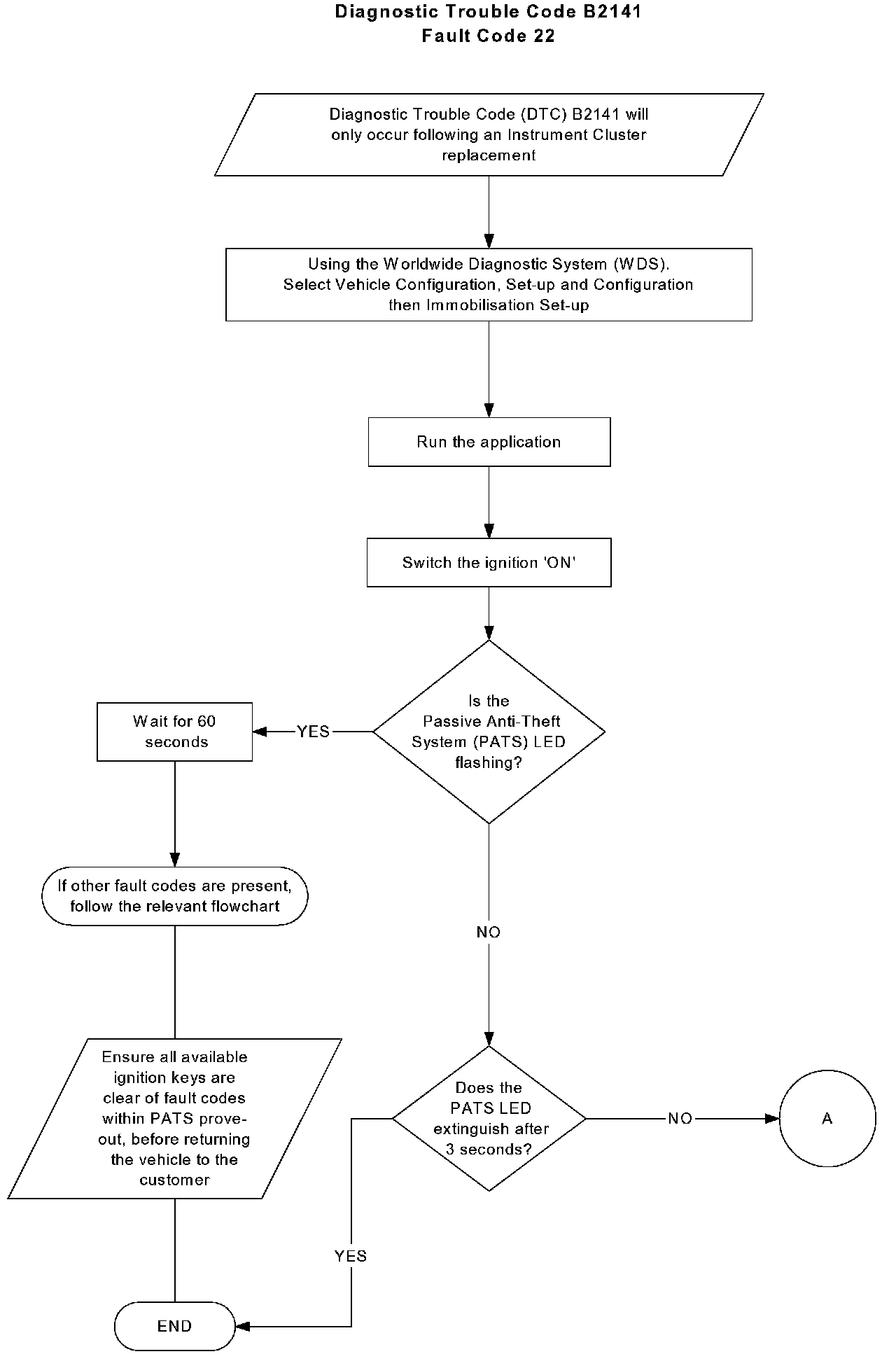

^ B2141 - fault code 22

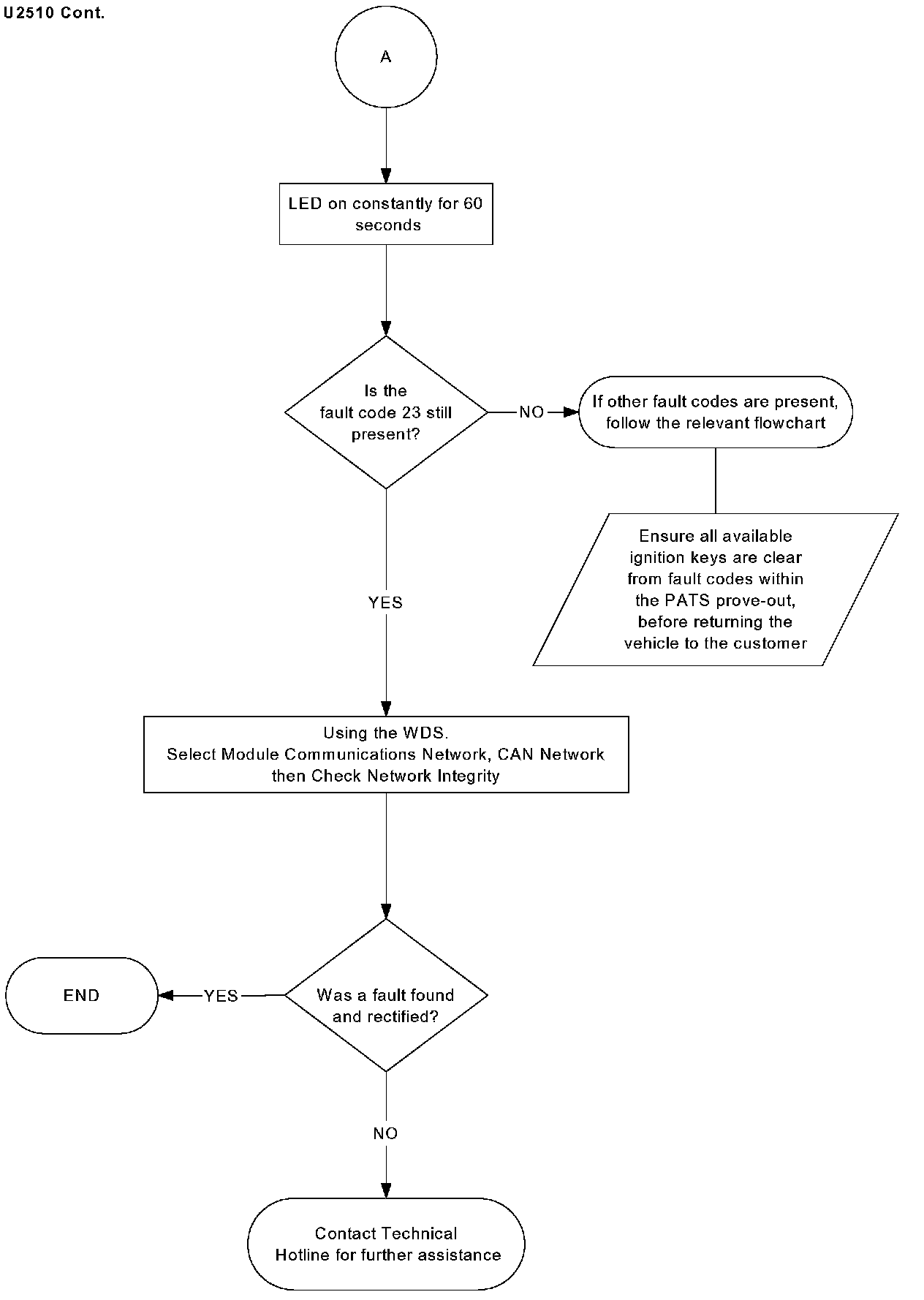

^ U2510 - fault code 23
