Brakes - Revised Parking Brake Cable Adjustment Spec.

X-TYPE

XT206-08

DATE: 08/05

MODEL:
2002 MY-ON
X-TYPE

VIN:
C00001-ON

Parking Brake Cable Adjustment - Revised Specification

Issue:

The parking brake cable adjustment specification has changed. The gap between the parking brake caliper lever and the stop which was 0.1 mm to a maximum of 1 mm, has changed to 0.1 mm to a maximum of 1.5 mm.

Action:

To carry out the new parking brake cable adjustment measurement, see Global Technical Reference GTR Workshop Manual, section: 206-05, SRO 70.35.10.

Note:
On early X-TYPE vehicles converted to manual adjusters under Recall R957, refer procedure for 2003 MY or later vehicles.

Global Technical Reference (GTR) Workshop Manual Information:

Internet access: http://www.jaguartechinfo.com





Parts Information

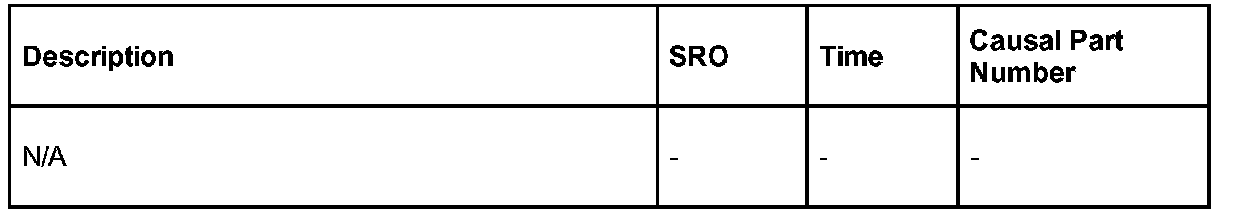

Warranty Information
