Door Seals - Wind Noise
X-TYPEDATE
05/02
XT501-01
MODEL
2002 MY
X-TYPE
VIN
C00638 - C51000
Wind Noise From Doors - Modify Door Seals - Modification Procedure
Issue:
On some 2002 MY X-TYPE vehicles within the above VIN range, customers may experience wind noise from the door seals. This bulletin describes how to modify the door seals using additional foam strips.
Action:
In case of a customer complaint of wind noise on a 2002 MY X-TYPE vehicles within the above VIN range, follow the procedure below:
DOOR SEAL MODIFICATION PROCEDURE
1. Open door.
2. Switch ignition ON.
3. Lower all windows.
4. Switch ignition OFF.

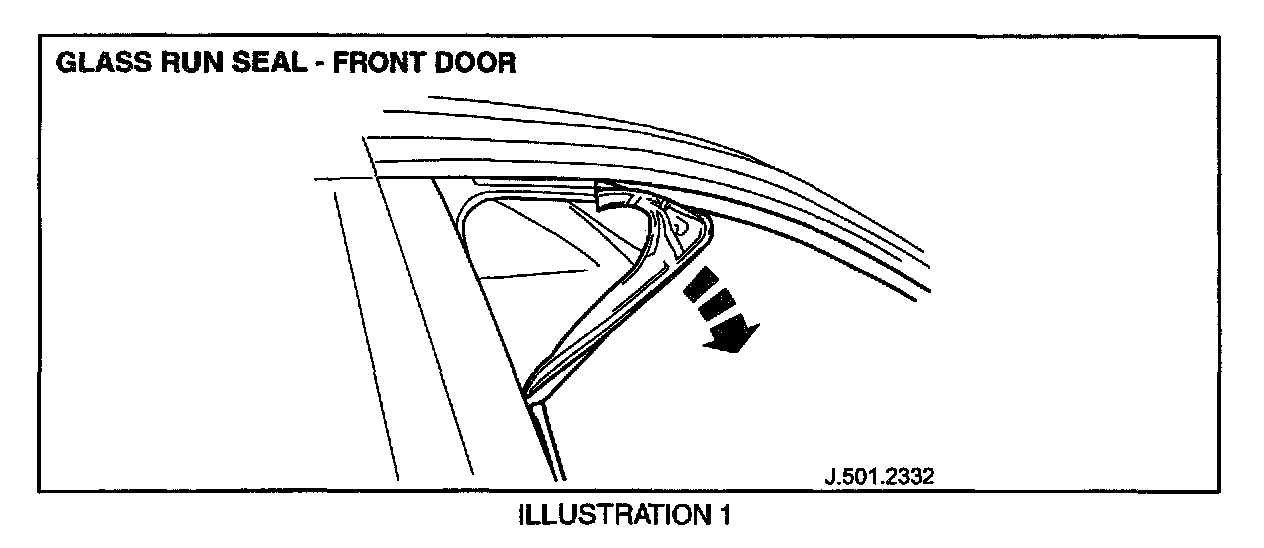

5. Displace rear upper corner of front glass run seals (Illustration 1) and front upper corner of rear glass run seals (Illustration 2).
6. Remove strip of foam from backing paper.

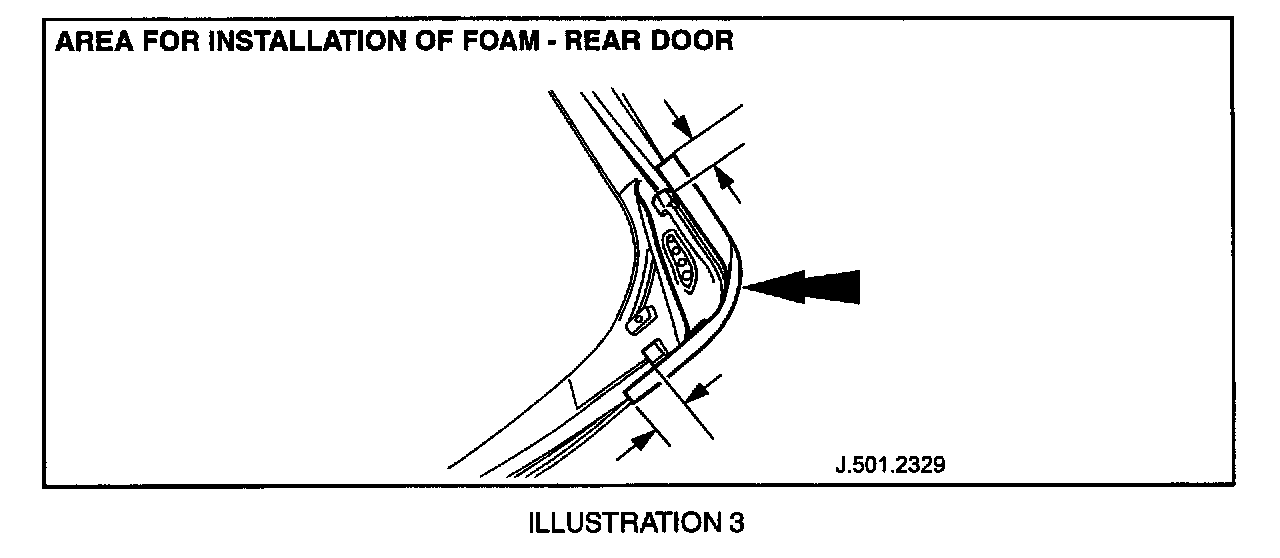

7. Install foam to corner of rear seal, starting approximately 12 mm prior to edge of square location peg finishing approximately 12 mm past second square location peg (Illustration 3).

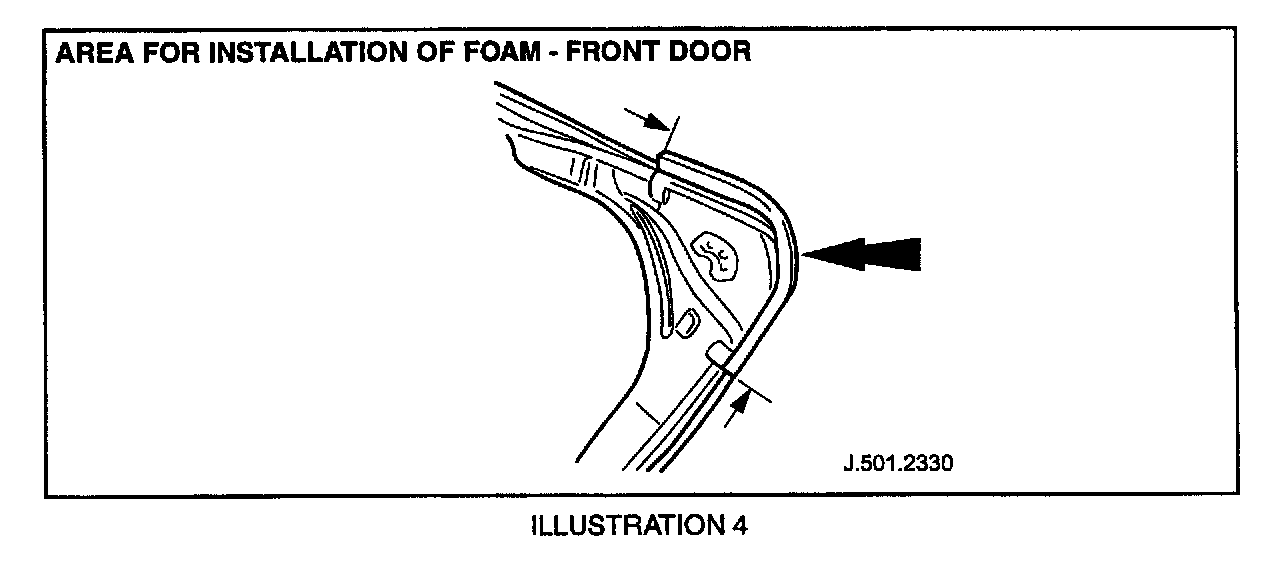

8. Install foam to corner of front seal starting and finishing at edge of square location peg on seal (Illustration 4).

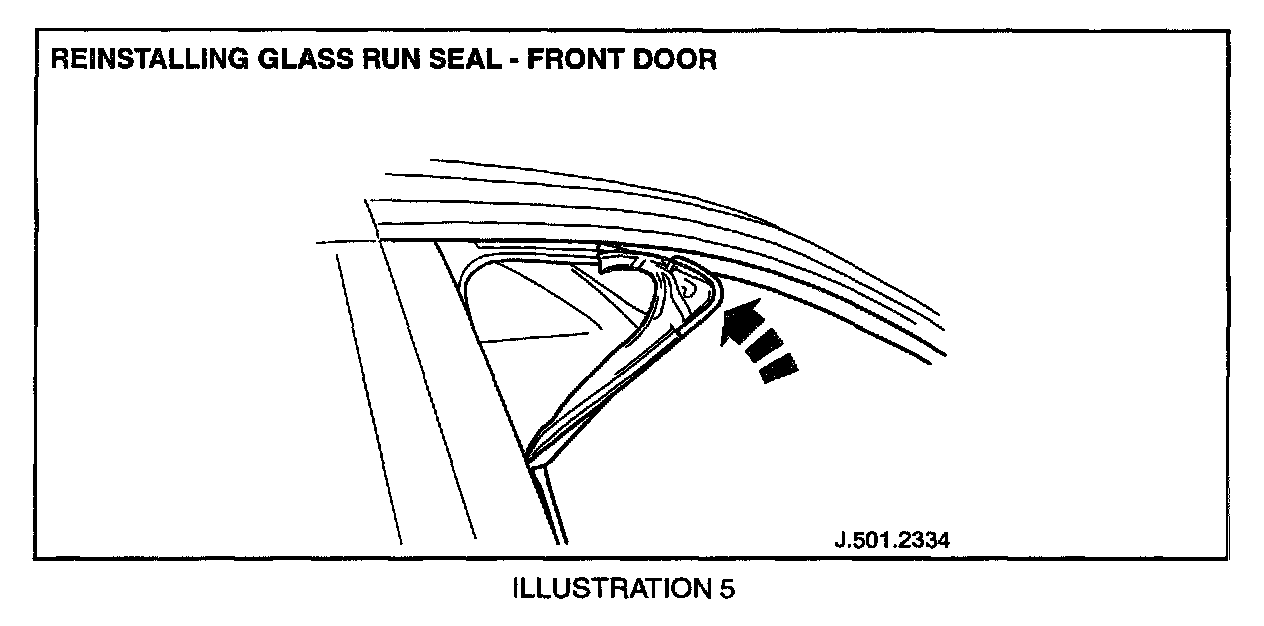

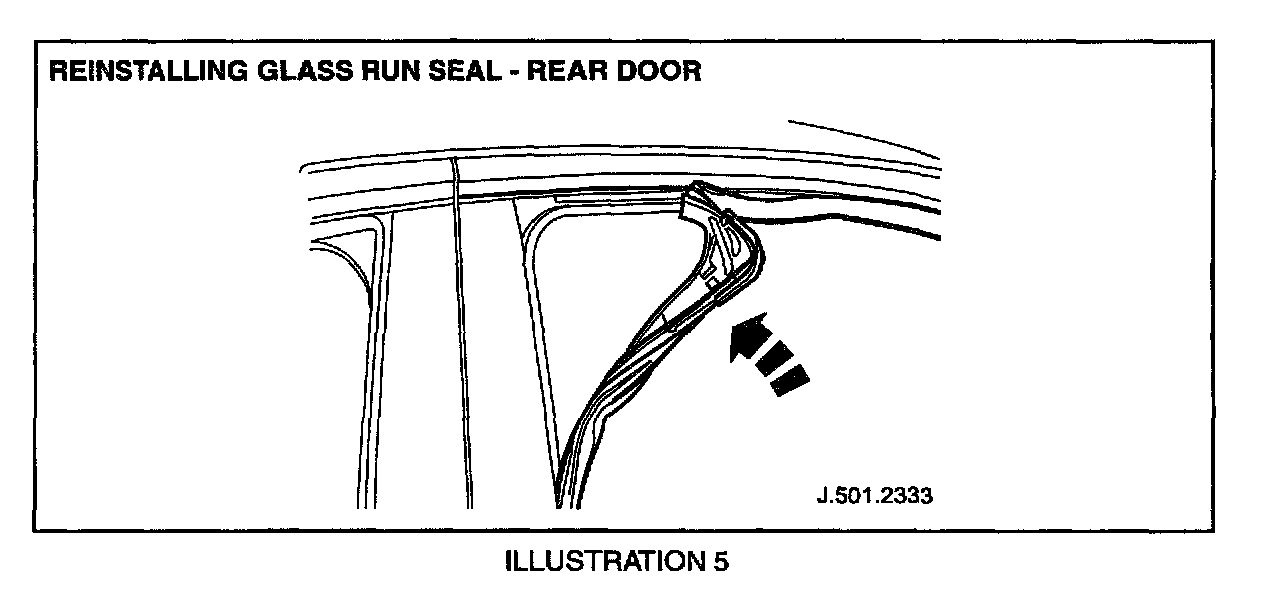

9. Align and fully seat glass run seals to upper corners of door frames. (Illustrations 5 and 6).
10. Switch ignition ON.
11. Raise front windows.
12. Switch ignition OFF.
13. Close doors.

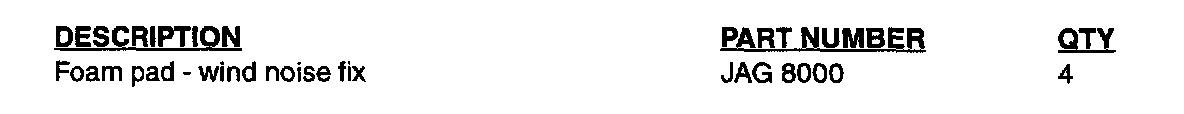

Parts Information:
Warranty Information:
CURRENT SYSTEM
GLOBAL ACES
Upon introduction of the revised DDW claim submission system, the following warranty information will apply.

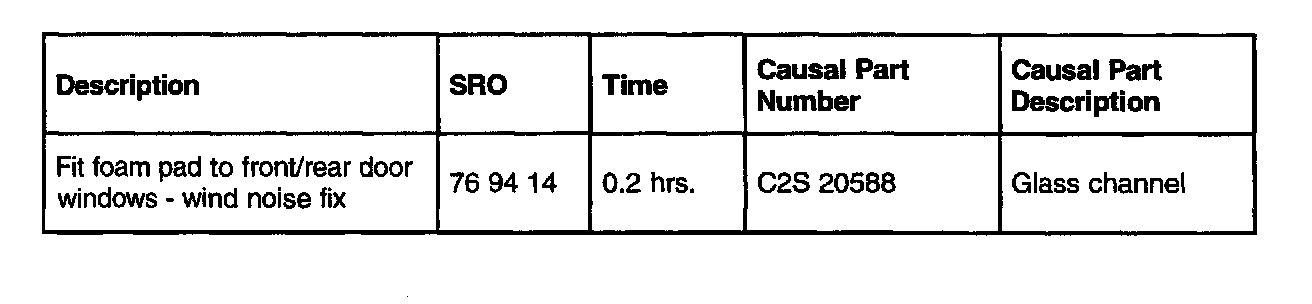

Warranty claims should be submitted quoting the information found in the table. This will result in payment of the stated time and, where applicable parts/miscellaneous expense codes as listed.
