Drivetrain - Revised Transfer Case Output Seal Service

NUMBER: JTB00134
(ISSUE 1)

MODEL: X-TYPE

DATE: 07 JAN 2009

SECTION: 308
Revised Workshop Procedure - Transfer Case Rear Output Flange Seal

AFFECTED VEHICLE RANGE:
X-Type (X400) VIN: C00001 - D01489
Model Year: 2002 - 2003

CONDITION SUMMARY:

Situation:

The workshop procedure to remove / install the transfer case rear output flange seal has been revised. It is no longer necessary to remove the sub-frame assembly. The new method drains the transfer case by removal of the seal and refills the transfer case by jacking up the car from the side.

Action:

In the event it becomes necessary to remove / install the transfer case rear output flange seal, refer to the Repair Procedure outlined below.

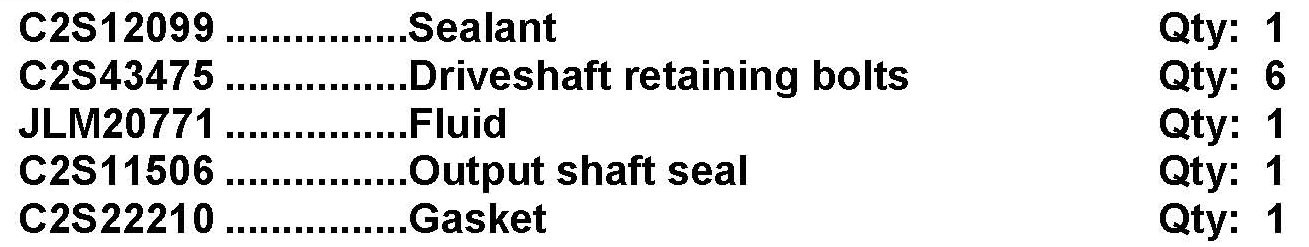

PARTS

TOOLS:

Refer to Workshop Manual (GTR) for required special tools





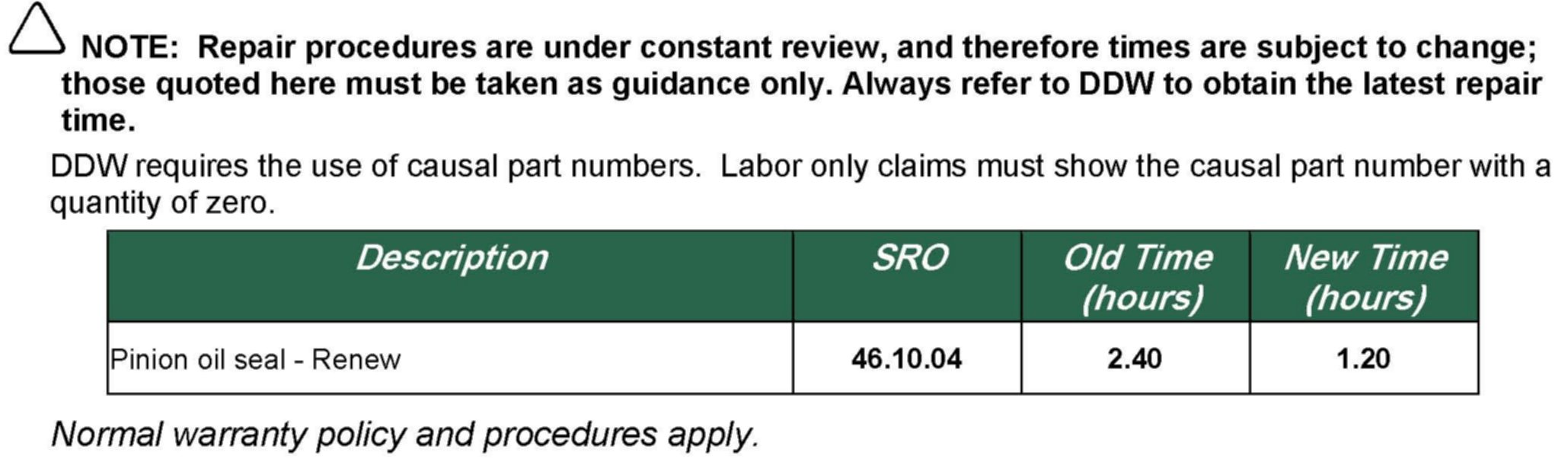

WARRANTY

REPAIR PROCEDURE

REMOVE / INSTALL TRANSFER CASE REAR OUTPUT FLANGE SEAL

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > X400 - X-TYPE > Service Information > 2002 > Workshop Manuals > 3: Powertrain > 308: Manual Transmission / Transaxle, Clutch and Transfer Case > 308-07: Transfer Case

1. Refer to Workshop Manual (GTR) section 308-07: Transfer Case (46.10.04) to remove / install the transfer case rear output flange seal.
