Steering/Suspension - Alignment Toe Specification Change

XT204-03

X-TYPE

DATE:
06/02

MODEL:
2002 MY-ON X-TYPE

VIN:
C00001-ON

Wheel Alignment - Change Of Toe Specification

Issue:

As a result of ongoing product development, the toe settings for X-TYPE vehicles have been changed from VIN C19250.

Action:

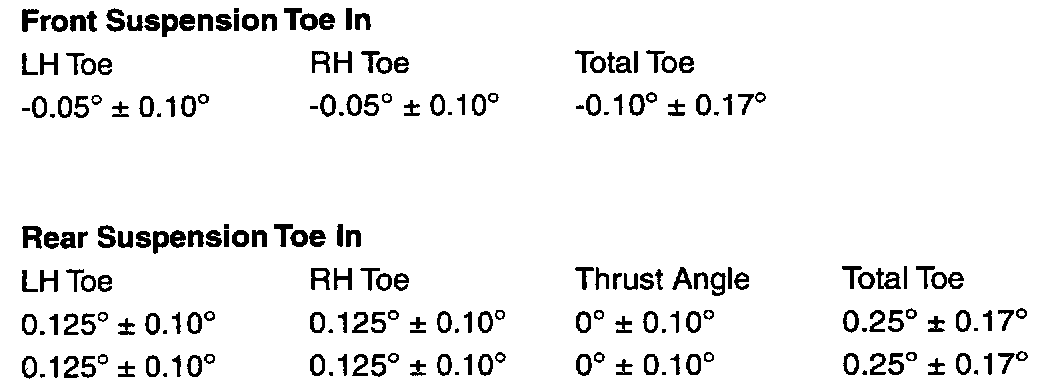

In case an X-TYPE vehicle prior to VIN C19250 requires work that involves adjusting the toe, use the specifications provided below.

Note:
It is not necessary to reset the toe on vehicles prior to VIN C19250 if no other work is performed on the suspension.








Complete alignment specifications are shown for your convenience.
