Vehicle - Various Squeaks and Rattles: Overview

X-TYPE

DATE
05/02

XT910-01

MODEL
2002 MY-ON
X-TYPE

VIN
C00001-ON

Squeaks & Rattles

Issue:
This bulletin has been issued to assist the diagnostic process in case of a customer complaint of squeaks and rattles.

BACKGROUND INFORMATION
Vehicle noise is inevitable when a vehicle is in use. Current development efforts are aimed at reducing noise levels created by components such as engine, driveline and tires, but, the quieter these become, the more evident any other unwanted noises will be.

Squeaks are generated through frictional contact of parts. The severity of the noise is a function of contact velocity, material properties, angle of contact etc.

Rattles are generated through part impact contact between two or more components. The severity of the noise is dependent upon velocity, clearance (between the components), local stiffness of components etc.

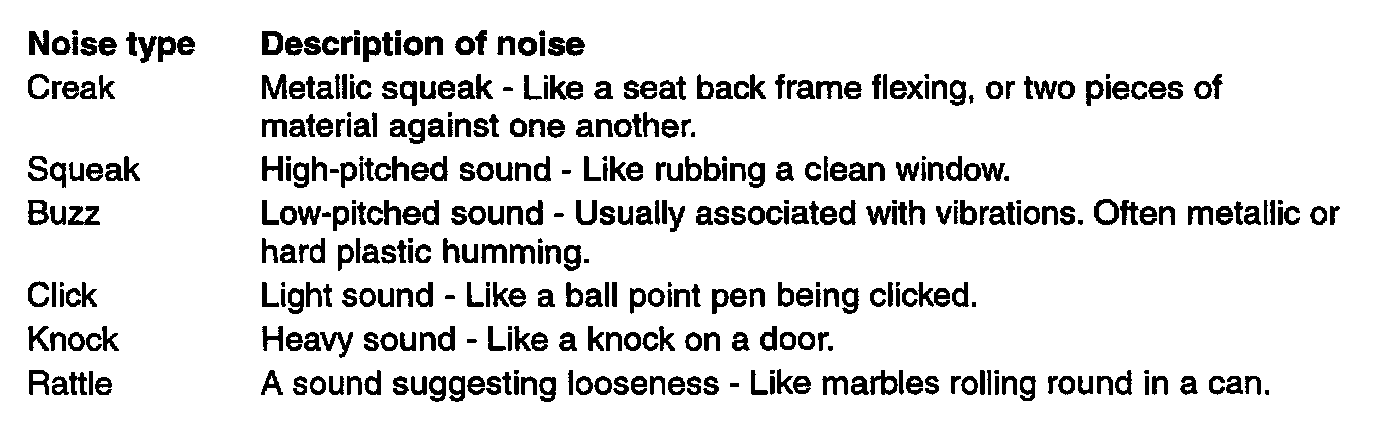

Listed are descriptions of the types of noises from either a Squeak or a Rattle.

Action:
To identify the source of the concern, first determine where the noise is generated. To assist with this, the customer can provide important information in helping diagnose the noise in question.

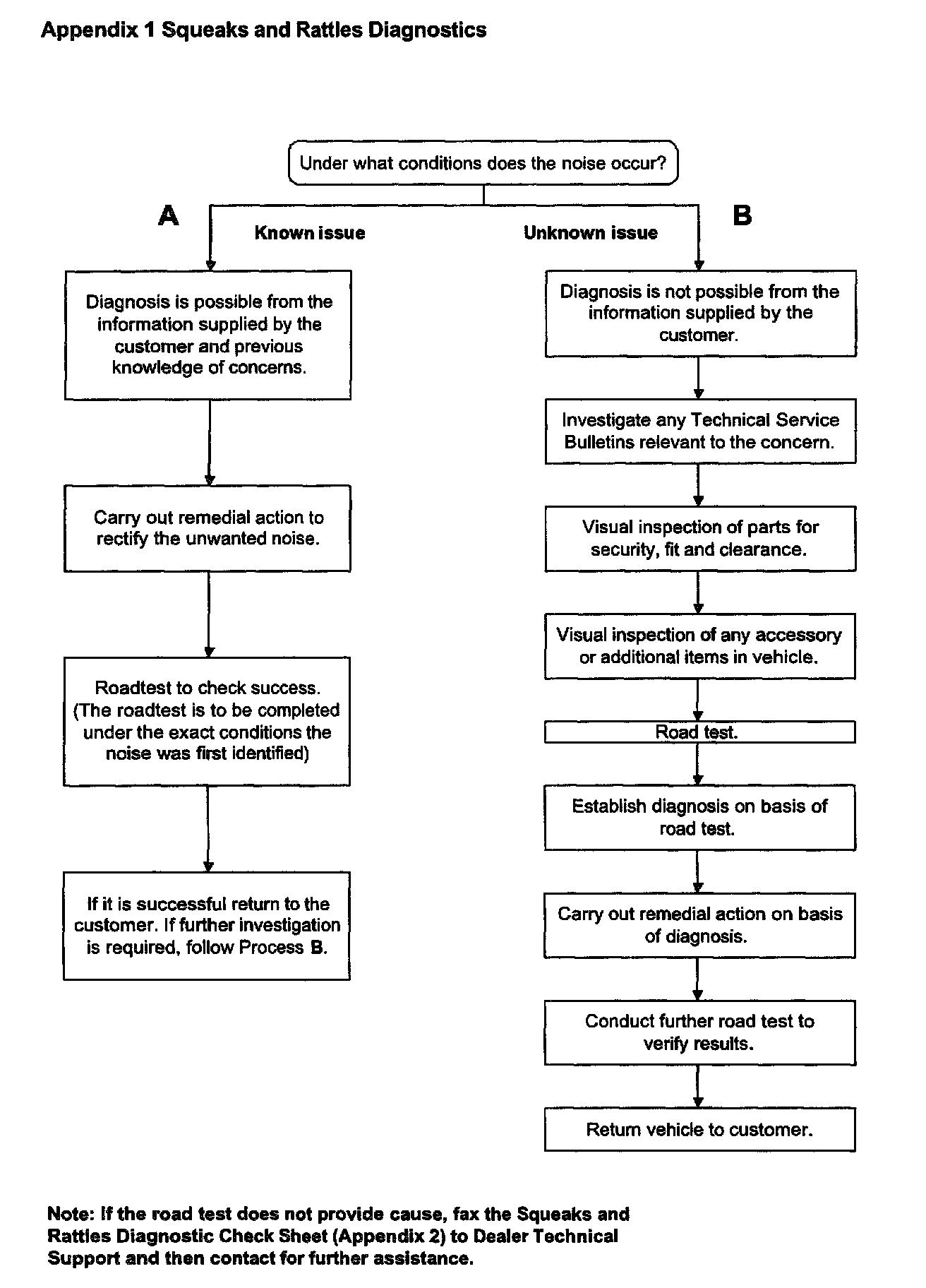

For all Squeaks and Rattles concerns and to ensure the correct root cause is identified and repaired, follow the Workshop Procedure below and see the Squeaks and Rattles Verification Process.

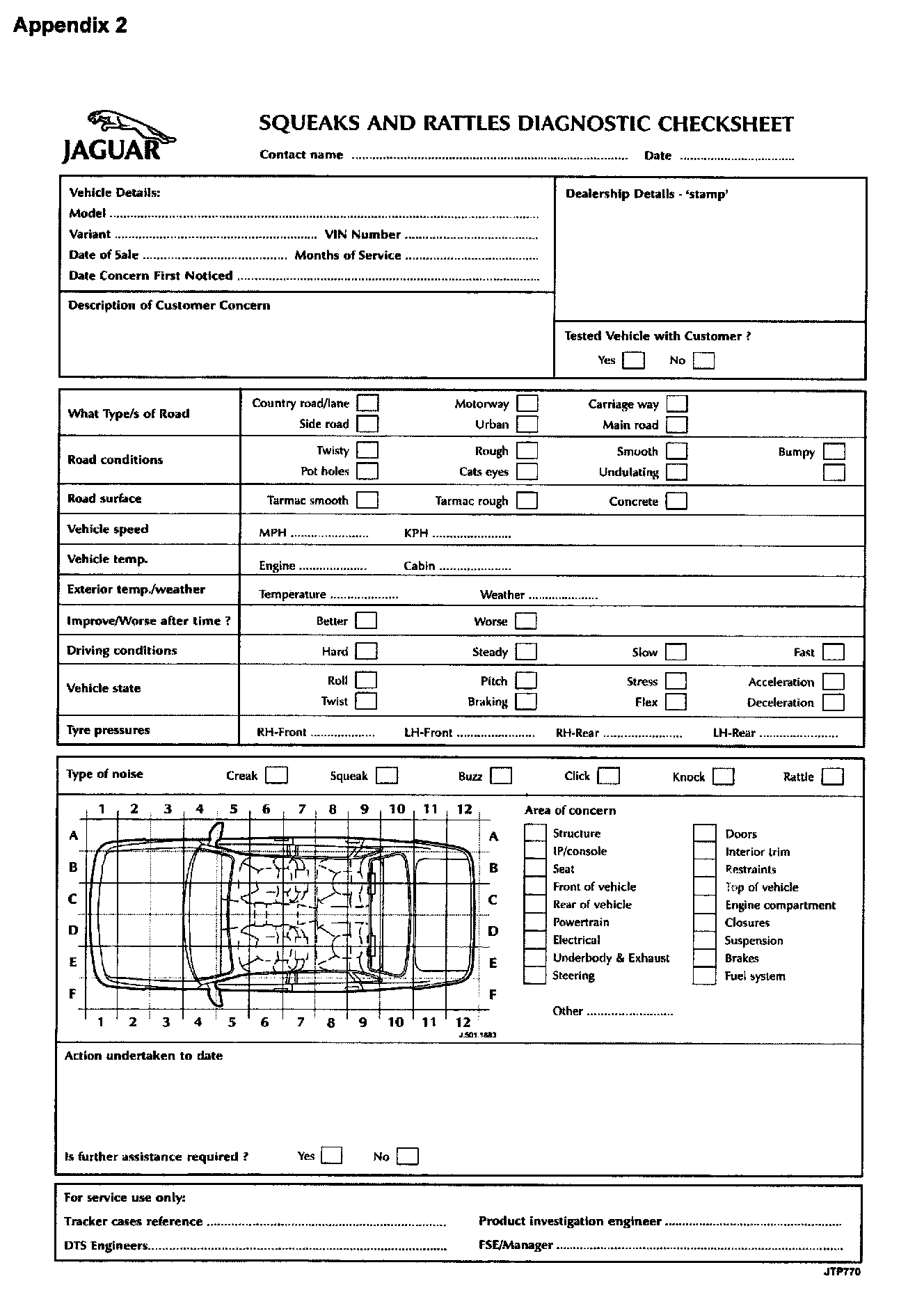

A Squeaks and Rattles Diagnostic Check sheet has been produced, that should be completed with the customer to help identify where the noise is, and under what conditions it happens.

Further Assistance

In some cases it may not be possible to identify the cause of the noise, or it could have re-occurred.

If this is the case, contact Technical Hotline for assistance.





Please fax your completed Squeaks and Rattles Diagnostic Check Sheet (Appendix 2) to the Technical Hotline on fax number 201-818-8478 and call 888-JAG-DLRS (524-3577) for assistance.

Warranty Information:

Refer to Technical Bulletin XT204-01 and XT501-02 for warranty information and labor Times. Claim all other repairs as straight time.

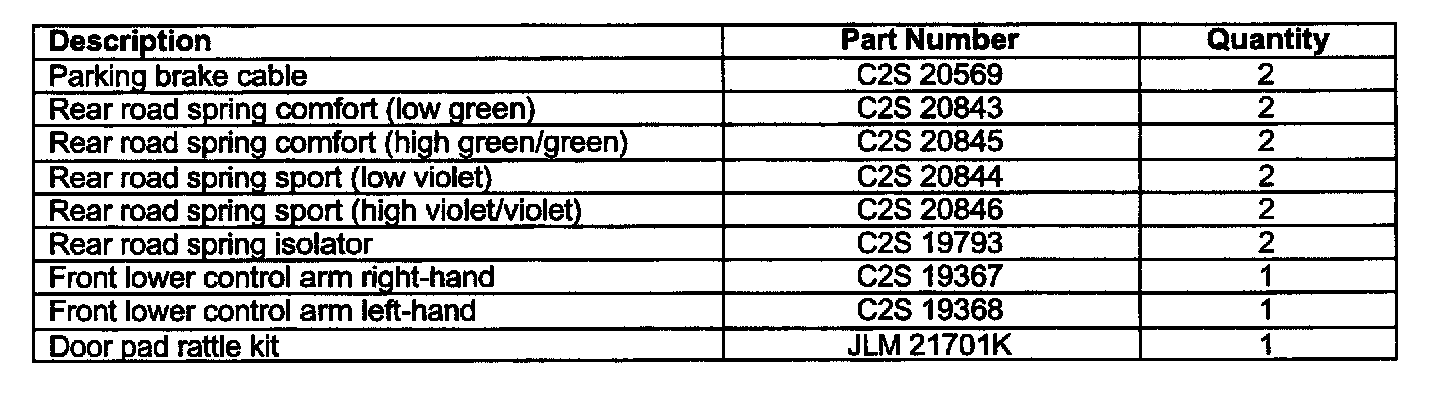

Parts Information:
