Road Testing
Conduct the Road Test under the same conditions as described by the customer to identify the concern accurately.Two people can conduct the test more effectively. While one concentrates on driving, the other can work on the noisy component.
Note:
It is a good idea that the two people change places to compare their results as appropriate.
Apply a load to see if the noise is affected. If the noise changes or is eliminated, retest without the item installed. If the noise is no longer present, examine the part and treat with anti-rattle materials or refit as appropriate. (See Technical Service Bulletin XT910-02 for Squeaks and Rattles Service Kits).
If the noise cannot be isolated, consider adjacent locations and investigate. Remove parts and retest to isolate the affected component.
Possible Areas of Concern:
The following areas around the vehicle could possibly cause a squeak or rattle.
Area of concern:
Chassis
Parking brake Cable Clips
Description
Squeak from the rear of the vehicle especially on uneven road surfaces. The noise could be perceived as coming from under the rear seat or from the exterior of the vehicle.
Root Cause
The parking brake cable dip is making excessive contact with the metal holding bracket.
Action
Install new parking brake cables, refer to Workshop Manual, JTIS CD ROM section 206-05, SR0 70.35.29.
Affected VIN Range
C00689 to C20146
Springs and Isolators
Description
Creak/Groan from rear of vehicle, especially when accelerating, braking and over speed bumps.
Root Cause
Rear spring is applying a point load to the isolator, causing a creak/groan.
Action
Install new rear springs and isolators, refer to Technical Bulletin XT204-01. (See Parts Information for superseded part numbers)
Affected VIN Range
C00689 to C25834
Front Lower Control Arm
Description
Creak from front of the vehicle when braking, particularly over speed bumps.
Root Cause
Hydrobush
Action
Install new front lower control arm, refer to Workshop Manual, JTIS CD ROM section: 204-01, SR0 60.35.02. (See Parts Information for superseded part numbers)
Affected VIN Range
C00689 to C08050
Area of concern:
Interior Trim Ashtray Rattles
Description
Ashtray makes a "buzzing" noise when closed. Scuffing marks may also be evident on the edge of the lid.
Root Cause
The left hand inner check arm is fouling the ashtray housing.
Action

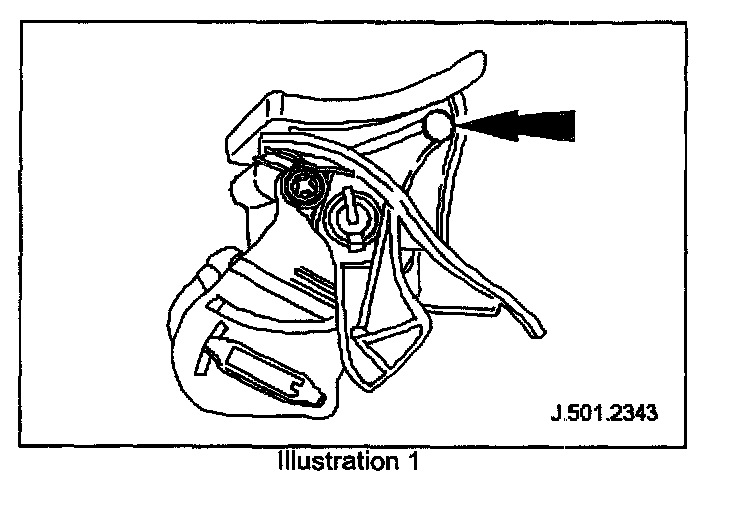

Application of felt washer (trim to suit) underneath the check arm in the highlighted area will eliminate the noise. Lift check arm from lid pivot and apply washer over pivot. Replace check arm to lid pivot. (Illustration 1)
Affected VIN Range
C00689 to C19875
Center registers
Description
Center register buzz/rattle.
Root Cause
Two causes are possible:
1. Clipping between the top of the center housing and the veneer is not fully home.
2. Vertical vane free-play.
Action
1. Check the position of the center clip to engage fully into the housing.
2. Apply the foam pads to the top and bottom of the housing. (Illustration 2)
Affected VIN Range
C00689 to C19567
High Intensity Discharge (HID) Harness Rattle
Description
The HID harness is located behind the instrument panel (IP) on the left side of the vehicle. If the HID harness connector is not in use, it may rattle against the IP.
Root Cause
When fastened back the connector may rattle against the IP.
Action
Secure the connector using a tie-strap and foam wrap connection-using material from the squeaks and rattle kit.
Affected VIN Range
C00689 to C30484
Description
Rattles/vibration (drummming sound) from the front and rear door pads.
Root Cause
There are three route causes:
1. Freeplay in the pins and grommets.
2. Water blanket has been poorly applied.
3. The edge of the door casing is contacting the metal of the door.
Actions

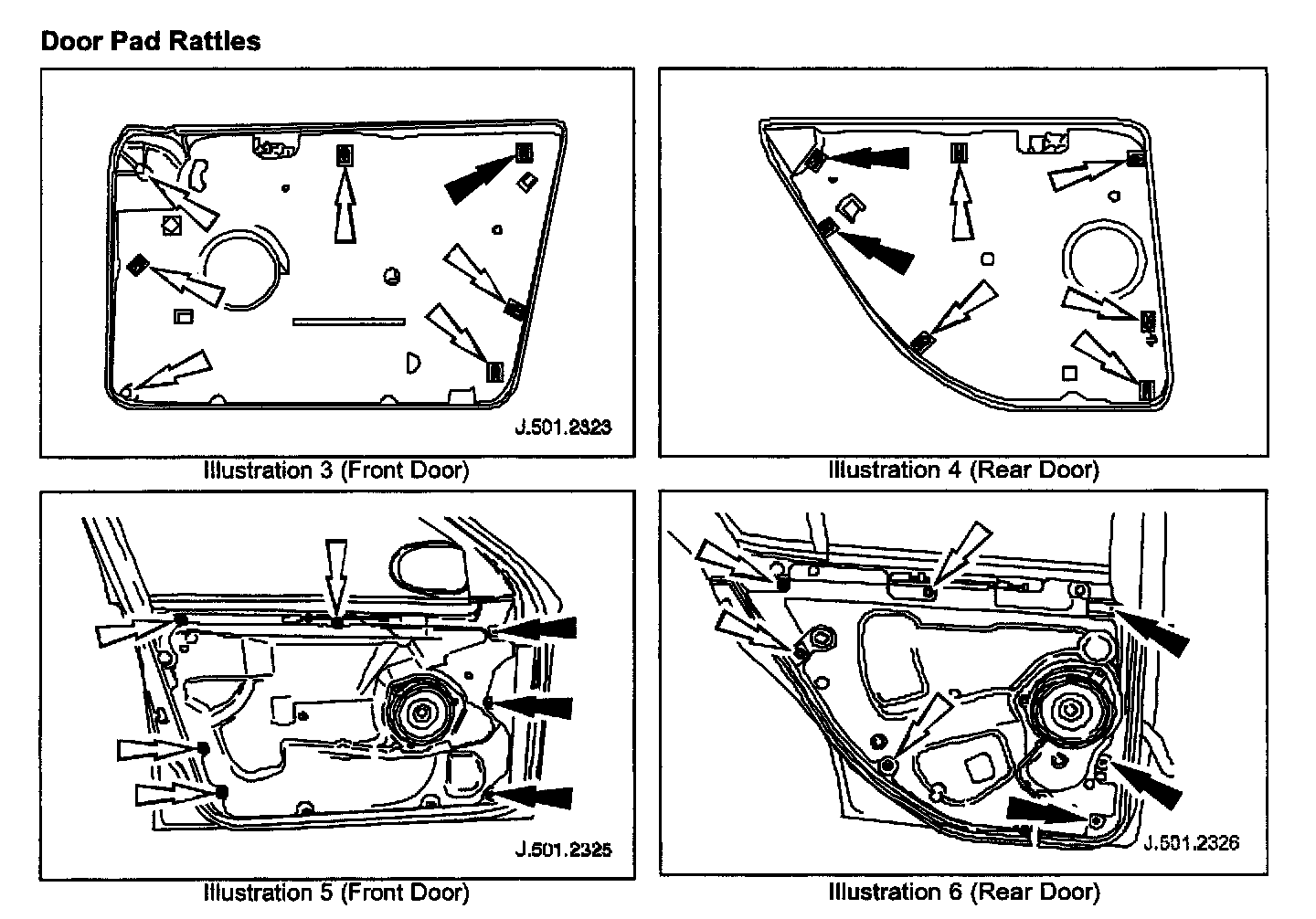

1. Install new pins noting the positions of the green fixing pins in illustration 3 and illustration 4 (shown by black arrows) install new grommets noting the positions of the black grommets in Illustration 5 and Illustration 6 (shown by black arrows), refer to Technical Bulletin XT501-02.
2. Check good adhesion around water blanket butyl path, and install foam curtain into door trim pads.
3. Apply Krytox lubrication to front and rear edges of door trim pads.
Note:
To save excessive damage when removing grommets from Body-in-White (B-I-W), use suitable screwdriver and break wings into Inside of B-I-W.
Affected VIN Range
C00689 to C18600
End Registers
Description
Buzzing emanating from the end vents-may be perceived as coming from the door pads.
Root Cause
Freeplay in the horizontal vanes of the end registers.
Action

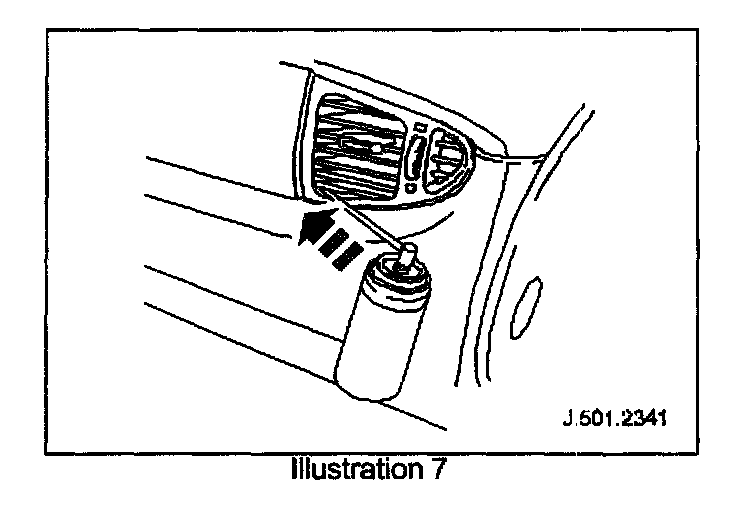

Krytox the end of the horizontal vanes. The end register must be replaced if the lubrication process does not rectify the customers concern. (Illustration 7)
Affected VIN Range
C00689 to C55000
Roof Console
Description
The customer in this area may highlight three concerns.
^ Light button rattles.
^ Moon roof switch rattles.
^ Loom rattle.
Root Cause
^ Button guides loose or free-play.
^ Connector rattle or unused connector not strapped.
^ Loom rattling against headlining/switchpack.
Action
^ Lift the guide guides and crimp in position using pliers.
^ Replace moon roof switch.

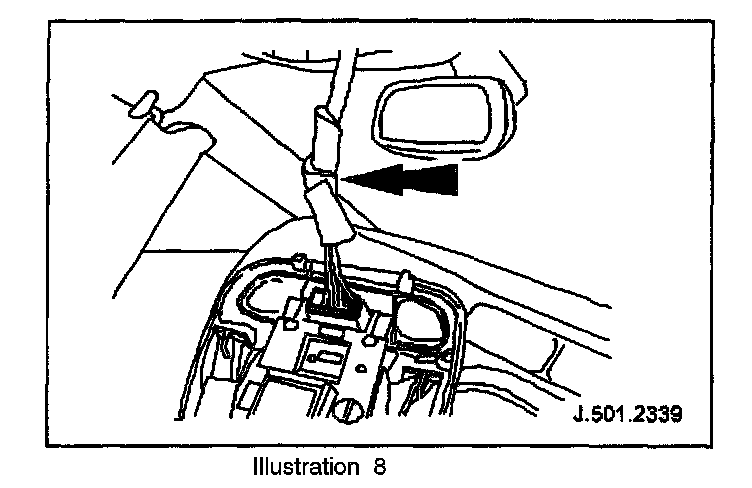

^ Foam wrap the looms. (Illustration 8 and 9)
Affected VIN Range
C00689 to C30484
Instrument Panel Trinket Tray
Description
Rattle/buzz from the lower driver side IP. May also be perceived as a register or door rattle.
Root Cause
Drivers side stowage bin is loose in the aperture. (Illustration 10)
Action
Ensure the clips are providing maximum retention and modify if necessary. Apply foam in the area highlighted. (Illustration 11)
Affected VIN Range
C00689 to C25191
