Campaign - Headlamp Power Wash Jet Link Replacement
XT501-S940DATE 06/03
X-TYPE
MODEL
2002-03 MY X-TYPE
VIN
C00294-D29054
Headlamp Washer Jet Cover Pivot Link - Change Of Specification - Service Action S940
Issue:
On vehicles fitted with headlamp power wash, there has been a high incidence of headlamp washer jet cover loss; caused by the detachment of the link that attaches the jet telescope to the washer jet cover.
Action:
At the next available opportunity replace the link on all 2002-03 MY X-TYPE vehicles, within the above VIN range, that are equipped with headlamp power wash.
Note:
This Service Action covers the replacement of the link only. Should the headlamp washer jet covers be missing, please refer to Technical Bulletin: XT501-09. No claims for the headlamp washer jet covers will be covered under this Service Action.
WORKSHOP PROCEDURE
Working on first headlamp power wash jet:
1. Grip headlamp power wash jet cover with fingers and slowly pull headlamp power wash jet out to its operating position.
2. Remove the cover of the headlamp power-wash jet from the link.

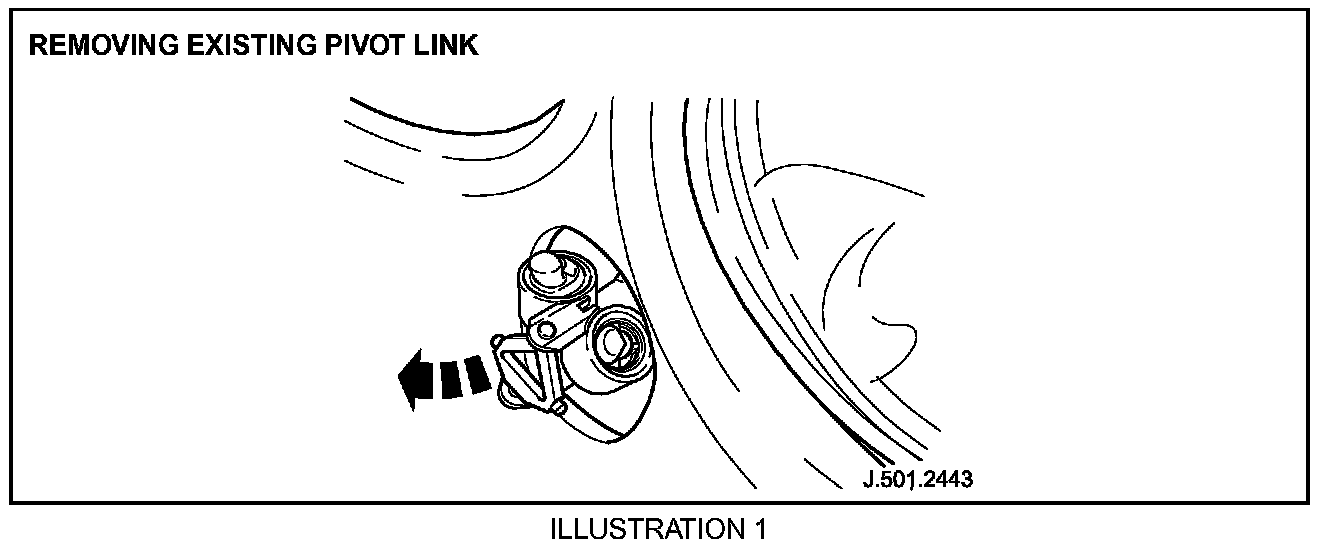

3. Remove the link from headlamp power-wash jet. (Illustration 1)

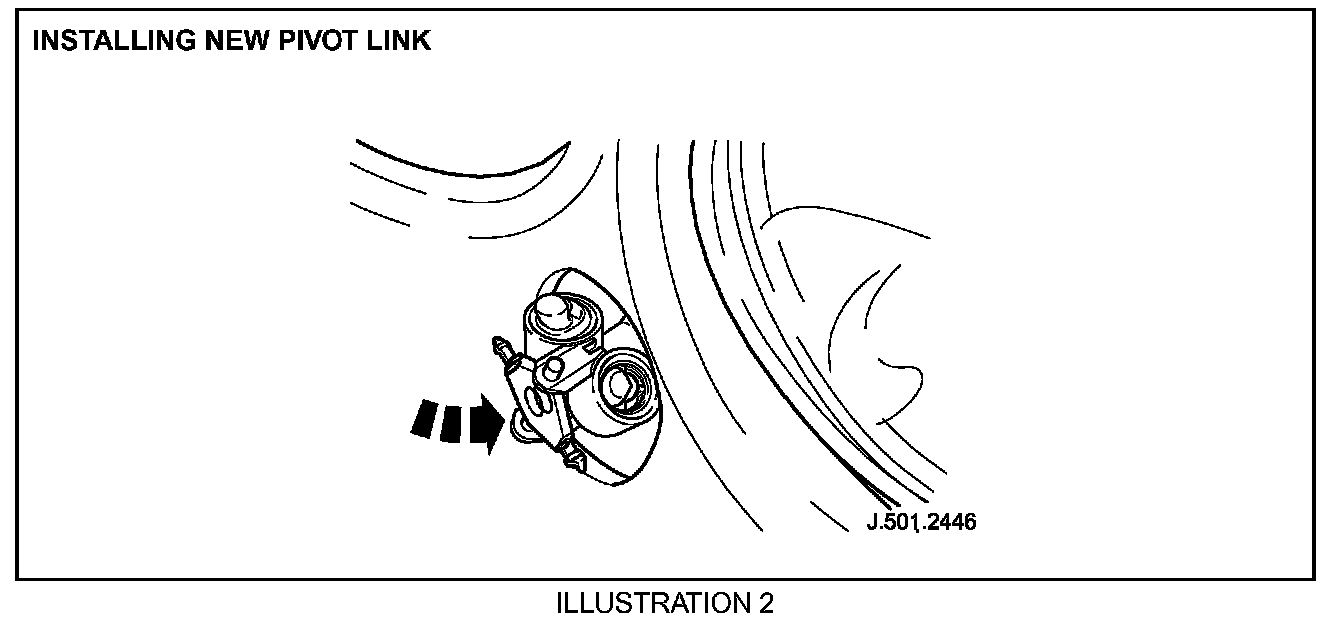

4. Install and seat new link to headlamp power-wash jet (Illustration 2).
Note:
New link pegs are offset lowermost when installed for correct seating of cover to bumper.

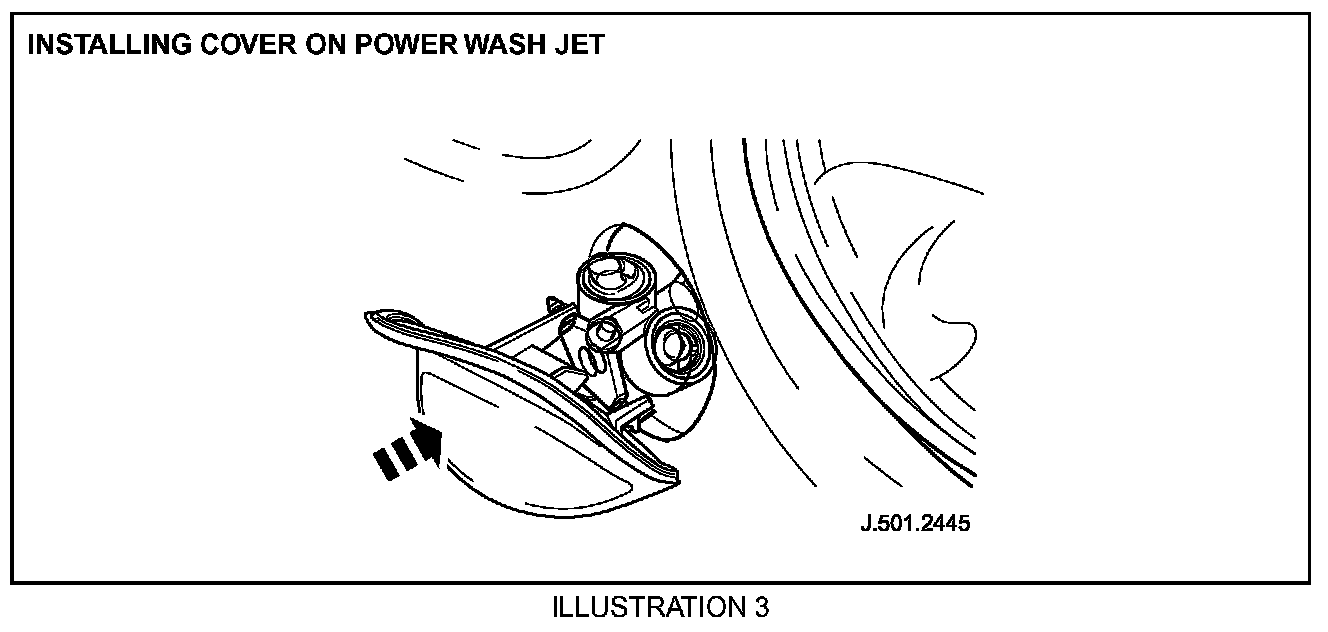

5. Install power wash jet cover to new link (Illustration 3).
Note:
Power-wash jet covers are marked on the rear face left hand or right hand.
6. Slowly release headlamp power wash jet to its retracted position.
7. Repeat steps 1 to 6 to install remaining headlamp power-wash jet link.
Parts Information:
DESCRIPTION PART NUMBER QTY
Link C2S30434 1 per side
Warranty Information:

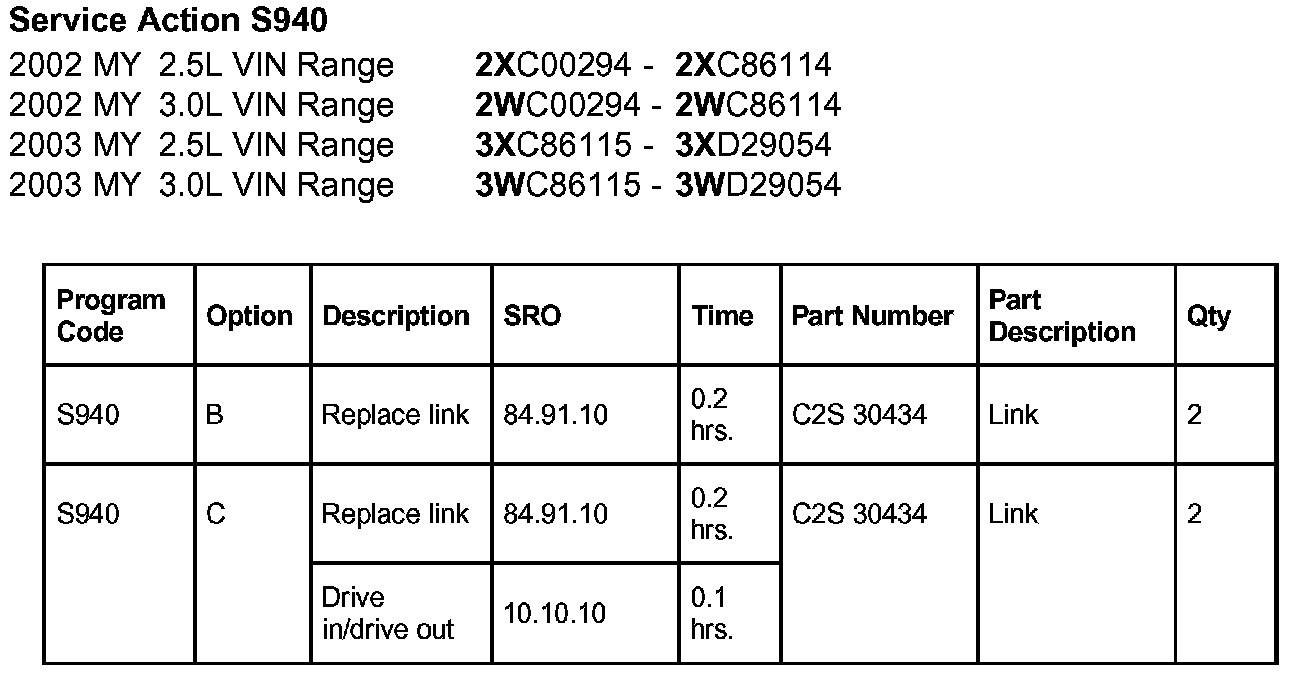

Warranty claims should be submitted quoting program code S940 together with the relevant option code from the table.
This will result in payment of the stated time and, where applicable the relevant parts/miscellaneous expense codes.
The options that allow for drive in/drive out can only be claimed when the vehicle has been brought into the workshop for this action alone to be undertaken.
The SROs and parts listed above have been included for information only There will be no requirement to enter the parts or SROs onto the claim.
Note:
Always review a Vehicle's Claim History within DDW first to determine whether this service action has been previously performed on a specific vehicle. The "Review Claim History" function will display a list of claims against the vehicle. If this service action appears in the program code field, do not perform this service action.
