Washer Fluid Level Switch: Service and Repair

Removal
1. Remove the wheel and tire.

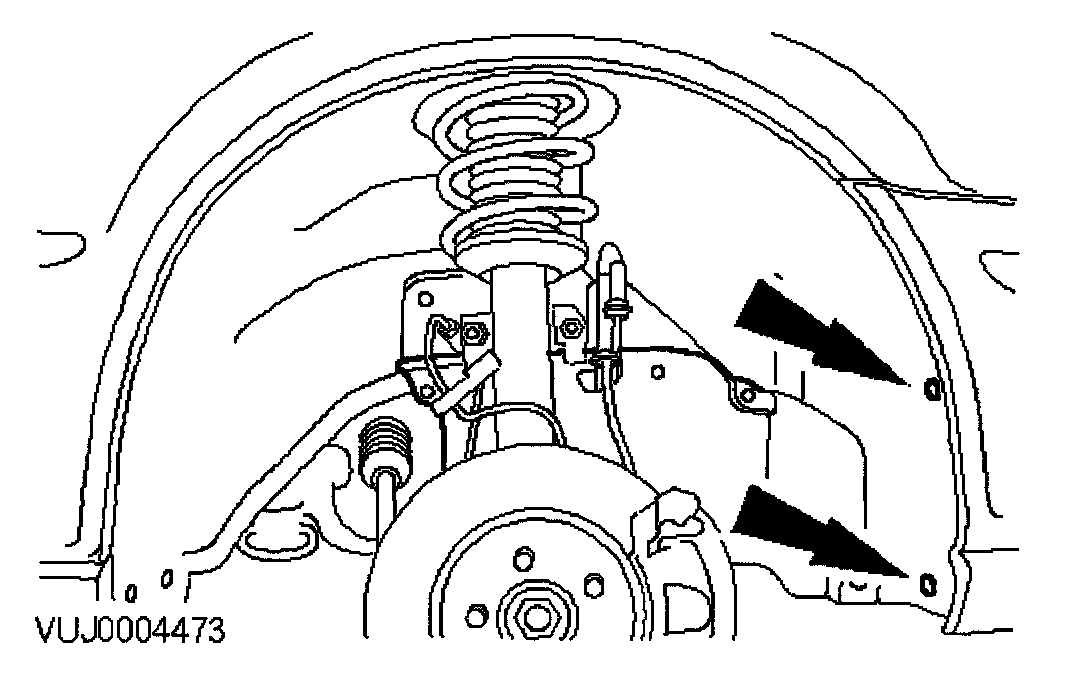

2. Detach the wheel arch liner.





3. Remove the reservoir fluid level switch.

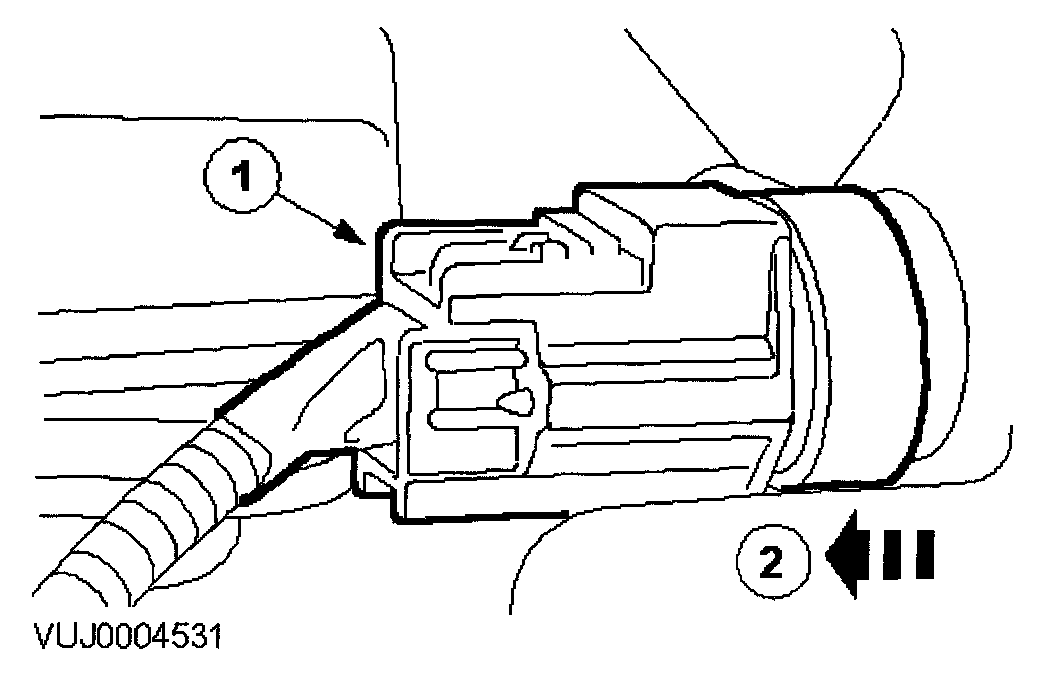

1. Disconnect the reservoir fluid level electrical connector.
2. Remove the reservoir fluid level switch.


Installation
1. To install, reverse the removal procedure.
