Windshield Washer Pump: Service and Repair

Windshield Washer Pump

Removal

1. Remove the wheel and tire.

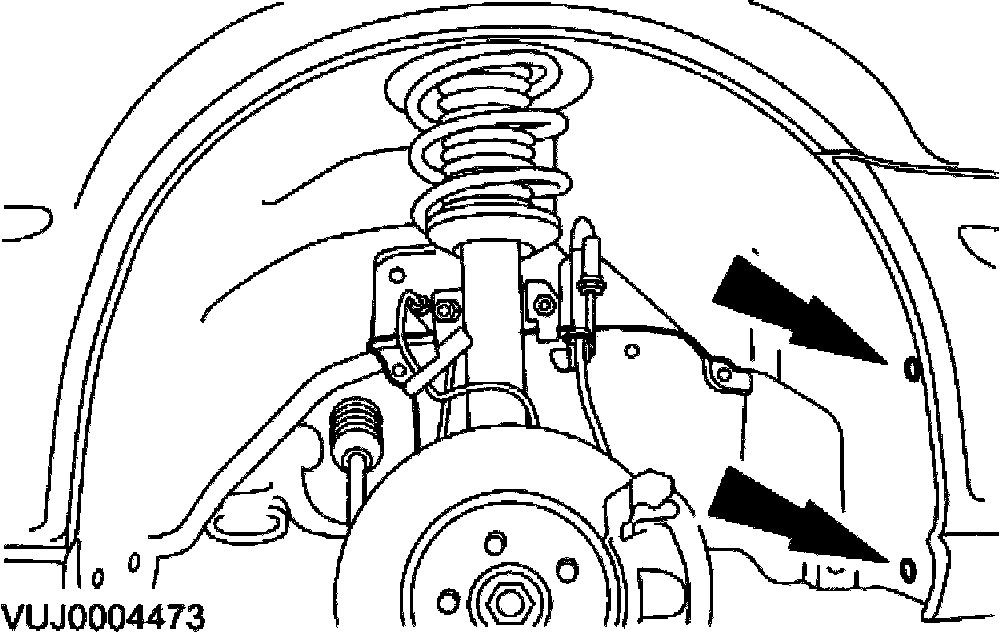

2. Detach the wheel arch liner.

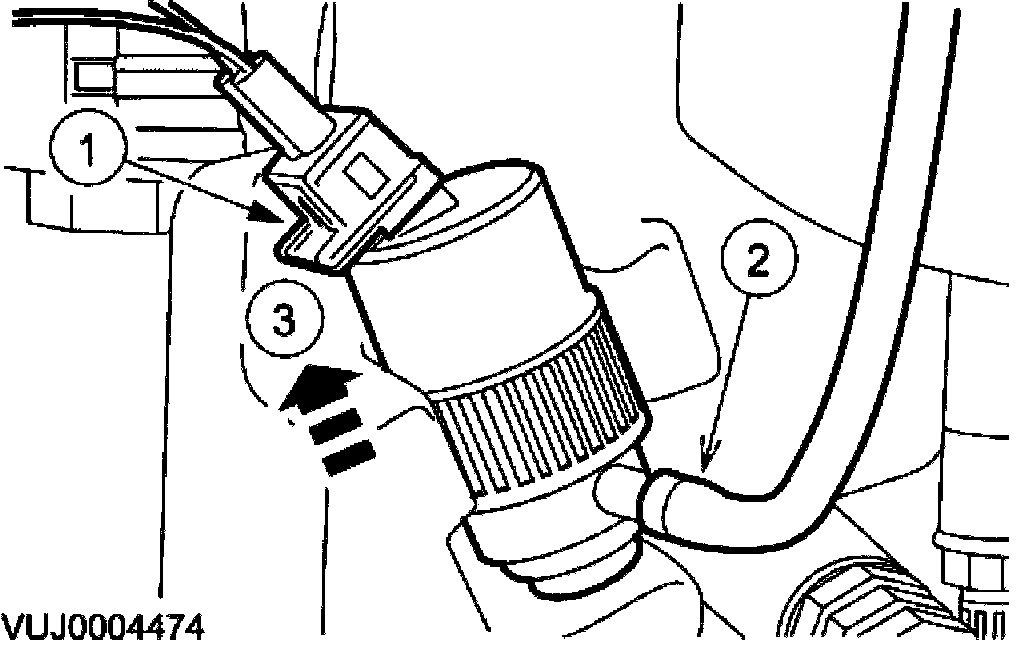

3. Remove the washer pump.
1. Disconnect the washer pump electrical connector.
2. Disconnect the washer pump supply hose.
3. Remove the washer pump.

Installation

1. To install, reverse the removal procedure.
