Wiper Motor Linkage: Service and Repair

Removal
1. Remove the plenum cover. Service and Repair

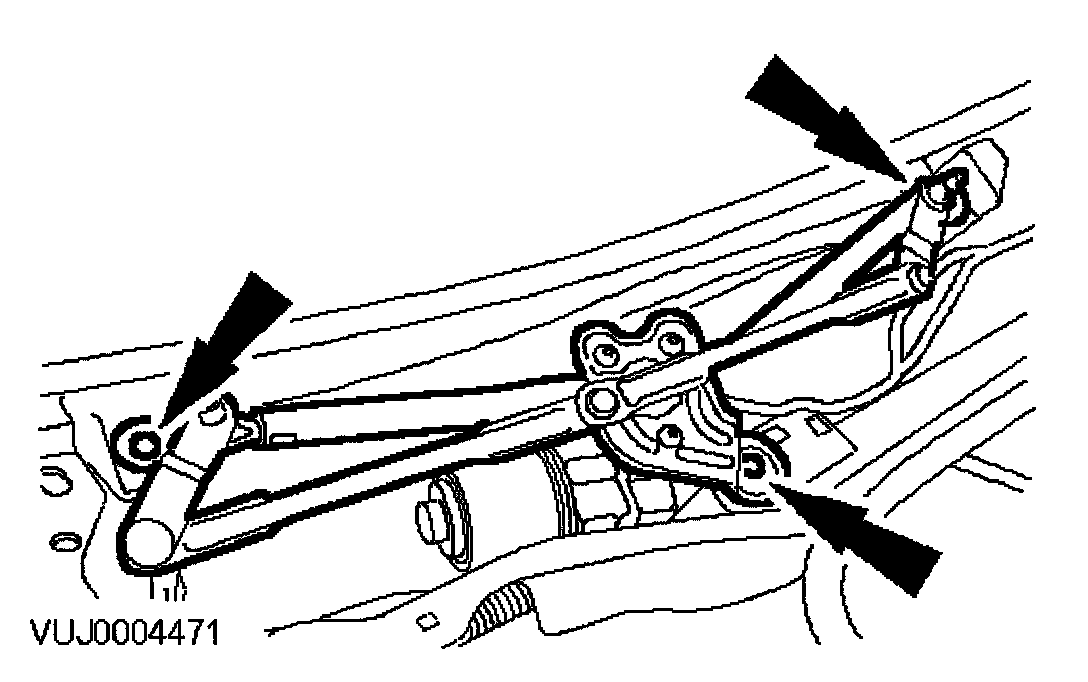

2. Detach the mounting arm and pivot shaft assembly.

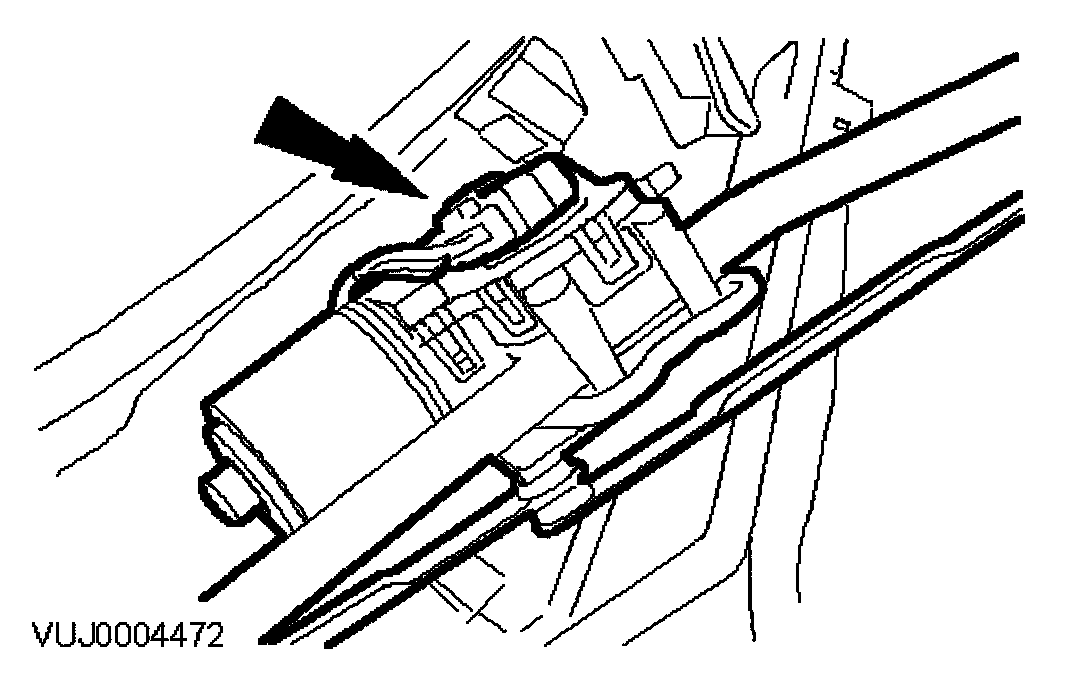

3. Remove the mounting arm and pivot shaft assembly.


Installation





1. To install, reverse the removal procedure.
- Tighten to 8 Nm.
