Wiper Motor: Service and Repair

Windshield Wiper Motor

Removal

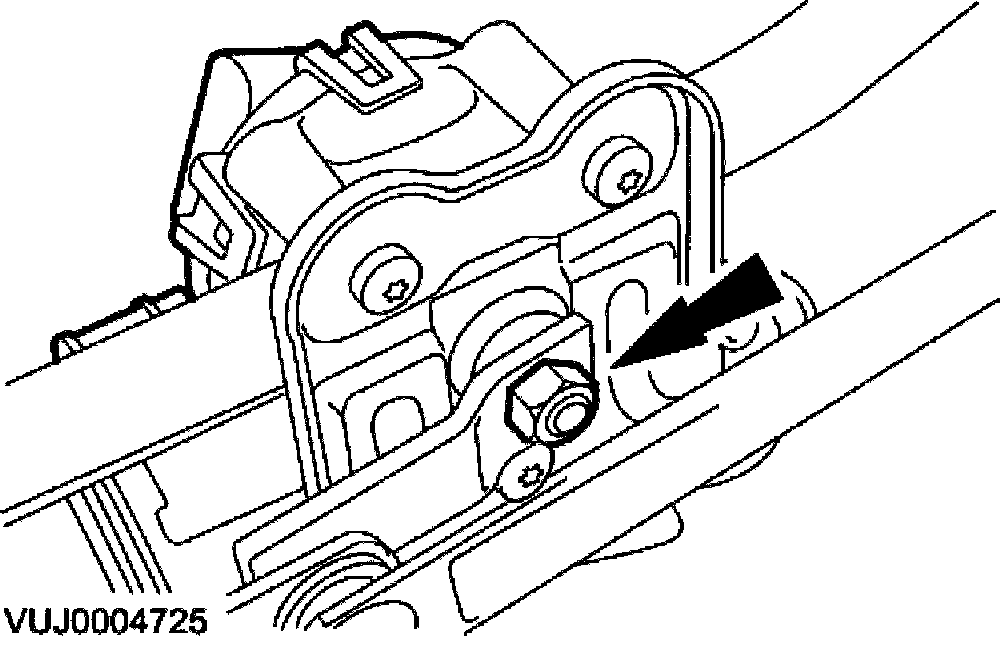

1. Remove the mounting arm and pivot shaft assembly.

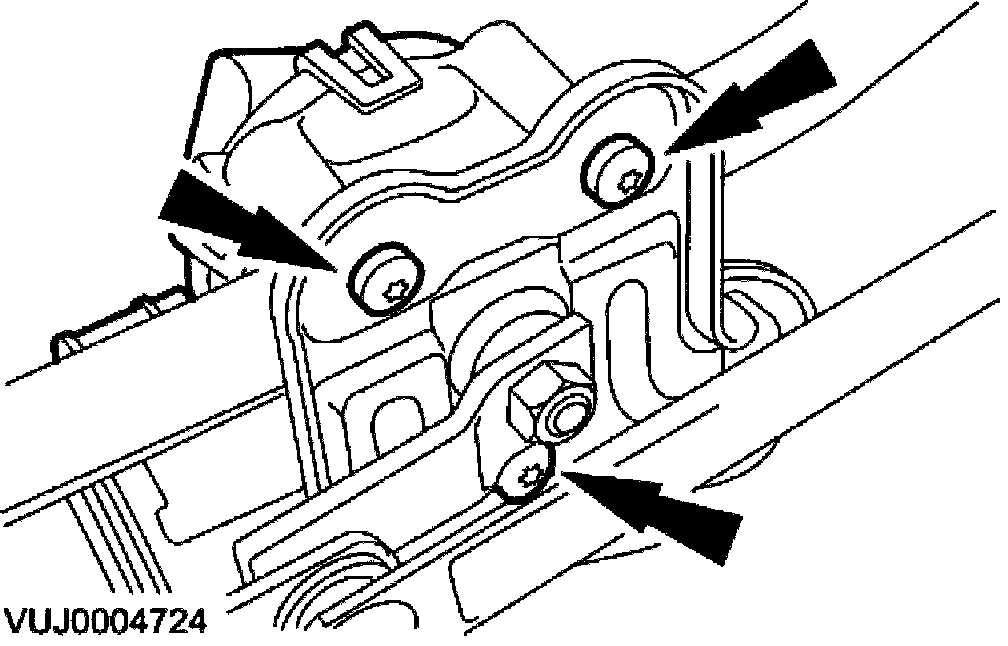

2. Remove the wiper motor.

Installation

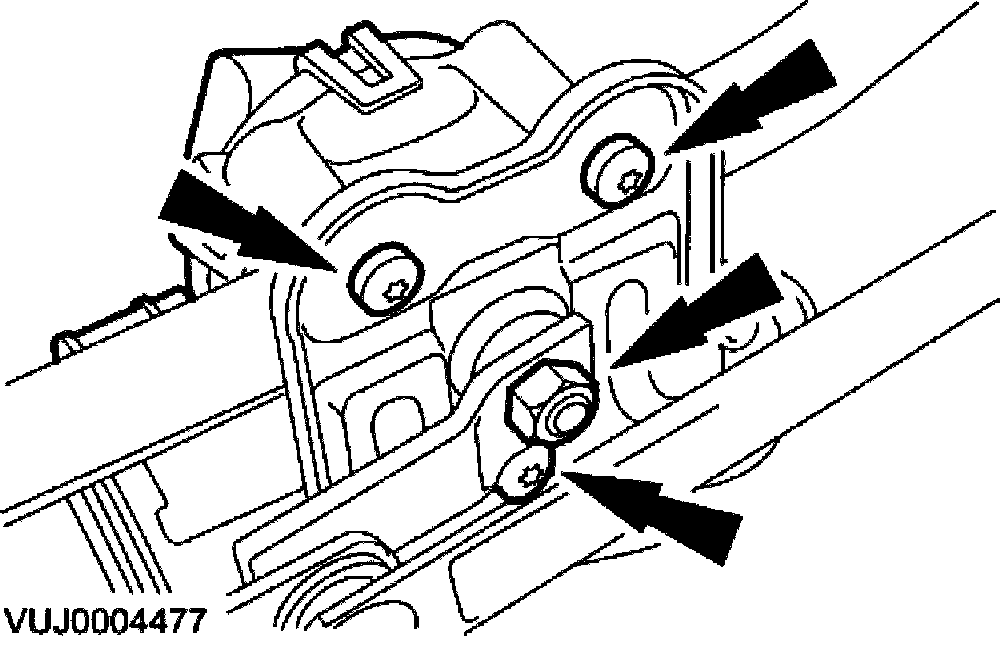

1. To install, reverse the removal procedure.
- Tighten to 8 Nm.







2. Tighten to 18 Nm.
