Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2002
>>
XJR (X308) V8-4.0L SC (AJ27)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

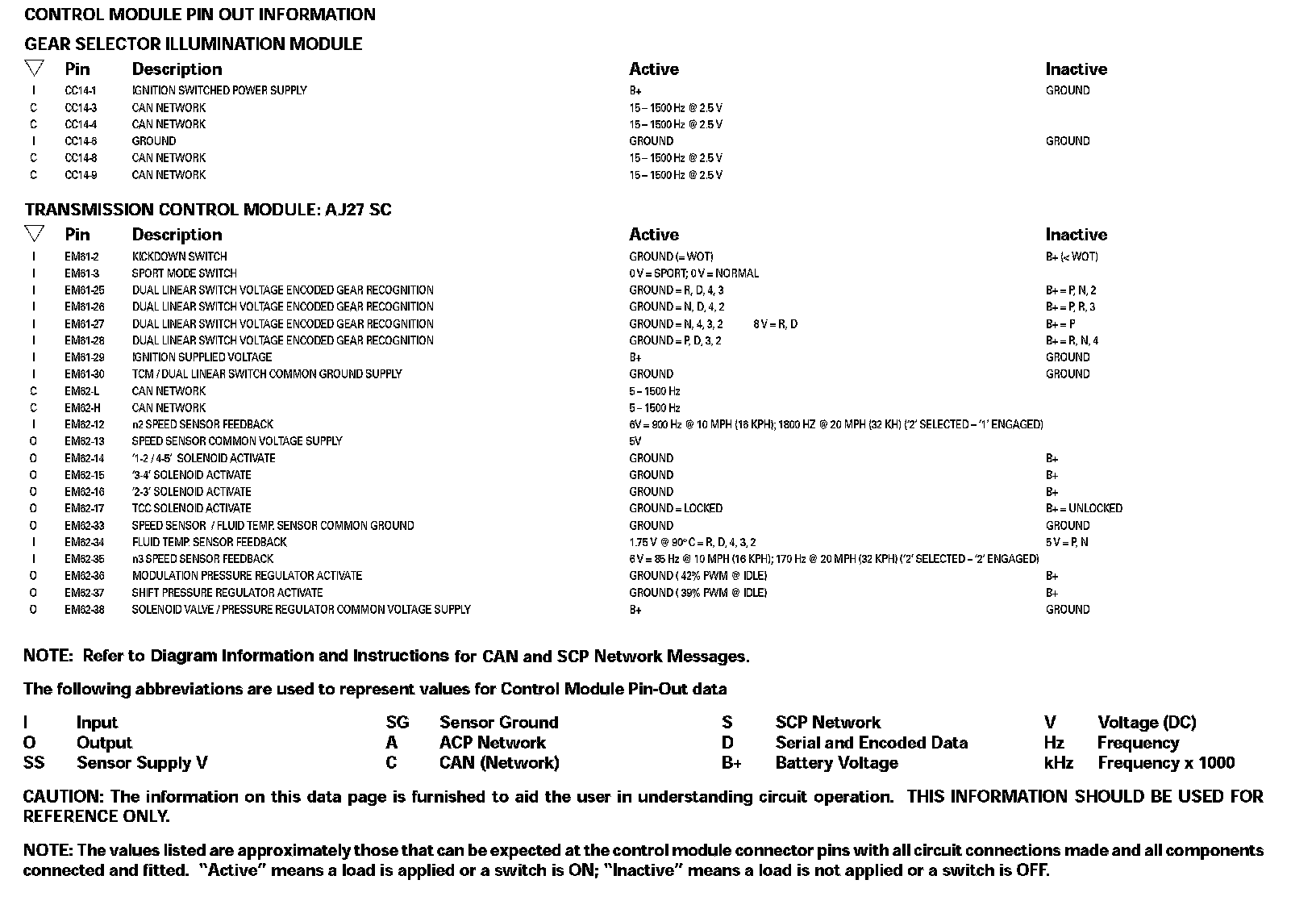

TRANSMISSION CONTROL MODULE: AJ27 SC:
Control Module Pin Out Information:
