Clock: Service and Repair

Clock

Removal
1. Disconnect battery ground cable.
2. Remove fascia center vent assembly.

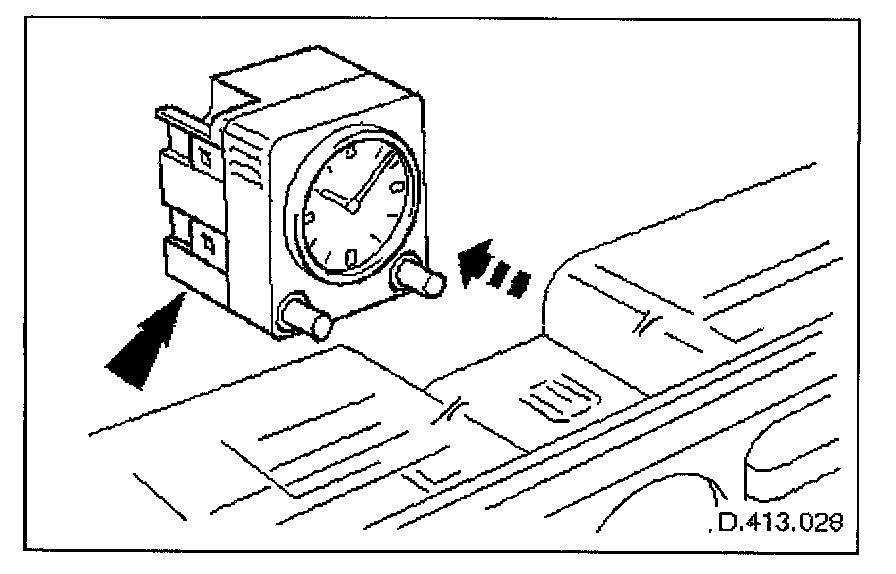

3. Remove clock from fascia center vent assembly.
- Displace clock retaining tangs and remove clock.

Installation
1. Installation is reverse of removal.
