Circuit Diagrams (Extracts Only)

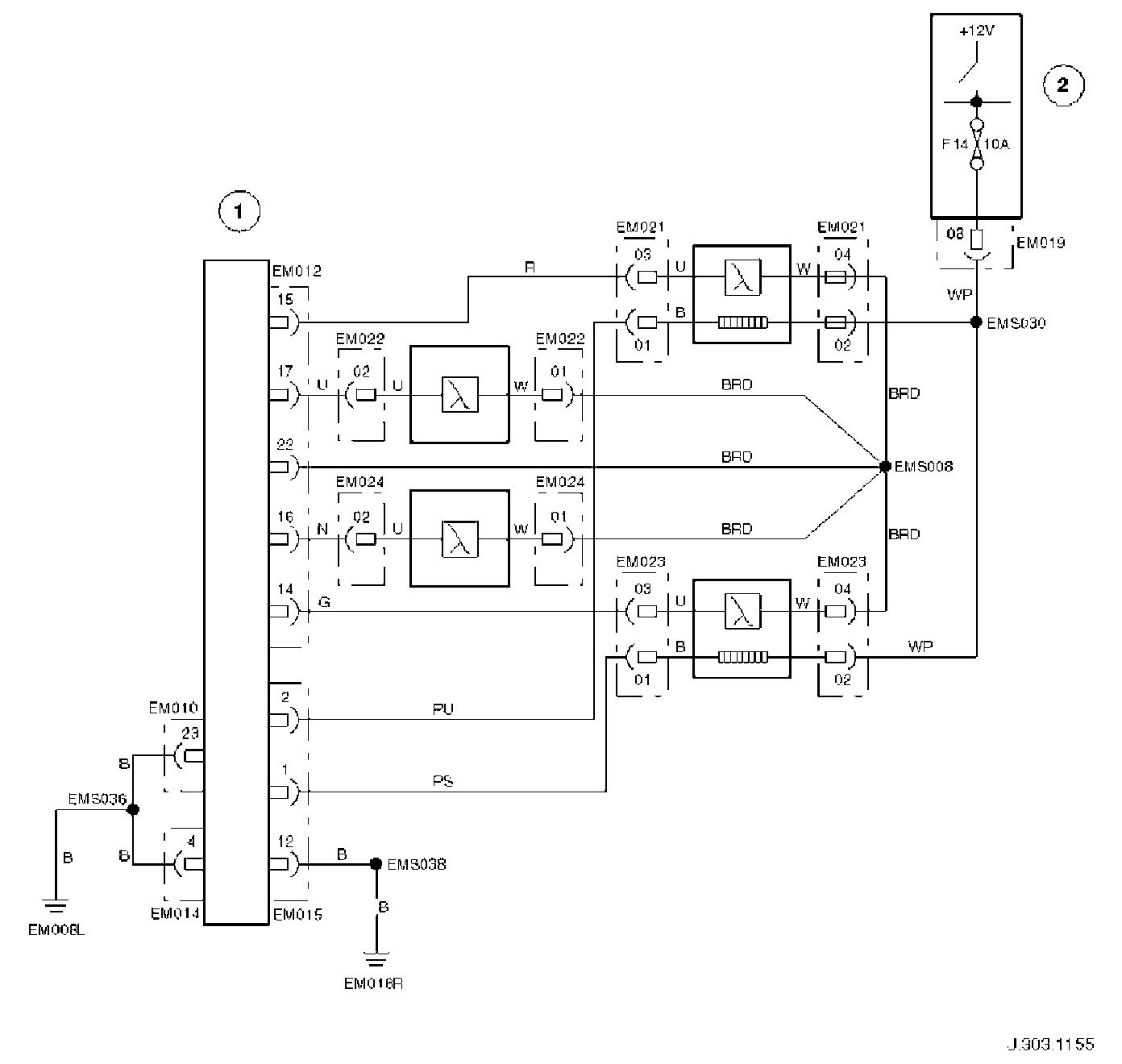

Circuit Diagram, O2 Sensors / ECM







Item Description

1 ECM
2 Downstream oxygen sensor (A)
3 Upstream heated oxygen sensor (A)
4 Downstream oxygen sensor (B)
5 Upstream heated oxygen sensor (B)
6 Engine management fuse box
