Fig 010.2




Door Mirrors: Movement, Fold-Back

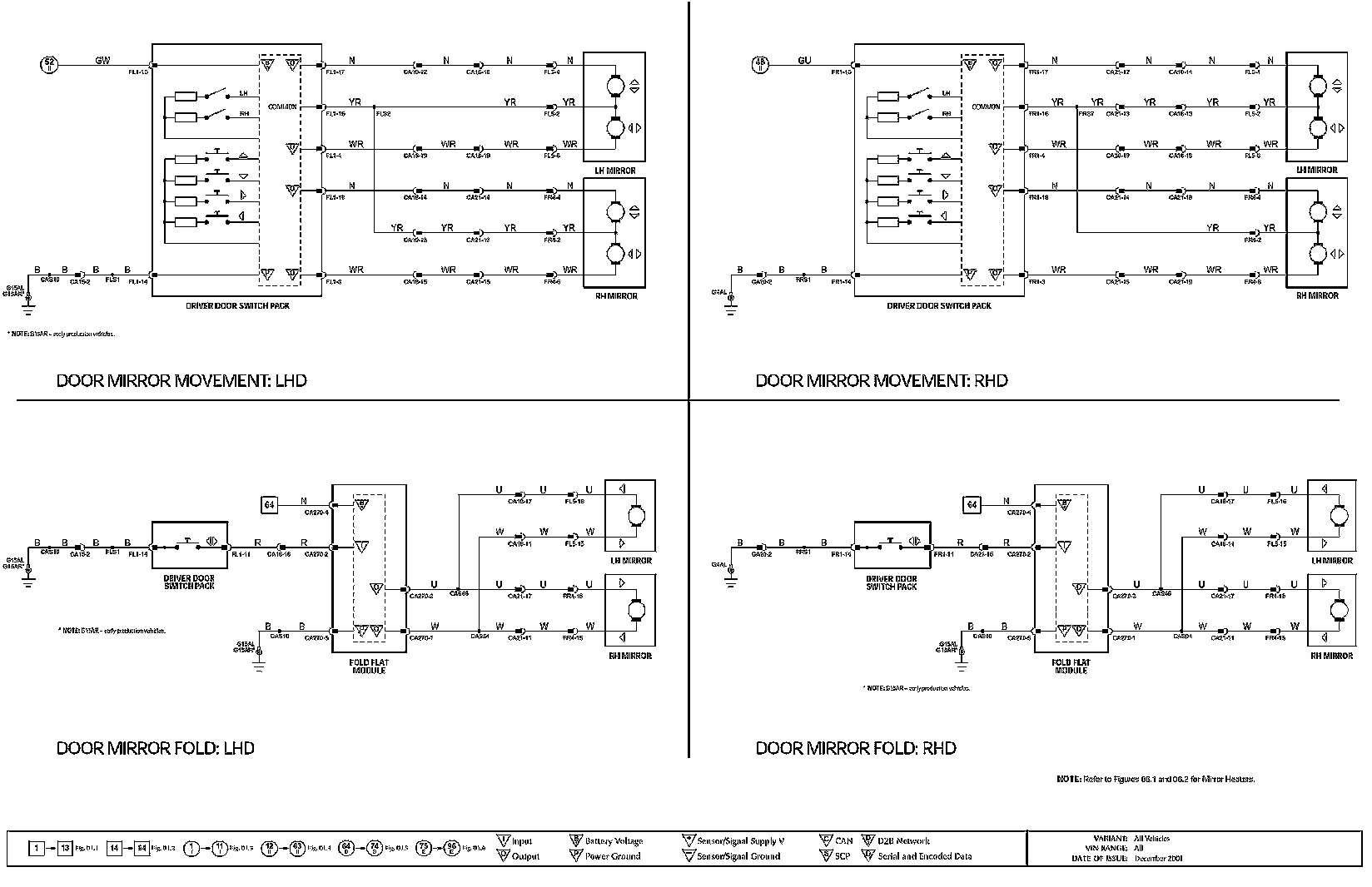

Wiring Diagram:

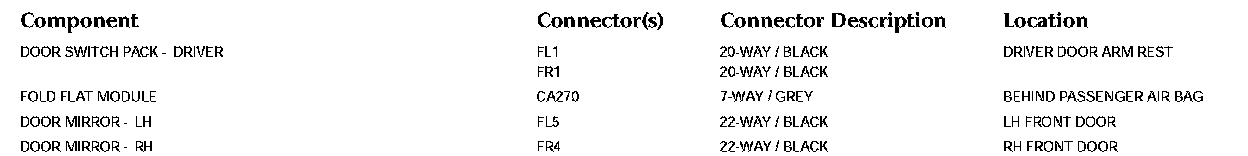

Components:

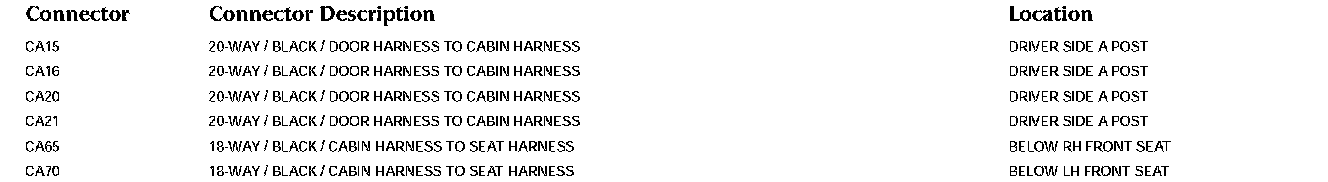

Harness In-line Connectors:






Grounds:
