Fig 011.1




Powered Seats: 8-Way Movement

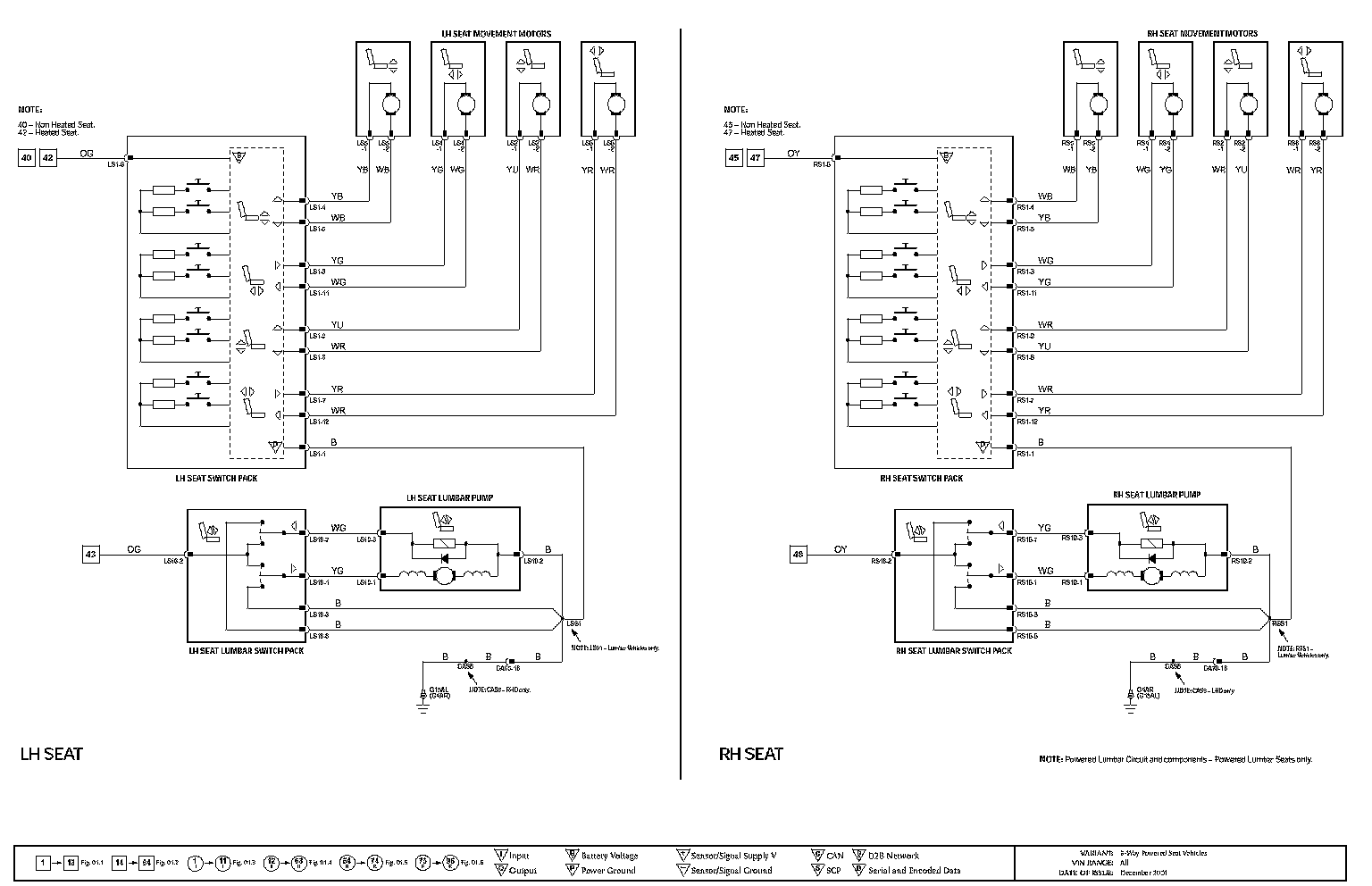

Wiring Diagram:

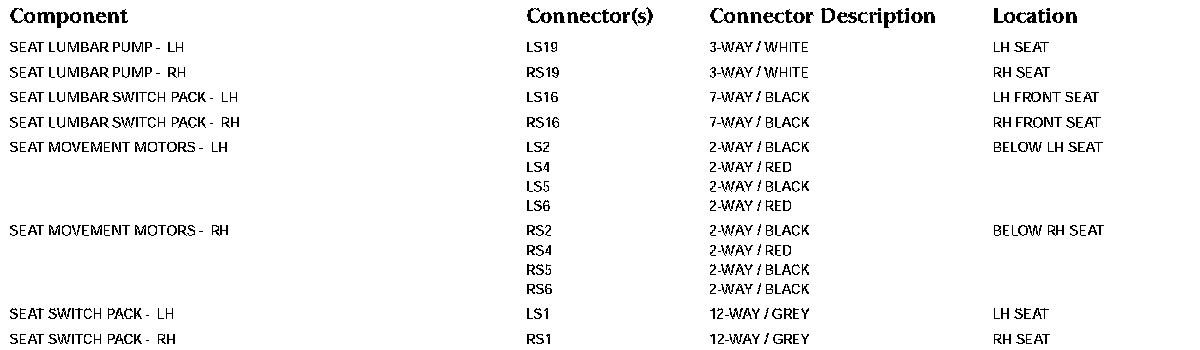

Components:






Harness In-line Connectors:

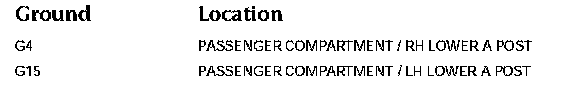

Grounds:
