Fig 011.2




Powered Seats: 2-Way Movement

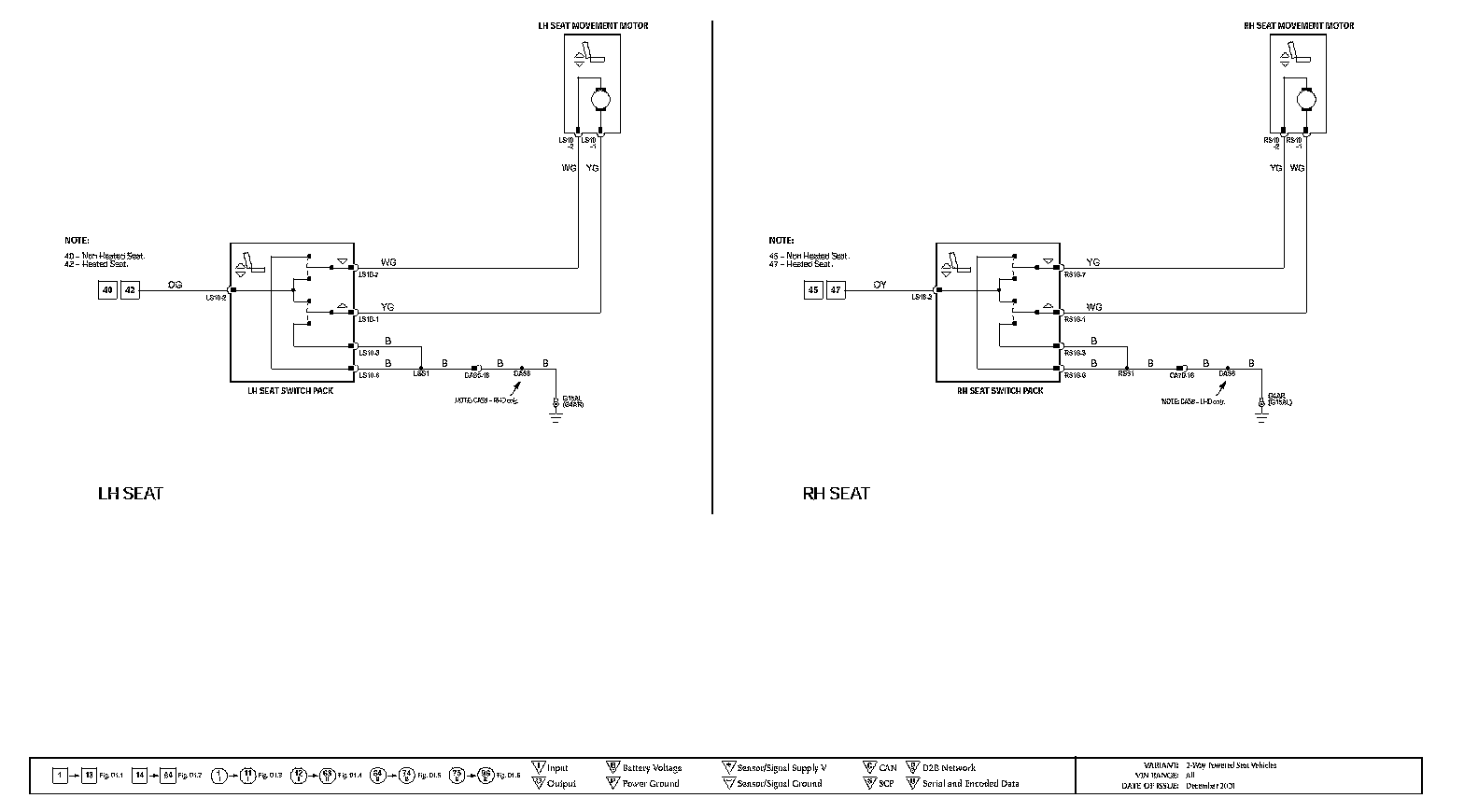

Wiring Diagram:

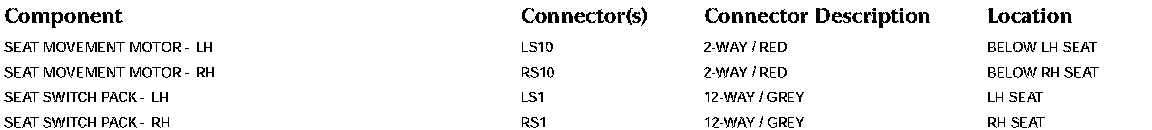

Components:






Harness In-Line Connectors:






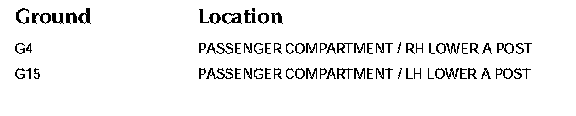

Grounds:
