Fig 012.1




Central Door Locking: Double Locking


Wiring Diagram:






Control Module Pin-out Information:

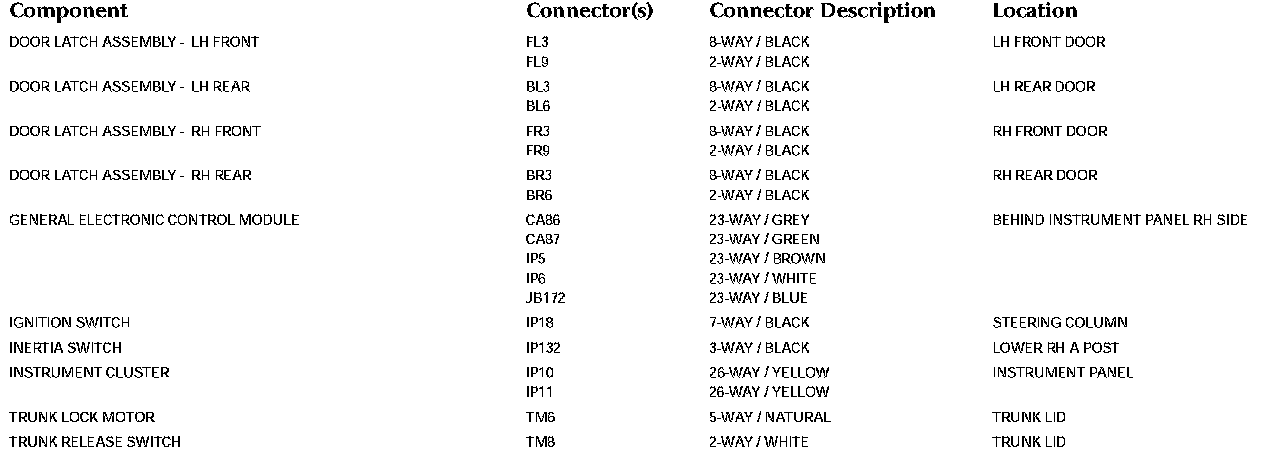

Components:

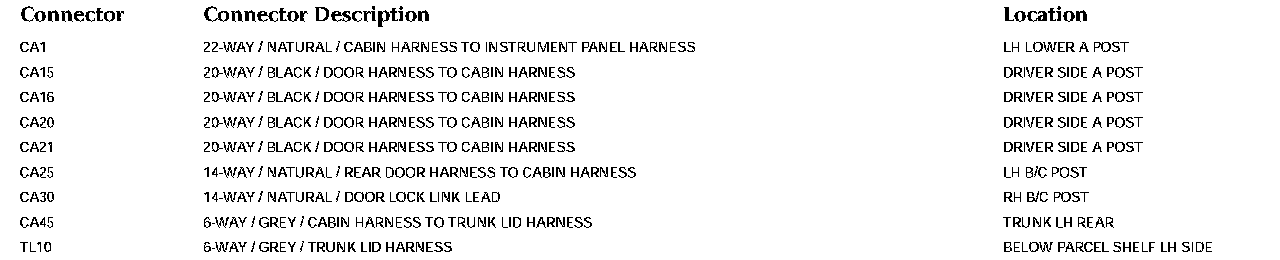

Harness In-line Connectors:

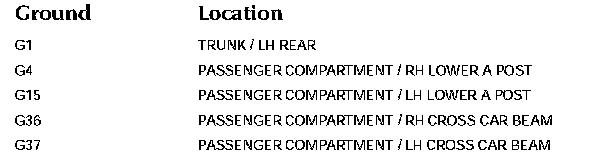

Grounds:
